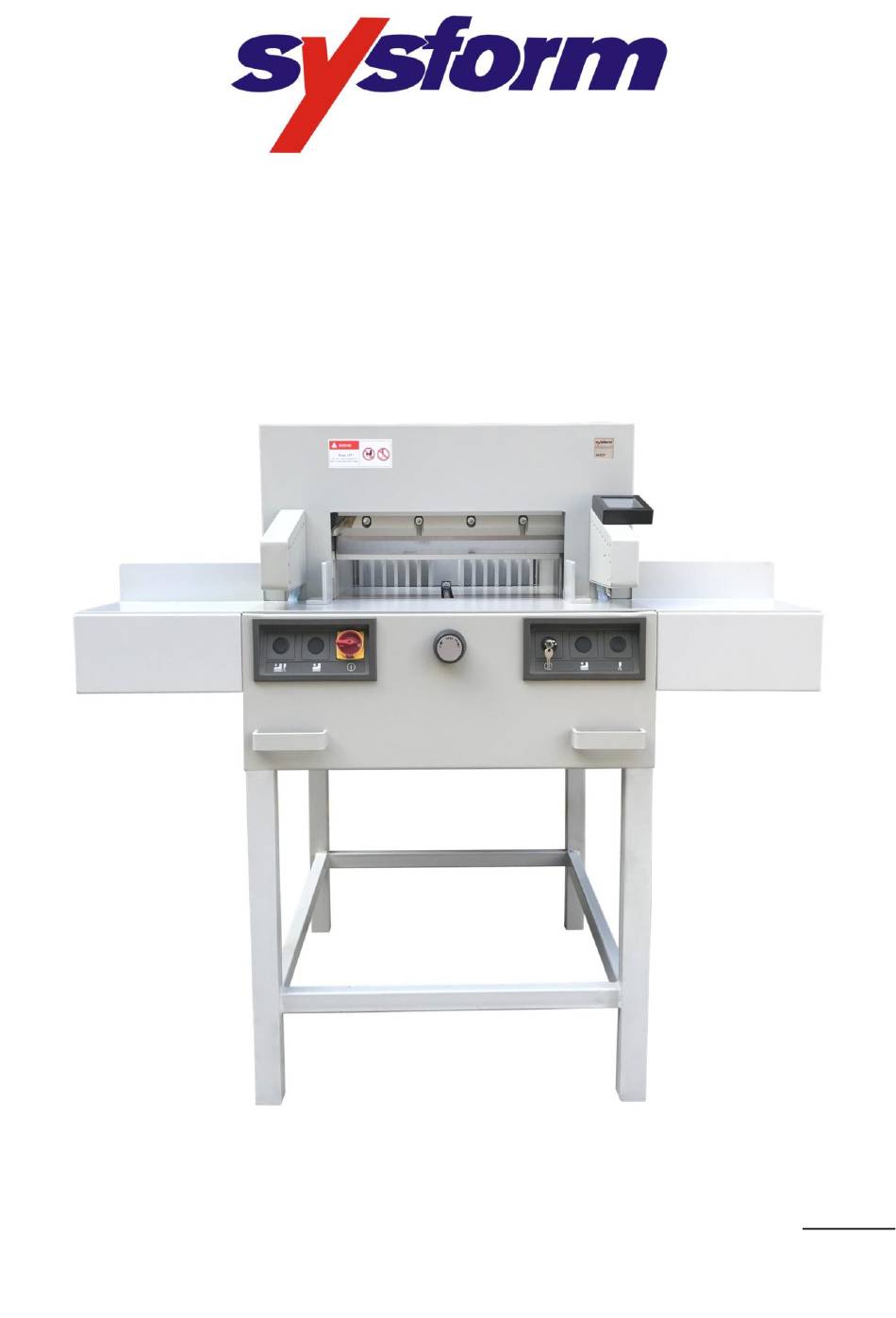

EP480 / EP660 Guillotine
Operation Manual
Revision: 21/01/22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EP480 and is the answer not in the manual?

Questions and answers

Related Manuals for SYSFORM EP480

Summary of Contents for SYSFORM EP480

  • Page 1 EP480 / EP660 Guillotine Operation Manual Revision: 21/01/22...

  • Page 3: Table Of Contents

    Index 1. Safety Rules …………………………………………………………………………………………………………………… 2. Specifications …………………………………………………………………….……………..…………………………… 3. Name Plate ……………………………………………………………………………….……………………………………. 4. Accessories ……………………………………………………………………………………………………………………. 5. Key Components ……………………………………………………………………….…………………………………. 6. Control Panel And Function Keys ……………………………………..………..………..……………..7. Reset The Back Gauge …………………………………………………………….……………………..……… 8. Cutting Procedure …………………………………………………………………………….………………………… 8.1 Manual Cut ……………………………………………………………………………..……..……………………….. 8.2 Repeat Cut ……………………………………..………………………………………….…..……..………..

  • Page 4: Safety Rules

    1. Safety Rules The machine has many safety features which make it a safe to operate. Regardless of your experience, safety instructions must be read carefully, completely understood, and applied to your daily work habits. If you do not understand or are confused by certain safety instructions presented in this manual, discuss them with your supervisor.
  • Page 5 equipment, power must be shut off to adjustments while it is running. all circuits before any work is attempted. Individual switches must be opened and the equipment circuits tested to make sure there is no power. 7. Be sure all operators are aware of all 7.

  • Page 6: Specifications

    2. Specifications Specification EP485 EP660 Cutting Width 19.09” / 485mm 25.98” / 660mm Cutting Height 3.15” / 80mm 3.15” / 80mm Narrow Cut 0.98” / 25mm 1.38” / 35mm Power Supply 220V 50/60Hz, 20A 220V 50/60Hz, 20A Dimensions 49.61” x 30.71” x 37.8” 49.21”...
  • Page 7 4.3 Jogging Block. 4.4 Operation Manual.

  • Page 8: Key Components

    5. Key Components Safety Touch Beam Blade Switch 2-Hand 2-Hand Hand Power Switch Switch Side Wheel Switch Table (Option)

  • Page 9: Control Panel And Function Keys

    6. Control Panel and Function Keys Function Key Function UP/Back Gauge Home Down/Forward Stop/Exit...
  • Page 10 Start/Run Clear the figure on display Program Repeat Cut Calculator Eject after cut Cutting Depth and Cutting Length Calibration...

  • Page 11: 8.1 Manual Cut

    7. Reset The Back Gauge 7.1 While Machine is Off 7.1.1 Switch main power clockwise to on ”I”. 7.1.2 Insert the key into key switch. 7.1.3 Switch the key switch to on. 7.1.4 Press to reset the back gauge to home position. 7.2 While Machine is Under Operation 7.2.1 Press to reset the back gauge to home position.

  • Page 12: Eject After Cut

    8.2.3 Press to set repeat cut enable. 8.3.4 Press 2-Hand to do cutting until the sheet pile is fully cut, after cut the back gauge will go to next position automatically. 8.2.5 After 1 batch has been cut, the Back gauge will go back to 45cm position for batch cut.

  • Page 13: Select A Defined Job

    8.4.4 Click on 1 cut box then key in cutting length then press 8.4.5 Click on 2 cut box then key in cutting length then press 8.4.6 Click on 3 cut box then key in cutting length then press 8.4.7 Press to let the job start from 1 cut.

  • Page 14: Editing And Existing Job

    available. 8.5.6 Press to run the job. 8.5.7 Press to exit. 8.6 Editing an Existing Job 8.6.1 Press to get into program mode. 8.6.2 Click on the job No. box 8.6.3 Enter the job No. then press 8.6.4 Press to clear all data in the group. 8.6.5 Press to select the page which needs to be changed.

  • Page 15: Cutting Depth

    8.6.9 Press to exit. 8.7 Cutting Depth 8.7.1 Press to get into settings. 8.7.2 Press to set cutting depth. 8.7.3 Click on the box and enter the desired value then press Each movement will be 0.3mm. The figure is bigger and the cutting depth is deeper.

  • Page 16: Calculator

    8.10 Calculator In manual cut mode, a desired cutting length can be get from the calculator and shows on the input box. 8.10.1 Press to get into calculator. 8.10.2 Press after calculating, the value will show on the input box in the manual cut mode.

  • Page 17: Trouble Shooting Guide

    9. Trouble Shooting Guide 9.1 No Display Reset the circuit breaker below the main power switch. 9.2 Cutter No Function Reset the circuit breaker below the main power switch. 9.3 Clamp No Function Reset the circuit breaker below the main power switch. 10.

  • Page 18: Cutting Depth Adjustment

    10.2 Cutting Depth Adjustment 10.2.1 If the blade is not cut deep enough for clean cut. 10.2.1 Rotates the adjustment screw clockwise one turn. 10.2.2 If the blade cut onto cutting stick too deep, rotate the adjustment screw counterclockwise one turn. 11.
  • Page 19 11.2 Rotate the cam screw counterclockwise to disengage it with blade. 11.3 Bring blade half way down to let far right #5-screw exposed. 11.4 Remove screw #5. 11.5 Bring the blade up. 11.6 Remove the #2 and #4 screw which blade replacement holder handle screw is fastening.

  • Page 20: Cutting Stick Replacement

    hand switch and turn the key switch off. 11.17 Fasten screw #5 half way in. 11.18 Rotate the cam screw clockwise to let the blade cut the paper through evenly. 11.19 Fasten #2, #3, #4 and #5 screw tight and secure. 11.20 Bring the blade all the way up.
