PL-3700T Series
Installation Guide
Caution
Be sure to read the "Warning/Caution
Information" on the attached sheet before
using the product.

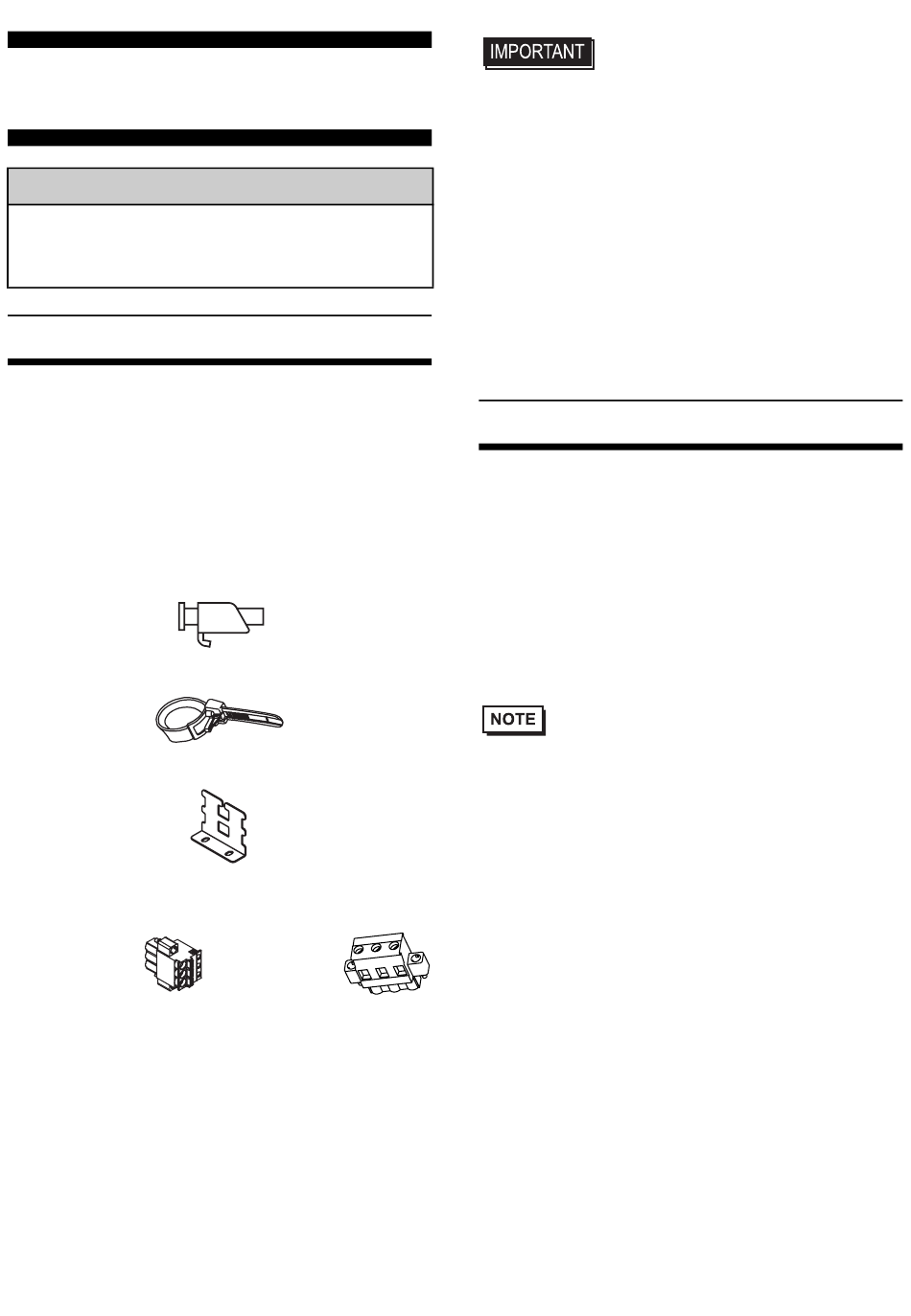

Package Contents
(1) PL Unit (1)
(2) Installation Guide (1) <This Guide>
(3) Warning/Caution Information (1)
(4) Installation Gasket (Attached to the front
module) (1)
(5) Installation Fasteners (4 fasteners per
set) (2 sets)
(6) USB Cable Clamp (2 ports) (2)
(7) USB Holder (fasteners: 1, screws: 2) (1 set)
(8) Power Connector (For AC type or DC
type) (1)
For AC type
For DC type
• Be careful when installing the PL not to
damage the built-in HDD.
This unit has been carefully packed, with
special attention to quality. However, should
you find anything damaged or missing,
please contact your local PL distributor
immediately.
When you order a PL unit built to your
specifications, that PL package should
include each optional item's Installation
Guide. Please use that guide to check the
contents of each optional item's package.
About the Manual
For the detailed information on PL series,
refer to the following manuals.
• PL3000 Series Hardware Manual
• PL3000 Series Reference Manual
• PL3000 Series API Reference Manual
Manual can be downloaded from Pro-face
Home Page.
URL http://www.pro-face.com/otasuke/
• The drivers and utilities for PL can be
downloaded from Pro-face Home Page.
1
Advertisement
Table of Contents
Related Manuals for Digital Electronics Corporation PL-3700T Series
Summary of Contents for Digital Electronics Corporation PL-3700T Series
- Page 1 PL-3700T Series • Be careful when installing the PL not to Installation Guide damage the built-in HDD. This unit has been carefully packed, with special attention to quality. However, should Caution you find anything damaged or missing, Be sure to read the “Warning/Caution please contact your local PL distributor Information”...
-
Page 2: Part Names And Functions
Part Names and Functions Front Name Description Indicates Green (lit) Normal operation (power is on) Green (blinking) Soft OFF state Power LED / System monitor error (RAS error) / RAS status lamp Orange (lit) Touch Panel Self Test Error (POWER) Orange/Red Backlight burnout is detected. - Page 3 Right side (2 slot type) Name Description F DVI-I interface (DVI-I) For analog RGB output only. Ethernet interface 10BASE-T/100BASE-TX/1000BASE-T Auto Changeover. This (LAN1) interface uses an RJ-45 type modular jack connector (8 pins). Ethernet interface 10BASE-T/100BASE-TX Auto Changeover. This interface uses (LAN2) an RJ-45 type modular jack connector (8 pins).
-
Page 4: General Specifications
Bottom (2 slot type) (2 slot type) Name Description T Fan cover System fan inside U System fan A fan for cooling the PL unit. V Power connector — W Power switch AC type only. • When attaching peripheral units to the PL, be sure the PL’s power cord is disconnected from the main power supply. -
Page 5: Environmental Specifications
Environmental Specifications Surrounding Air 0 to 50°C :without HDD Temperature 5 to 50°C :with HDD Storage Temperature -20 to +60°C 10 to 90% RH (Not condensing, wet bulb temperature: 39°C or Ambient Humidity less. Wet bulb temperature with HDD: 29°C or less.) Storage Humidity 10 to 90% RH (Not condensing, wet bulb temperature:39°C or less.) Dust... - Page 6 Internal switches of the control box (CI)RI Bottom face of the control box Switch Compatible Factory Switch Name Description Location Settings 10-point dip switch. For System Set SW1 System Set SW – System SW and the factory settings details, Set Switch System Set Switch.
- Page 7 Serial Mode Select Switch Switch Description RS-232C RS-422 RS-485 Internal setting Reserved Reserved Changes COM1’s communication RS-422/RS-485 RS-232C method Changes COM1’s communication RS-422/RS-485 RS-232C method SD (TXD) data SD (TXD) data output is NOT Changes SD (TXD) output is controlled via the data’s output mode controlled via the RS (RTS) signal.
- Page 8 Serial Mode Select Switches (SW4 to SW10) operate as shown in the circuit diagram below. SD(TXD) RT(RTS) RT(RTS) Automatic SW10 control Internal switches of the front module Rear face of the front module Switch Factory Switch Name Description Location Settings 4-point dipswitch.
-
Page 9: External Interfaces
COM1 External Interfaces RS-422 Pin # Signal Name Meaning Receive Data A(+) • This PL unit’s serial port is not isolated. Receive Data B(-) When the host (PLC) unit is also not isolated, and to reduce the risk of dam- Send Data A(+) aging the RS-232C/RS-422/RS-485 Data Terminal Ready... -
Page 10: Ras Interface
RAS Interface PL at least 50mm [1.97 in.] away from adjacent structures and other equipment. For the face to which the cable is con- nected, however, a space of 120 mm [4.72 • Be sure to use only the rated voltage in.] or more is necessary for cable curve. - Page 11 Panel Installation/uninstallation of the thickness front module and the control box 383.5 282.5 PL-3700T 1.6[0.06] to +0.04 +0.04 Series 10.0[0.39] [15.1 [11.12 (2) Confirm that the installation gasket is • To avoid an electric shock, prior to instal- attached to the PL unit and then place the lation/uninstallation of the front module PL unit into the Panel from the front.
-
Page 12: Power Cord Specifications
(4) Slide the control box in direction shown Wiring by the arrow. • To avoid an electric shock, prior to con- necting the PL unit’s power cord terminals to the power terminal block, confirm that the PL unit’s power supply is completely turned OFF, via a breaker, or similar unit. -
Page 13: Connecting The Power Cord
Power Cord Specifications Use copper conductors only. • Accompanying power supply connector is Power Cord 0.75 to 2.5mm a CA7-ACCNL-01 of Pro-face or FKC2,5/ Diameter (18 - 12 AWG) 3-STF-5,08 of Phoenix Contact. Conductor Type Simple or Stranded Wire Connecting the Power Cord 7mm [0.28in] Conductor (1) Confirm that the power is not supplied to... -
Page 14: Power Supply Cautions
(3) Strip the power cord, twist the conductor’s wire ends, insert them into the pin terminal and crimp the terminal. Attach the terminal • Use voltage and noise reducing trans- to the Power Connector. formers with capacities exceeding Power Consumption value. •... - Page 15 Common Grounding (OK) • When using two or more USB ports, be sure Other to first connect one USB cable to the lower PL unit Equipment USB connector, and then connect the sec- ond USB cable to the upper USB connector. •...
- Page 16 When building the PL unit into an end-use product, be sure to use an enclosure that satisfies standards as the Digital Electronics Corporation end-use product’s overall enclosure. 8-2-52 Nanko-higashi • The PL unit must be used indoors only.
