PL-3900T Series
Installation Guide
Caution
Be sure to read the "Warning/Caution
Information" on the attached sheet before
using the product.

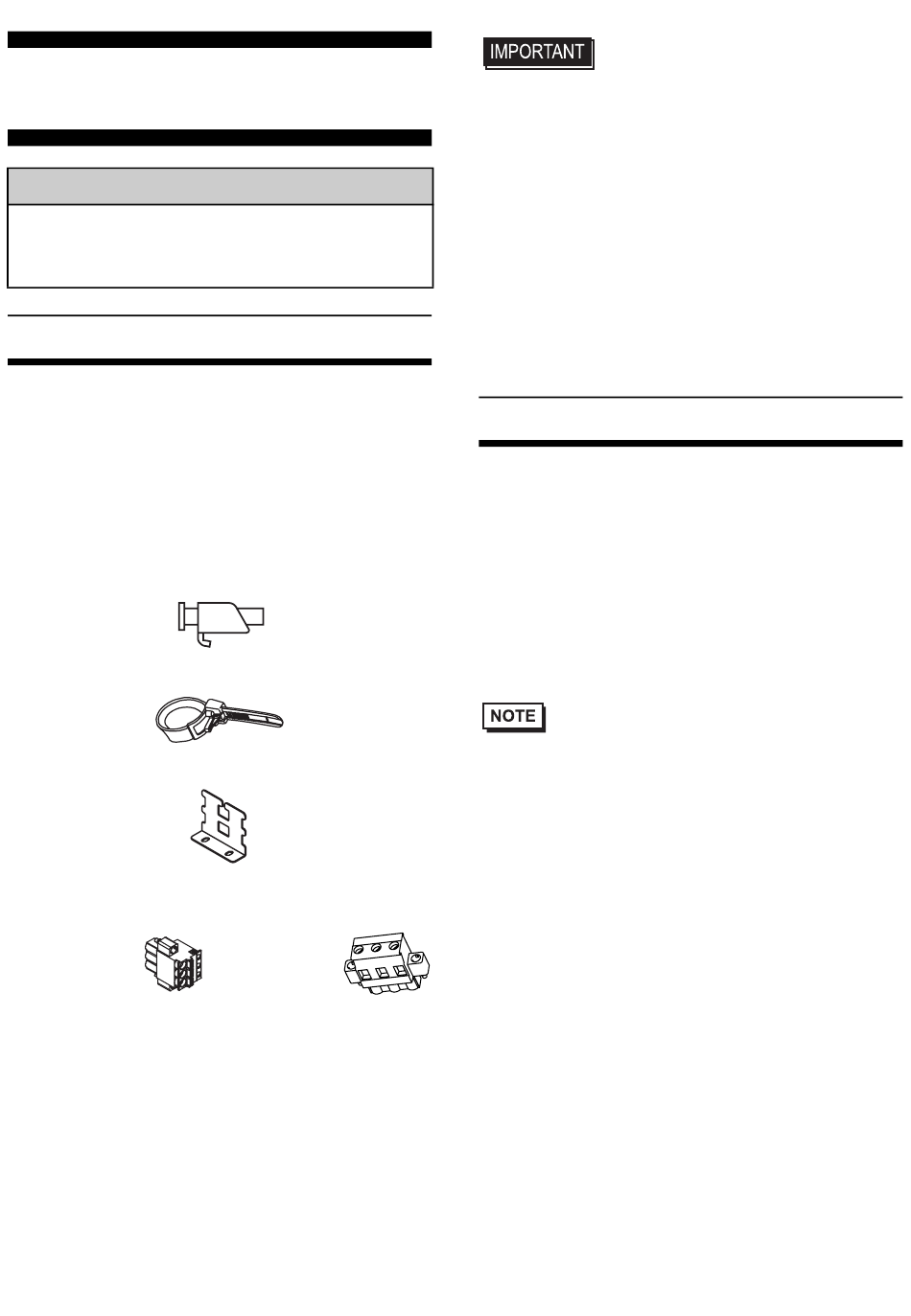

Package Contents
(1) PL Unit (1)
(2) Installation Guide (1) <This Guide>
(3) Warning/Caution Information (1)
(4) Installation Gasket (Attached to the front
module) (1)
(5) Installation Fasteners (4 fasteners per
set) (3 set)
(6) USB Cable Clamp (2 ports) (2)
(7) USB Holder (fasteners: 1, screws: 2) (1 set)
(8) Power Connector (For AC type or DC
type) (1)
For AC type
For DC type
• Be careful when installing the PL not to
damage the built-in HDD.
This unit has been carefully packed, with
special attention to quality. However, should
you find anything damaged or missing,
please contact your local PL distributor
immediately.
When you order a PL unit built to your
specifications, that PL package should
include each optional item's Installation
Guide. Please use that guide to check the
contents of each optional item's package.
About the Manual
For the detailed information on PL series,
refer to the following manuals.
• PL3000 Series Hardware Manual
• PL3000 Series Reference Manual
• PL3000 Series API Reference Manual
Manual can be downloaded from Pro-face
Home Page.
URL http://www.pro-face.com/otasuke/
• The drivers and utilities for PL can be
downloaded from Pro-face Home Page.
1
Advertisement
Table of Contents
Related Manuals for Digital Electronics Corporation PL-3900T Series
Summary of Contents for Digital Electronics Corporation PL-3900T Series
- Page 1 PL-3900T Series • Be careful when installing the PL not to Installation Guide damage the built-in HDD. This unit has been carefully packed, with special attention to quality. However, should Caution you find anything damaged or missing, please contact your local PL distributor Be sure to read the “Warning/Caution...
-
Page 2: Part Names And Functions
Part Names and Functions Front Name Description Indicates Green (lit) Normal operation (power is on) Green (blinking) Soft OFF state Power LED / System monitor error (RAS error) Orange (lit) RAS status lamp (POWER) / Touch Panel Self Test Error Orange/Red Backlight burnout is detected. - Page 3 Right side (2 slot type) Name Description F DVI-I interface (DVI-I) For analog RGB output only. Ethernet interface 10BASE-T/100BASE-TX/1000BASE-T Auto Changeover. This (LAN1) interface uses an RJ-45 type modular jack connector (8 pins). Ethernet interface 10BASE-T/100BASE-TX Auto Changeover. This interface uses (LAN2) an RJ-45 type modular jack connector (8 pins).
-
Page 4: General Specifications
Bottom (2 slot type) (2 slot type) Name Description T Fan cover System fan inside U System fan A fan for cooling the PL unit. V Power connector — W Power switch AC type only. • When attaching peripheral units to the PL, be sure the PL’s power cord is disconnected from the main power supply. -
Page 5: Environmental Specifications
*1 When the total of the expansion slot power and the external load power exceeds 15W, the length of the allowable voltage drop will be 20ms or less. For details, refer to the chart below. (ms) Allowable Range Environmental Specifications Surrounding Air 0 to 50°C :without HDD Temperature... -
Page 6: Internal Switches
[Power Management option]-[Turn off hard disks] selection to turn the hard disk off when the unit is not being operated. A setting of 5 minutes is recommended. • Do not vibrate the hard disk continuously at the same frequency. Doing so may cause the hard disk to reduce transfer speeds or stop temporarily. - Page 7 System Set Switch Switch Factory Description Notes Settings Do not change. (Factory Internal setting. Reserved Reserved OFF setting) RAS output is a CLOSE state when Implements the the SW and the system is ON. When logical inversion Normal Normal the SW is OFF, it is the opposite. The operation for RAS Close Open...
- Page 8 Switch Description RS-232C RS-422 RS-485 Inserts Switches the RD termination (RXD) termination resistance of No termination resistance ON/OFF 220Ω between RDA and RDB. Switches the Shorts SDA and No shorting shorting of SDA and (RS-422 mode) RDA ON or OFF (RS-485 mode) Switches the Shorts SDB and...
- Page 9 Internal switches of the front module Rear face of the front module Switch Factory Switch Name Description Location Settings Touch Panel 1:ON, 2:ON, 4-point dipswitch. For Touch Panel Set SW Set SW 3:OFF, 4:OFF details, see “ Touch Panel Set SW”. 1:OFF, 2:OFF, Internal setting.
-
Page 10: External Interfaces
COM1 External Interfaces RS-422 Pin # Signal Name Meaning Receive Data A(+) • This PL unit’s serial port is not isolated. Receive Data B(-) When the host (PLC) unit is also not isolated, and to reduce the risk of dam- Send Data A(+) aging the RS-232C/RS-422/RS-485 Data Terminal Ready... -
Page 11: Ras Interface
RAS Interface Installation Requirements • For easier maintenance, operation, and improved ventilation, be sure to install the • Be sure to use only the rated voltage PL at least 50mm [1.97 in.] away from level when using pin #1 (+12V) for adjacent structures and other equipment. - Page 12 Under Panel Unit:mm[in.] Panel 4-R3[0.12] thickness Installation Fastener Tighten against Hook the board. Panel • Tightening the screws with too much thickness force can damage the PL unit. • The torque required to tighten these 419.5 352.5 PL-3900T 1.6[0.06] to screws is 0.8 N•m.
- Page 13 (4) Slide the control box in direction shown Installation/uninstallation of the by the arrow. front module and the control box • To avoid an electric shock, prior to instal- lation/uninstallation of the front module and the control box, confirm that the PL unit’s power supply is completely turned OFF, via a breaker, or similar unit.
-
Page 14: Power Cord Specifications
AI 0.75-10GY(3201288) Wiring Recommended AI 1-10RD (3200182) Pin Terminals AI 1.5-10BK (3200195) AI 2.5-12BU (3200962) Recommended CRIMPFOX ZA3 Pin Terminal • To avoid an electric shock, prior to con- (1201882) Crimp Tool necting the PL unit’s power cord terminals to the power terminal block, confirm that the PL unit’s power supply is completely •... -
Page 15: Power Supply Cautions
Power Cord Specifications (2) Loosen three screws in the center of the Use copper conductors only. Power Connector (plug). (3) Strip the power cord, twist the conductor’s Power Cord 0.75 to 2.5mm wire ends, insert them into the pin terminal Diameter (18 - 12 AWG) and crimp the terminal. -
Page 16: Grounding Cautions
• The temperature rating of field installed Exclusive Grounding conductors: 75°C only. (BEST) Other PL unit Equipment • Use voltage and noise reducing trans- formers with capacities exceeding Power Consumption value. • Branch Circuit Protective device shall be Common Grounding (OK) use for rating 20A for DC24V input device. - Page 17 • Be sure the clamp is positioned as shown To prevent the USB cable below, with the clamp pointing upwards - not to from coming off the side. This is to keep the clamp from interfer- ing with nearby connectors and their cables. Attaching the USB Cable Clamp (1) Place the PL unit face-down on a flat sur- face as shown below.
- Page 18 Please be aware that Digital Electronics Corporation shall not be held liable by the user for any damages, losses, or third party claims arising from the uses of this product. Digital Electronics Corporation 8-2-52 Nanko-higashi Suminoe-ku, Osaka 559-0031 JAPAN TEL: +81-(0)6-6613-3116 FAX: +81-(0)6-6613-5888 http://www.pro-face.com/...
