PL-3600T Series
Installation Guide
Caution
Be sure to read the "Warning/Caution
Information" on the attached sheet before
using the product.

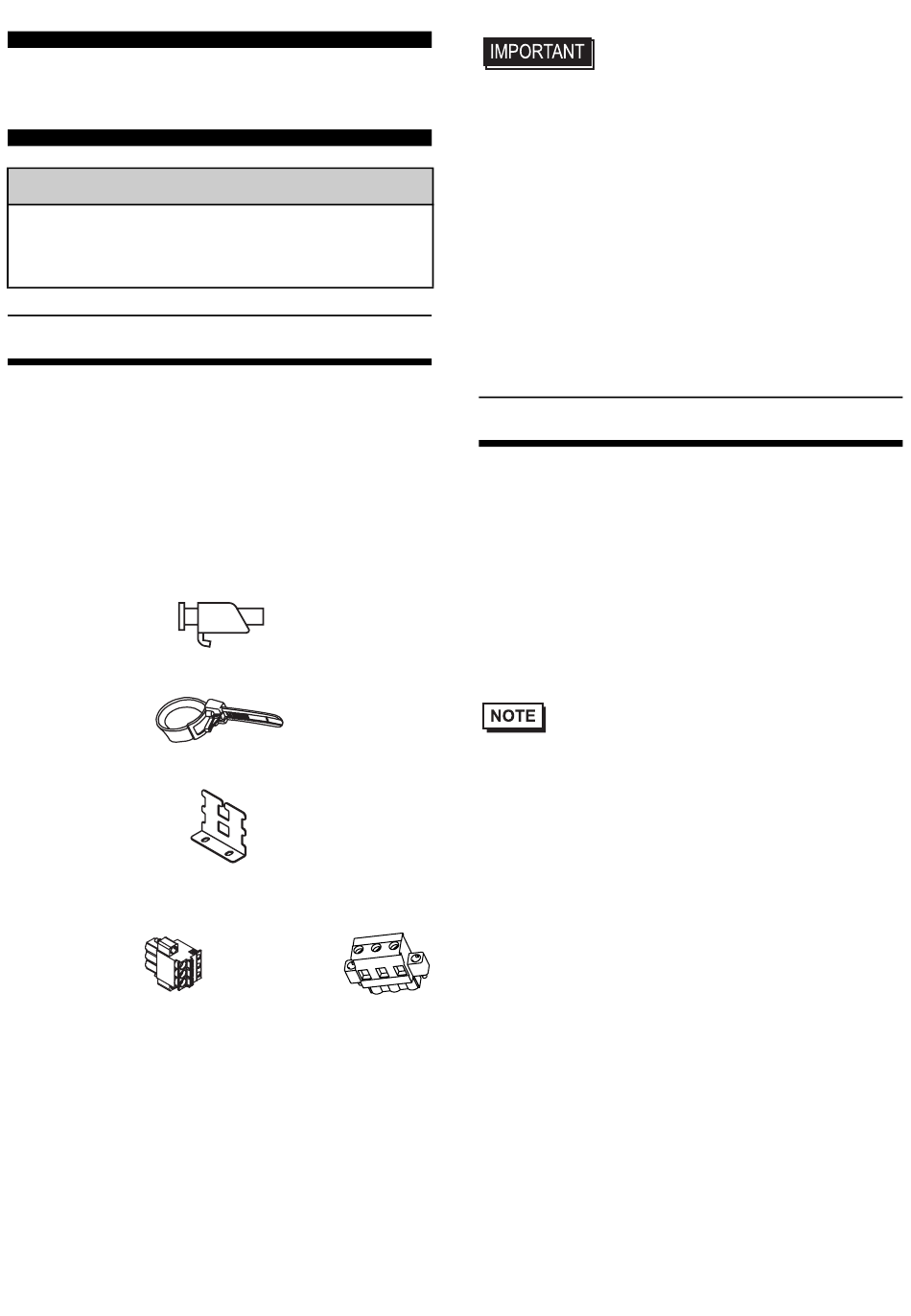

Package Contents
(1) PL Unit (1)
(2) Installation Guide (1) <This Guide>
(3) Warning/Caution Information (1)
(4) Installation Gasket (Attached to the front
module) (1)
(5) Installation Fasteners (4 fasteners per
set) (1 set)
(6) USB Cable Clamp (2 ports) (2)
(7) USB Holder (fasteners: 1, screws: 2) (1 set)
(8) Power Connector (For AC type or DC
type) (1)
For AC type
For DC type
• Be careful when installing the PL not to
damage the built-in HDD.
This unit has been carefully packed, with
special attention to quality. However, should
you find anything damaged or missing,
please contact your local PL distributor
immediately.
When you order a PL unit built to your
specifications, that PL package should
include each optional item's Installation
Guide. Please use that guide to check the
contents of each optional item's package.
About the Manual
For the detailed information on PL series,
refer to the following manuals.
• PL3000 Series Hardware Manual
• PL3000 Series Reference Manual
• PL3000 Series API Reference Manual
Manual can be downloaded from Pro-face
Home Page.
URL http://www.pro-face.com/otasuke/
• The drivers and utilities for PL can be
downloaded from Pro-face Home Page.
1
Advertisement
Table of Contents
Related Manuals for Digital Electronics Corporation PL-3600T Series
Summary of Contents for Digital Electronics Corporation PL-3600T Series
- Page 1 PL-3600T Series • Be careful when installing the PL not to Installation Guide damage the built-in HDD. This unit has been carefully packed, with special attention to quality. However, should Caution you find anything damaged or missing, please contact your local PL distributor Be sure to read the “Warning/Caution...
-
Page 2: Part Names And Functions
Part Names and Functions Front Name Description Indicates Green (lit) Normal operation (power is on) Green (blinking) Soft OFF state Power LED / System monitor error (RAS error) Orange (lit) RAS status lamp (POWER) / Touch Panel Self Test Error Orange/Red Backlight burnout is detected. - Page 3 Right side (2 slot type) Name Description F DVI-I interface (DVI-I) For analog RGB output only. Ethernet interface 10BASE-T/100BASE-TX/1000BASE-T Auto Changeover. This (LAN1) interface uses an RJ-45 type modular jack connector (8 pins). Ethernet interface 10BASE-T/100BASE-TX Auto Changeover. This interface uses (LAN2) an RJ-45 type modular jack connector (8 pins).
-
Page 4: General Specifications
Bottom (2 slot type) (2 slot type) Name Description T Fan cover System fan inside U System fan A fan for cooling the PL unit. V Power connector — W Power switch AC type only. • When attaching peripheral units to the PL, be sure the PL’s power cord is disconnected from the main power supply. -
Page 5: Environmental Specifications
*1 When the total of the expansion slot power and the external load power exceeds 35W, the length of the allowable voltage drop will be 20ms or less. For details, refer to the chart below. (ms) Allowable Range Environmental Specifications Surrounding Air 0 to 50°C :without HDD Temperature... -
Page 6: Internal Switches
[Power Management option]-[Turn off hard disks] selection to turn the hard disk off when the unit is not being operated. A setting of 5 minutes is recommended. • Do not vibrate the hard disk continuously at the same frequency. Doing so may cause the hard disk to reduce transfer speeds or stop temporarily. - Page 7 System Set Switch Switch Factory Description Notes Settings Do not change. Internal setting. Reserved Reserved OFF (Factory setting) RAS output is a CLOSE state when Implements the the SW and the system is ON. When logical inversion Normal Normal the SW is OFF, it is the opposite. The operation for RAS Close Open...
- Page 8 Switch Description RS-232C RS-422 RS-485 Inserts Switches the RD termination (RXD) termination resistance of No termination resistance ON/OFF 220Ω between RDA and RDB. Switches the Shorts SDA and No shorting shorting of SDA and (RS-422 mode) RDA ON or OFF (RS-485 mode) Switches the Shorts SDB and...
- Page 9 Internal switches of the front module Rear face of the front module Switch Factory Switch Name Description Location Settings Touch Panel 1:ON, 2:ON, 4-point dipswitch. For Touch Panel Set SW Set SW 3:OFF, 4:OFF details, see “ Touch Panel Set SW”. 1:ON, 2:ON, Internal setting.
-
Page 10: External Interfaces
COM1 External Interfaces RS-422 Pin # Signal Name Meaning Receive Data A(+) • This PL unit’s serial port is not isolated. Receive Data B(-) When the host (PLC) unit is also not isolated, and to reduce the risk of dam- Send Data A(+) aging the RS-232C/RS-422/RS-485 Data Terminal Ready... -
Page 11: Ras Interface
RAS Interface Installation Requirements • For easier maintenance, operation, and improved ventilation, be sure to install the • Be sure to use only the rated voltage PL at least 50mm [1.97 in.] away from level when using pin #1 (+12V) for adjacent structures and other equipment. - Page 12 Under Panel Unit:mm[in.] 4-R3[0.12] thickness • Tightening the screws with too much force can damage the PL unit. • The torque required to tighten these screws is 0.8 N•m. Installation/uninstallation of the Panel front module and the control box thickness 295.5 243.5 PL-3600T...
- Page 13 (3) Unscrew the four attachment screws • When the FG terminal is connected, be sure the wire is grounded. located at the top and bottom of the front module. Wiring the AC type power supply cable • When the FG terminal is connected, be sure the wire is grounded.
- Page 14 (2) Push the Opening button by a small and flat Power Connector (Plug) Specifications screw driver to open the desired pin hole. (3) Insert each pin terminal into its each hole. Release the Opening button to − clamp the pin place. Grounding Opening button AC power supply cable...
-
Page 15: Power Supply Cautions
• Do not solder the cable connection. • Be sure to ground the surge absorber (E1) separately from the PL unit (E2). Select a surge absorber that has a maxi- mum circuit voltage greater than that of the peak voltage of the power supply. (4) Attach the Power Connector (plug) to the Lightening Surge Absorber PL and fix it to the PL main unit with... - Page 16 Common Grounding (OK) • When using two or more USB ports, be sure Other to first connect one USB cable to the lower PL unit Equipment USB connector, and then connect the sec- ond USB cable to the upper USB connector. •...
- Page 17 Be aware of the following items when product. building the PL into an end-use product: • The PL unit’s rear face is not approved as Digital Electronics Corporation an enclosure. When building the PL unit into an end-use product, be sure to use an 8-2-52 Nanko-higashi...
