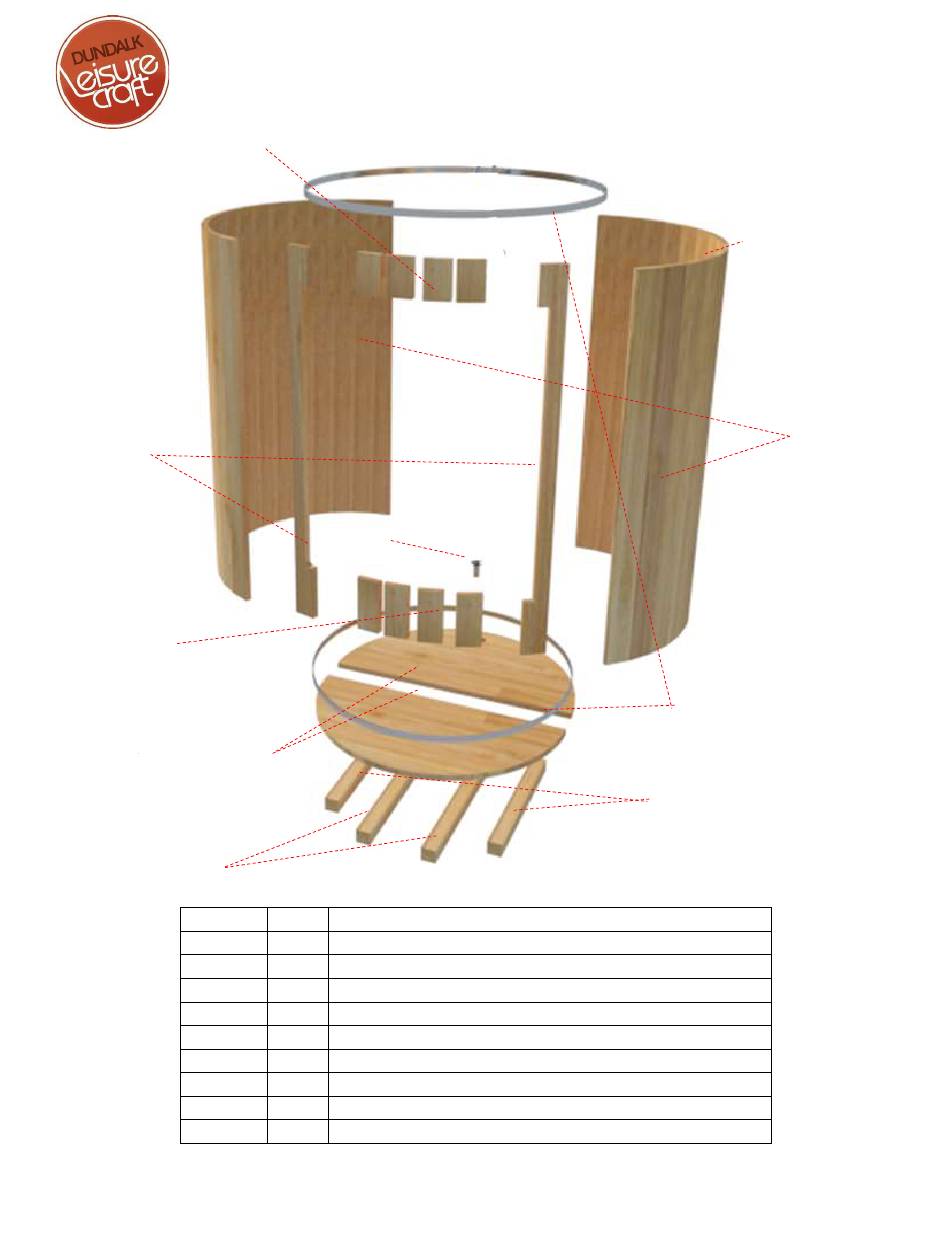

Model 580S - Rainbow Outdoor Barrel Shower
Parts Identification & Assembly Instructions
RB-07
RB-08
RB-06
RB-01
RB-02
RB-01
RB-02
RB-03
RB-04
RB-05
RB-06
RB-07
RB-08
AB-5
PL-1
Ph: 519-923-9813 | E: info@dundalkleisurecraft.com| Web: www.dundalkleisurecraft.com
PL-1
2
Shower Half Moon Floor Section
2
2
32
Standard Shower Staves
1
Narrow Shower Stave
4
Short Bottom Staves 12"
4
2
2
5' Aluminum Shower Bands with Hardware
1
Long Floor Support
Short Floor Support
Short Top Staves 8"
Door Side Staves
Shower Drain Plug
RB-05
RB-04
AB-5
RB-03
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dundalk LeisureCraft 580S
Summary of Contents for Dundalk LeisureCraft 580S
- Page 1 Model 580S - Rainbow Outdoor Barrel Shower Parts Identification & Assembly Instructions RB-07 RB-05 RB-04 RB-08 PL-1 RB-06 AB-5 RB-01 RB-03 RB-02 RB-01 Shower Half Moon Floor Section RB-02 Long Floor Support RB-03 Short Floor Support RB-04 Standard Shower Staves...
- Page 2 Model 580S - Rainbow Outdoor Barrel Shower Parts Identification & Assembly Instructions 24” 61cm 60” 152cm Optional Shower Hardware Packaging 84” x 45” x 24” 430 lbs 213cm x 114cm x 61cm 195kgs Platinum Economy Shower Shower Hardware Hardware (Hot & Cold)
- Page 3 Model 580S - Rainbow Outdoor Barrel Shower Parts Identification & Assembly Instructions 1. Using a clean and level area for assembly, place both Floor Sections (RB-01) on the level ground. RB-01 RB-01 2. Line up the Floor Sections (RB-01) and screw together in the pre drilled holes.
- Page 4 Model 580S - Rainbow Outdoor Barrel Shower Parts Identification & Assembly Instructions 5. Insert the drain into the hole in floor and tighten firmly. 6. Attach the Short Bottom Staves to the sauna floor across from where the drain plug is located..
- Page 5 Model 580S - Rainbow Outdoor Barrel Shower Parts Identification & Assembly Instructions 9. Attach the right side door stave. 10. Continue to attach staves around the shower ensuring they are tight together. Use a rubber mallet if required. 11. Attach the stave with the holes for the shower head assembly adjacent to the floor drain.
- Page 6 Model 580S - Rainbow Outdoor Barrel Shower Parts Identification & Assembly Instructions 12. Continue to attach staves around the shower ensuring they are tight together. Use a rubber mallet if required. 13. When you get to the last staves, they will be slightly bent outwards, this is normal.
- Page 7 Model 580S - Rainbow Outdoor Barrel Shower Parts Identification & Assembly Instructions 15. Fit the short top stave assembly in between the left and right door sides. 16. Secure with provided screws. 17. Carefully unwrap the aluminum shower bands. Bring the ends of the band together and connect with the threaded rod and nuts.
- Page 8 Model 580S - Rainbow Outdoor Barrel Shower Parts Identification & Assembly Instructions 18. With a helper, wrap the second band around the bottom of the shower and connect the ends in the same manner as the top band. Make sure the bands are 2” from the top and bottom all the way around the shower.
