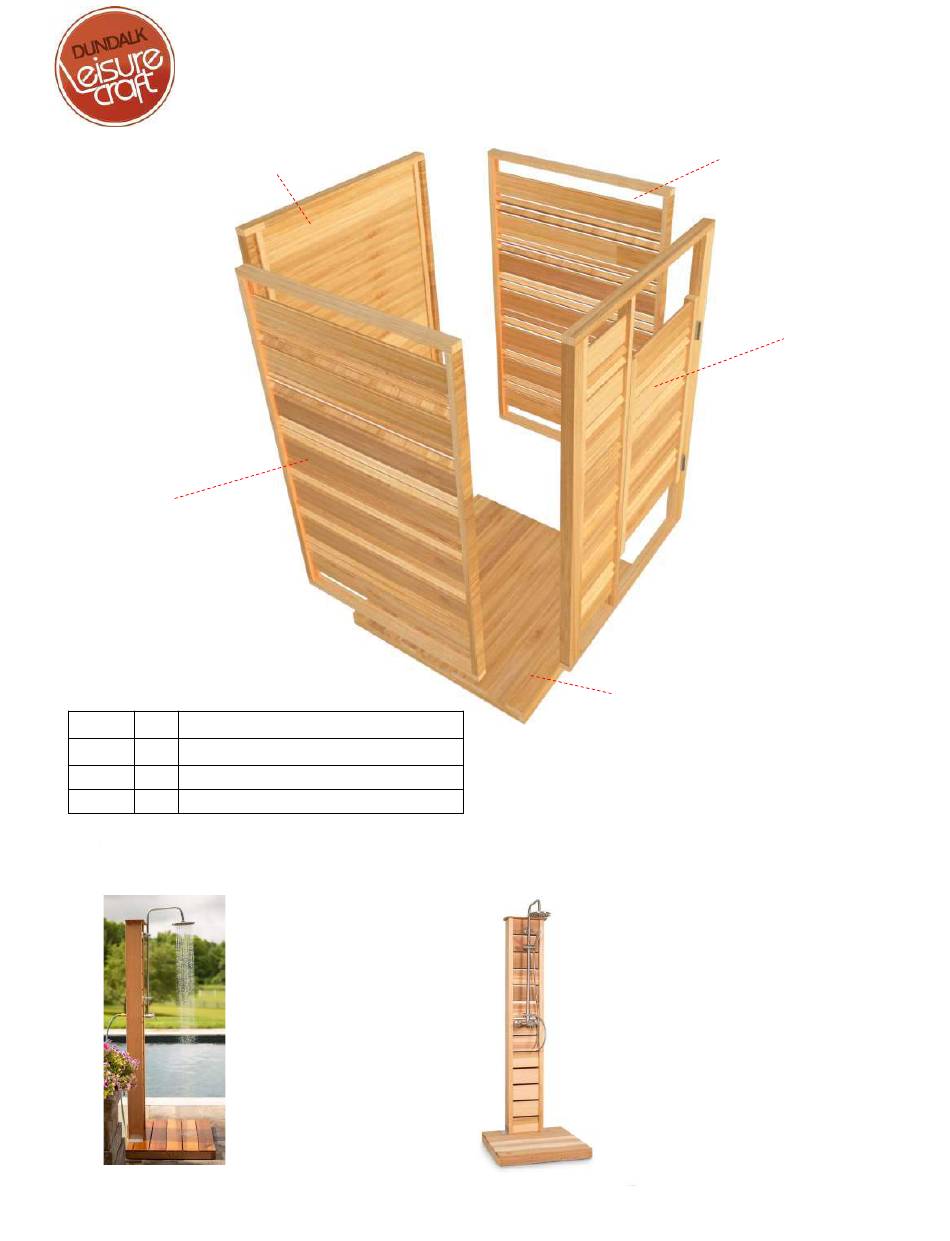

Parts Identification & Assembly Instructions
CB-03
Front Wall with Door Assembly
CB-01
1
Back Wall Assembly
CB-02
1
CB-03
2
CB-04
1
Assembled Shower Floor
Ph: 519-923-9813 | E: info@dundalkleisurecraft.com| Web: www.dundalkleisurecraft.com
Model 550S
Cloudburst Outdoor Shower
CB-02
Side Wall Assembly
Optional Shower
Hardware
Economy Shower
Hardware
(Cold water Only)
CB-03
CB-04
Platinum
Shower Hardware
(Hot & Cold)
(Full stainless steel with hand held shower)
CB-01
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dundalk LeisureCraft Cloudburst 550S
Summary of Contents for Dundalk LeisureCraft Cloudburst 550S
- Page 1 Model 550S Cloudburst Outdoor Shower Parts Identification & Assembly Instructions CB-03 CB-02 CB-01 CB-03 CB-04 Front Wall with Door Assembly CB-01 Back Wall Assembly CB-02 CB-03 Side Wall Assembly CB-04 Assembled Shower Floor Optional Shower Hardware Economy Shower Platinum Hardware Shower Hardware (Cold water Only) (Hot &...
- Page 2 Model 550S Cloudburst Outdoor Shower Parts Identification & Assembly Instructions FRONT VIEW SIDE VIEW 76cm 51cm 20” 30” 137cm 137cm 54” 54” Packaging 83” x 59” x 22” 255 lbs 211cm x 150cm x 56cm 116kgs Ph: 519-923-9813 | E: info@dundalkleisurecraft.com| Web: www.dundalkleisurecraft.com...
- Page 3 Model 550S Cloudburst Outdoor Shower Parts Identification & Assembly Instructions 1. Locate the Back Wall Assembly (CB-02) and secure to the assembled shower floor (CB-04) with provided screws as in (Fig.2) making sure back wall is flush to the shower floor. CB-02 CB-02 (Fig.2)
- Page 4 Model 550S Cloudburst Outdoor Shower Parts Identification & Assembly Instructions 3.Repeat process for the remaining side wall assembly. 4. Attach the Front Wall Assembly (CB-01) to the 2 side walls with provide screws. Secure the Front wall to the shower floor with provided screws.
