Savannah Standing Shower– CTC205

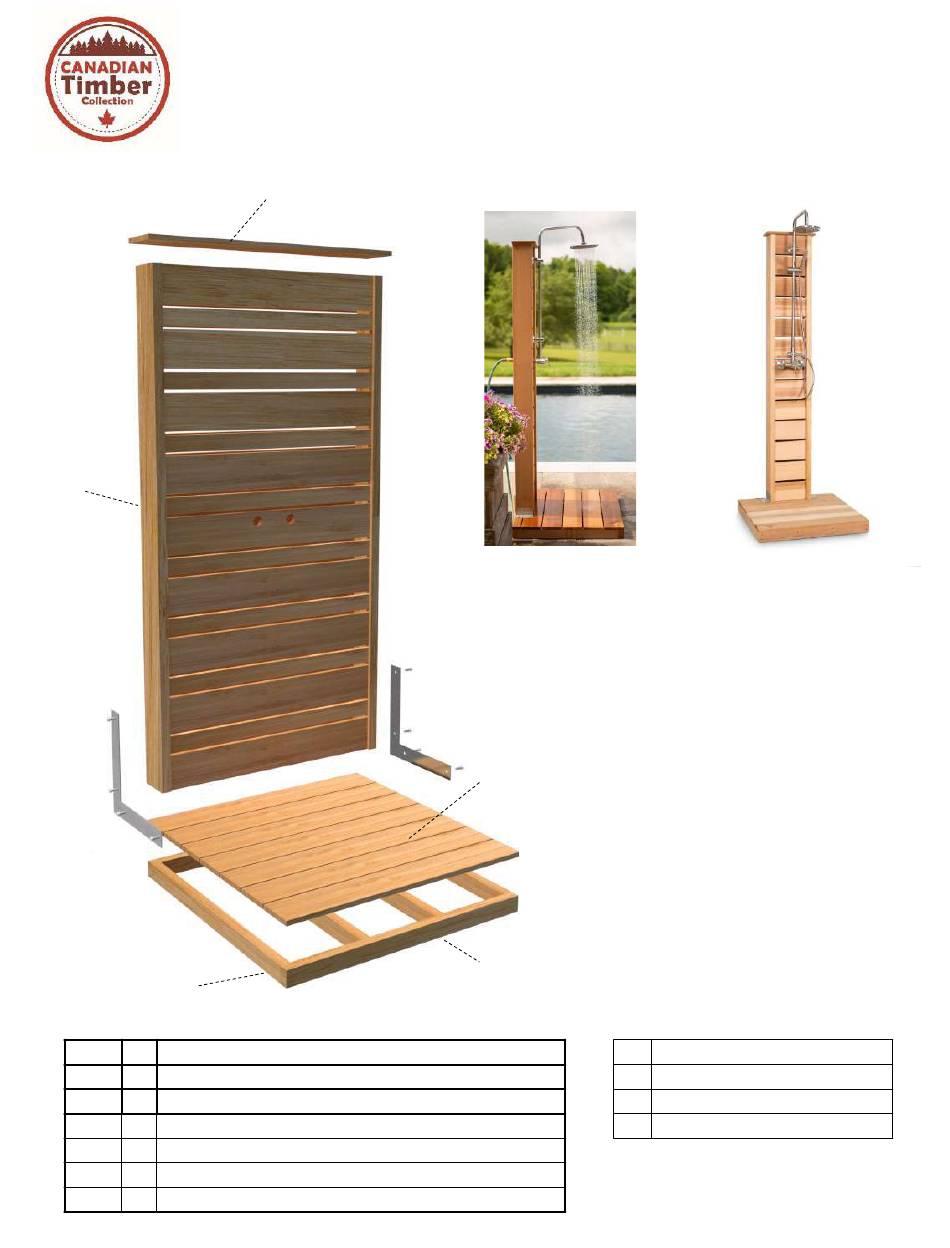

Parts Identification & Assembly Instructions
SV-01
H1
SV-04
Part # Qty
SV-01 1
Savannah Shower Wall Assembly
SV-02 7
Shower Floor Boards - 40" (102cm)
SV-03 2
Front/Back Floor Support - 40" (102cm)
SV-04 4
SV-05 1 Wall Assembly Top Cover – 5 ½" x 42" (14x107cm)
H1
2
Ph: 519-923-9813 | E: info@dundalkleisurecraft.com| Web: www.dundalkleisurecraft.com
SV-05
H1
Description
Floor Joists – 38 ½" (100cm)
Stainless Steel Angle Bracket
Economy Shower Hardware
(Cold water Only)
SV-02
SV-03
Qty
60 1 ½" (38mm) Wood Screws
16 2 ½" (64mm) Wood Screws
8
Optional Shower
Hardware
Platinum
Shower Hardware
(Hot & Cold)
(Full stainless steel with
hand held shower)
Hardware
1 ½" (38mm) Lag Screws
