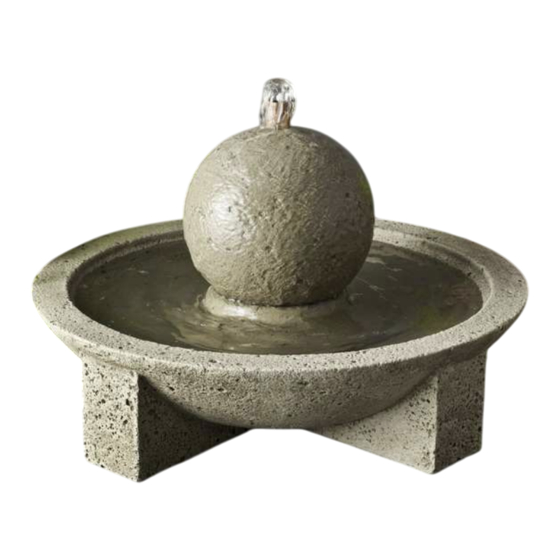

FT- 159 M Series Sphere Fountain
FT-159C
16.25"dia x 4.25" H
23 Lbs
NOTE: Component photos are not to scale
Pump Kit Parts List
PK80-A pump (1)
#7 compression stopper (1)
Approx. 4" length of 1/2" black non-kink tubing (1)
Approx. 2" length of 5/8" clear vinyl tubing (1)
4mm Allen wrench (1)
Hose clamps (1) Note – Hose clamp to be used as flow
restrictor if necessary
Wedges (2)
Adhesive Dots (4)
(3 pieces)
COMPONENTS AND PARTS LIST
FT-159A
6.25"dia x 5.25" H
9 Lbs
FT-159B
7"dia x 2.25" H
3 Lbs
No cover available for
this fountain
Tools you will need
Level
4mm Allen wrench (included)
Revised May 24, 2012
Fountain holds
approximately 1 ¼
gallon(s) of water
Advertisement
Related Manuals for Campania International FT-159
Summary of Contents for Campania International FT-159
- Page 1 FT- 159 M Series Sphere Fountain (3 pieces) Revised May 24, 2012 COMPONENTS AND PARTS LIST FT-159A 6.25”dia x 5.25” H 9 Lbs FT-159B 7”dia x 2.25” H 3 Lbs FT-159C 16.25”dia x 4.25” H 23 Lbs NOTE: Component photos are not to scale No cover available for Fountain holds this fountain...
- Page 2 FT- 159 M Series Sphere Fountain (3 pieces) Revised May 24, 2012 ASSEMBLY INSTRUCTIONS 1. Make sure you are assembling your fountain on a level surface. 2. This fountain will need to be installed on a surface capable of holding a minimum of 46 pounds in a ½ square foot area.
