2-CHANNEL STEREO WIRING

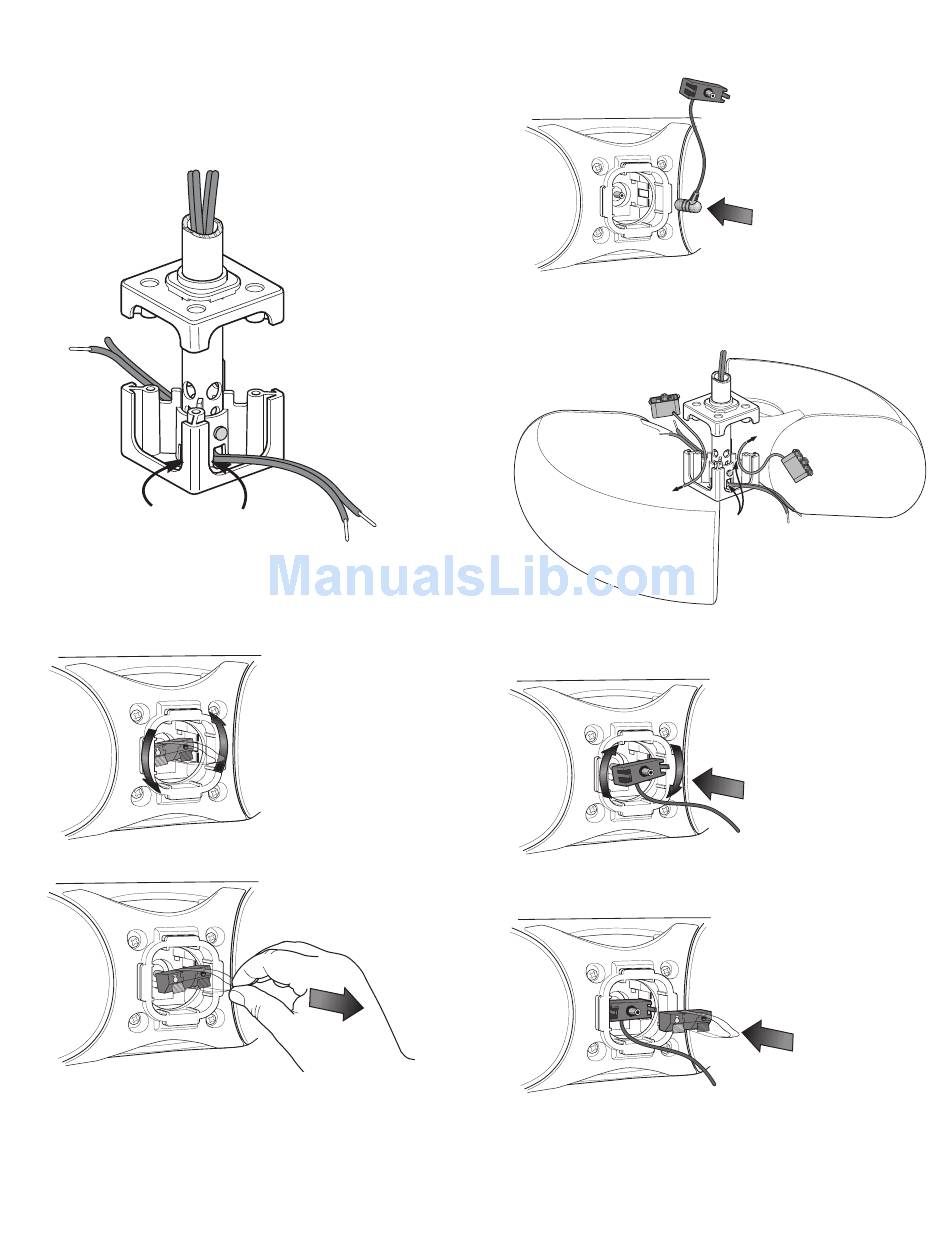

1. Use the stereo sound-distribution connection for a smaller home theater/stereo
environment. Run the sets of paired wires out two opposite wire access holes
through the pole-mount bracket, as shown.
NOTE: This procedure is applicable for both large- and small-diameter
drop tubes. A large-diameter drop tube is shown here.
Pole-Mount-Bracket
Cap
Pole-Mount
Bracket
Wire Access Holes
2-Channel-wiring for stereo sound distribution.
2. Remove the terminal assemblies from the rear of all four speakers. The terminal
assembly is removed by rotating it slightly counterclockwise, as shown.
Use the transparent plastic strap to pull the terminal assembly out, as shown.
24
Drop Tube
3. Connect the small end of the multiunit wiring adapter to the rear of speakers
D and B, as shown.
4. Place speakers D and B with connectors attached on the pole-mount bracket,
as shown. Run the wiring for the multiunit wiring adapter through the wire
access holes, as shown.
Drop Tube
Multiunit Wiring Adapter
A
to connect to speaker
D
Pole-Mount Bracket
Connector
5. Slide the large end of the multiunit wiring adapter that is already attached
to speaker B into the rear of speaker C at a slight angle and rotate clockwise,
as shown.
6. Connect the terminal assembly to the back of the multiunit wiring adapter. It
will snap securely into place.
Pole-Mount-Bracket Cap
Connector
Multiunit Wiring Adapter
to connect to speaker
Wire Access
Holes
This end is connected to speaker
B.
This end is connected to speaker
B
C
B.
