Instruction Manual
Contents
Section 1 Safety Information....................2-3
Section 2 General Information..................4-8
Section 3 Troubleshooting..........................9
Section 4 After-Sales Service.....................9
Our Commitment......................................10
Part Number List......................................11
HQUA
for Swimming Pool Light
HQUA-PN01DC
HQUA Technical Support Team At TX
1
Version No.20190101
Advertisement
Table of Contents
Related Manuals for HQUA PN01DC
Summary of Contents for HQUA PN01DC
-
Page 1: Table Of Contents
Section 1 Safety Information………………..2-3 Section 2 General Information……………...4-8 2.1 System Components 2.2 Specifications 2.3 Installation 2.4 M4 Remote Controller Operation Section 3 Troubleshooting……………………..9 Section 4 After-Sales Service…………………9 Our Commitment………………………………..10 Part Number List………………………………..11 Version No.20190101 HQUA Technical Support Team At TX... -
Page 2: Section 1 Safety Information
Safety Information Section 1 Safety Information Electrical Safety Negligence to these instructions may result in serious injury or death. Always disconnect the power to the pool light at the circuit breaker before servicing the light. Failure to do so could result in death or serious injury due to the electrical shock. Grounding Plug •... - Page 3 Safety Information • Always unplug this product from the electrical outlet before removing, cleaning, servicing or making any adjustment to the product. • Do not drown the transformer into the water. But it is IP67 and weatherproof. • Do not operate the product if transformer housing is cracked or showing water leakage; remove from pool or water immediately.
-
Page 4: Section 2 General Information

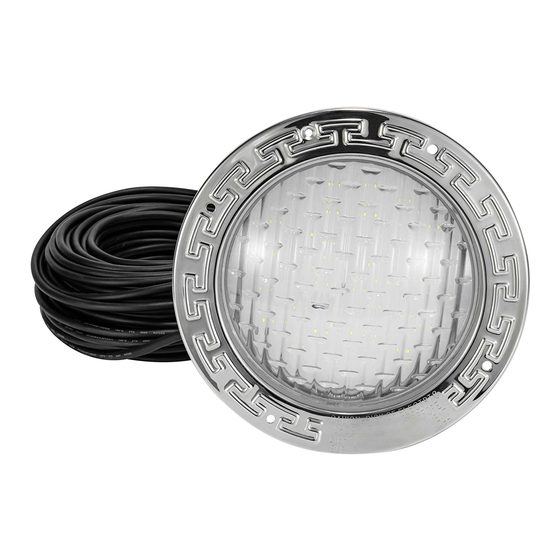

General Information Section 2 General Information HQUA-SP-PN01DC is a dimmable and color changing swimming pool LED light, which is very easy to install and safety. It could easily fit for your old wet niche (light fixture). Replace it with this LED light and face ring. The output voltage is 12V DC, which is not harmful for human body at all. -
Page 5: Specifications
2.2 Specification White Color Item Name Wattage Volts Dimmable Luminous flux Changing SP-PN01DC 110V 3000lm 2.3 Installation Precaution Keep people out of the swimming pool when you operate the installation. Always turn off the main electrical switch or circuit breaker. - Page 6 General Information light in the future. We would provide light assembly and waterproof connector as a replacement kit. Cut the old electric cord, strip each wire and re-connect them with our LED light replacement by a 5C connector (PN1005). You could just replace the LED light without replacing the whole electric cord which is in a good condition.
-
Page 7: M4 Remote Controller Operation
General Information Figure 5. 6. Plug the transformer into the outlet and power it on. Test the LED light with no one in the swimming pool. 7. Apply the power and learn how to control the LED light as follows: 2.4 M4 Remote Controller Operation Figure 6. - Page 8 General Information The Instruction of the Control Modes: Mode Mode White GREEN 3-Colors Jump Change Blue 7-Colors Jump Change Yellow 3-Colors Flashing Purple 7-Colors Flashing Cyan Black In Mode 1-7 : “+” and “–“ control the brightness In Mode 8-11: “+” and “–“ control the changing speed When there is no operation about 30 secs, the controller will fall into sleep to save power.
-
Page 9: Section 3 Troubleshooting
If you need any support, or have questions about the system, please contact our Technical Support team via hqua.tech@gmail.com and we will be glad to assist you. We sincerely hope that you enjoy the benefits of bright and safe pool illumination after the installation of HQUA inground swimming pool light. -
Page 10: Our Commitment
HQUA warrants that the M4-3A is free from defects of material and workmanship for a period of 2 years from the date of purchase. During this period, HQUA will repair or replace, at its option, any defective parts covered by the warranty. Please return the defective part to your dealer for claim. -
Page 11: Part Number List
Part Number List Part Number List Part Number Description PN01DCL RGBW Led Light Assembly 35W,12V DC PN01PC Weatherproof Transformer HLG-40H-15A PN01CS M4-3A Control System PN01CS01 M4 Remote Controller PN01CS02 M4-3A Control Receiver PN01CS03 Waterproof Junction Box for M4-3A Receiver PN01DCC 5C×22 AWG,100’...
