1. Features
Using infrared sensor technology, automatically triggering to play sound file.
The sensor can be rotated around 60 °, easy to change different induction field.
Sound file is changeable .
The read way of the voice address is confirmed according to the file storage order.
Playing modes is optional, such as single play, order play and random play.
Using MP3 playing solution. Sound quality is better than the ordinary sound.
Support external micro SD card or built-in SPI-FLASH, preference to micro SD card which supports hot
plug.
Replace voice files of FLASH via micro SD card .
Built in power amplifier and 2W/8Ω loud speaker, available to adjust volume.
Built in charging circuits , auto sleeping, low power consumption, long standby time.
DC-5V operation voltage and DC3.7 lithium battery.
2. Parameters
Power supply mode
Shenzhen Waytronic Electronics Co., Ltd.
SmartSound V2.08

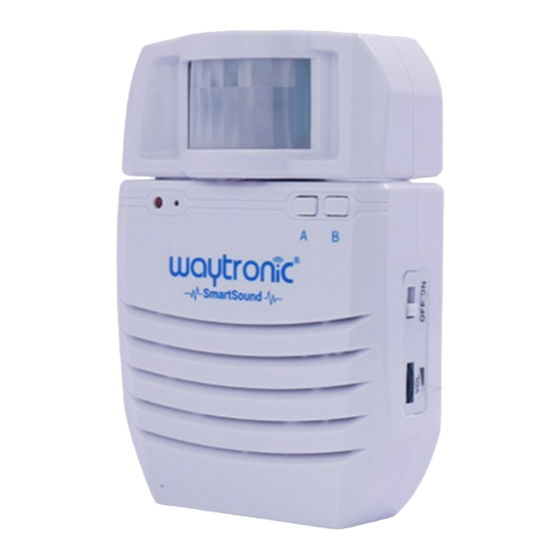

Voice Prompter
(Human Body Induction)
User Manual
- 1 -
DC5V stabilized voltage supply
3.7V lithium battery
SmartSound V2.08
Advertisement
Related Manuals for Waytronic SmartSound V2.08
Summary of Contents for Waytronic SmartSound V2.08
- Page 1 Shenzhen Waytronic Electronics Co., Ltd. SmartSound V2.08 SmartSound V2.08 Voice Prompter (Human Body Induction) User Manual 1. Features Using infrared sensor technology, automatically triggering to play sound file. The sensor can be rotated around 60 °, easy to change different induction field.
- Page 2 Shenzhen Waytronic Electronics Co., Ltd. SmartSound V2.08 Sleep state, lithium battery ≤46uA Working Current Playing state, lithium battery ≤320mA, typical 120MA Audio Format Bit Rate:16~320Kbps Audio Output power 8Ω/2W(Typical Value) Infrared Induction Range ≤5meters (horizontal direction 120°, vertical direction 30°) Working temperature Indoor 0 -30℃...
-
Page 3: Installation Condition
Shenzhen Waytronic Electronics Co., Ltd. SmartSound V2.08 Working area of infrared sensor Image: 120° 40° Plan view Side view 4.1. Installation condition 1. Don’t install outdoors; far from direct solar radiation, peg, large temperature variation; not near air condition or pyrotoxin or rotating objects. - Page 4 Shenzhen Waytronic Electronics Co., Ltd. SmartSound V2.08 forepart of audio play. 4.5 How to replace audio files of Flash memory Prepare some necessary tools such as computer, card reader and micro SD card ( capacity less than 8GB). Format micro SD card in the computer as the format of FAT32 file system. Then, copy the renewal mp3 audio file into micro SD card;...
- Page 5 Answer （1） If it is the first time to turn on Smartsound V2.08,then smartsound V2.08 need one minute to check itself,then work normally. (2) the working temperature of Smartsound V2.08 is 0 - 30 ℃ ， so please do not install it near the Air conditional .
-
Page 6: Parts List
Optional Need extra charge 128MB-4GB Indemnification SHENZHEN WAYTRONIC ELECTRONIC CO.,LTD. reserves the right to modify and use information without prior notice to customers. New product specifications will be subject to the latest version. Contact Us Shenzhen Waytronic Electronics Co., Ltd.
