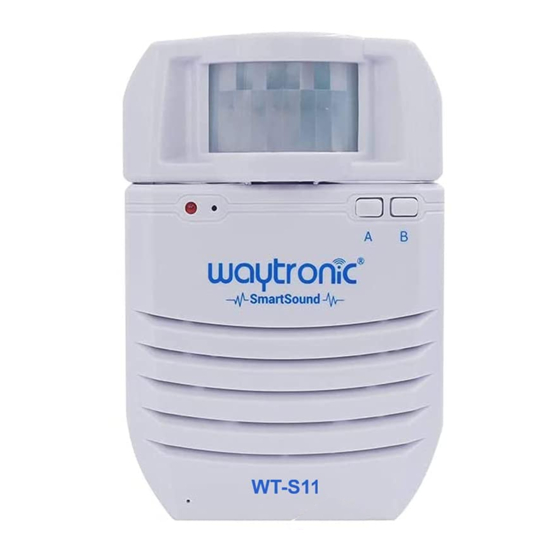

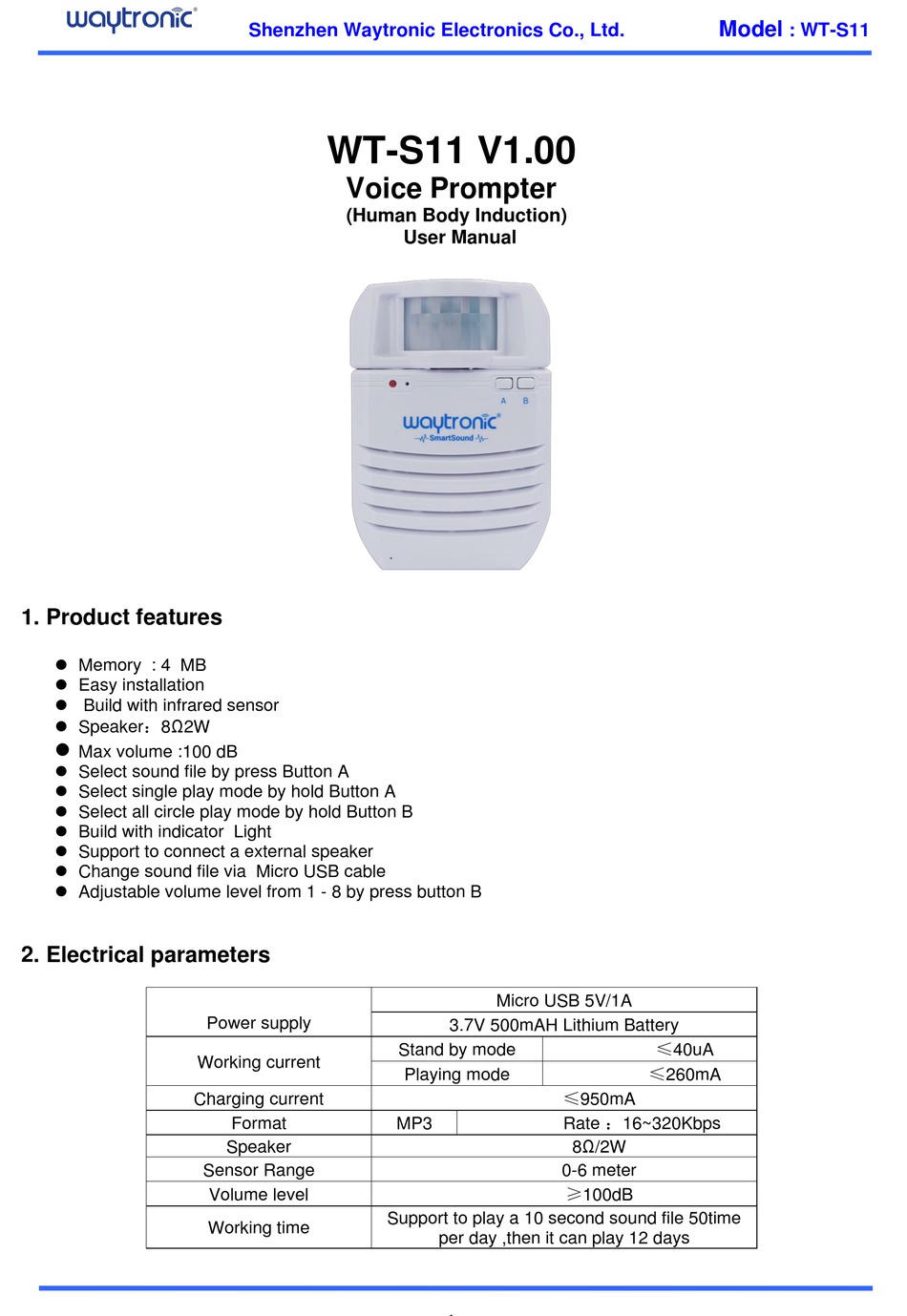

Waytronic WT-S11 User Manual

1. Product features

⚫ Memory : 4 MB
⚫ Easy installation
⚫ Build with infrared sensor
⚫ Speaker：8Ω2W
⚫
Max volume :100 dB
⚫ Select sound file by press Button A
⚫ Select single play mode by hold Button A
⚫ Select all circle play mode by hold Button B
⚫ Build with indicator Light
⚫ Support to connect a external speaker
⚫ Change sound file via Micro USB cable
⚫ Adjustable volume level from 1 - 8 by press button B

2. Electrical parameters

Shenzhen Waytronic Electronics Co., Ltd.
WT-S11 V1.00
Voice Prompter
(Human Body Induction)
Power supply
Working current
Charging current
Format
Speaker
Sensor Range
Volume level
Working time
User Manual
Micro USB 5V/1A
3.7V 500mAH Lithium Battery
Stand by mode
Playing mode
MP3
Support to play a 10 second sound file 50time
per day ,then it can play 12 days
Model
≤40uA
≤260mA
≤950mA
Rate ：16~320Kbps
8Ω/2W
0-6 meter
≥100dB
: WT-S11
