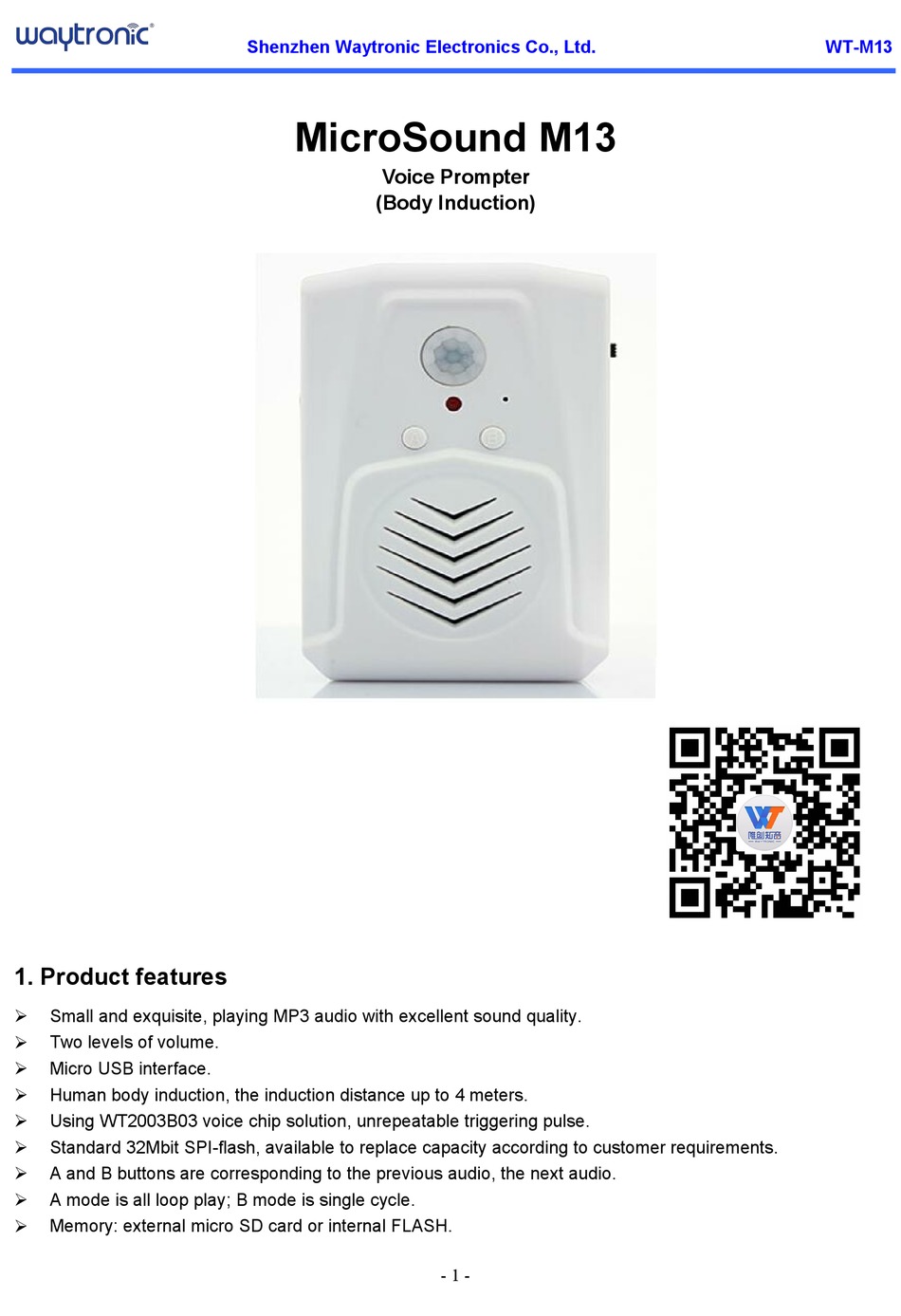

1. Product features
Small and exquisite, playing MP3 audio with excellent sound quality.
Two levels of volume.
Micro USB interface.
Human body induction, the induction distance up to 4 meters.
Using WT2003B03 voice chip solution, unrepeatable triggering pulse.
Standard 32Mbit SPI-flash, available to replace capacity according to customer requirements.
A and B buttons are corresponding to the previous audio, the next audio.
A mode is all loop play; B mode is single cycle.
Memory: external micro SD card or internal FLASH.
Shenzhen Waytronic Electronics Co., Ltd.

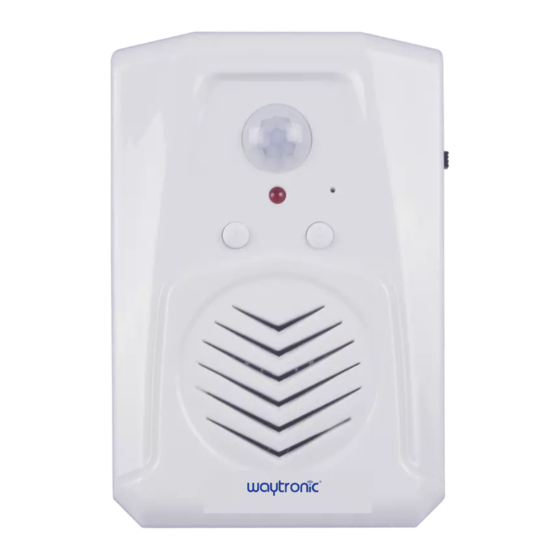

MicroSound M13
Voice Prompter
(Body Induction)
- 1 -
WT-M13
Advertisement
Related Manuals for Waytronic MicroSound M13
Summary of Contents for Waytronic MicroSound M13
- Page 1 Shenzhen Waytronic Electronics Co., Ltd. WT-M13 MicroSound M13 Voice Prompter (Body Induction) 1. Product features Small and exquisite, playing MP3 audio with excellent sound quality. Two levels of volume. Micro USB interface. Human body induction, the induction distance up to 4 meters.
-
Page 2: Electrical Parameters
Shenzhen Waytronic Electronics Co., Ltd. MicroSound V3.11 Support to copy the audio files from micro SD card to Flash. Support to replace contents of micro SD card through micro USB interface on computer. Using three AAA batteries or USB for power supply, built-in 8Ω 1 watt speaker. -
Page 3: Operating Guidance
Shenzhen Waytronic Electronics Co., Ltd. MicroSound V3.11 3.2 Operating guidance The operation is easy and simple. There are just one micro USB interface, one indicator light, two buttons A and B, one slide switch in total. Button Status Description To the bottom... -
Page 4: Installation
Shenzhen Waytronic Electronics Co., Ltd. MicroSound V3.11 again. 3. After finishing copying, sometimes there maybe invalid body induction, false dead lock, back to normal working state with power on again. 5. Installation Side wall mounted About 1.5 meters above the ground is the best. About 1 meter far from the door-frame. Use the mounting holder to fix the device, toward the door, 45°(see picture). - Page 5 FLASH file, so the time is a little longer. Indemnification SHENZHEN WAYTRONIC ELECTRONIC CO.,LTD. reserves the right to modify and use information without prior notice to customers. New product specifications will be subject to the latest version Contact Us Shenzhen Waytronic Electronics Co., Ltd.
