SmartLink
Multi-Fuel Prepayment System
ELECTRICITY

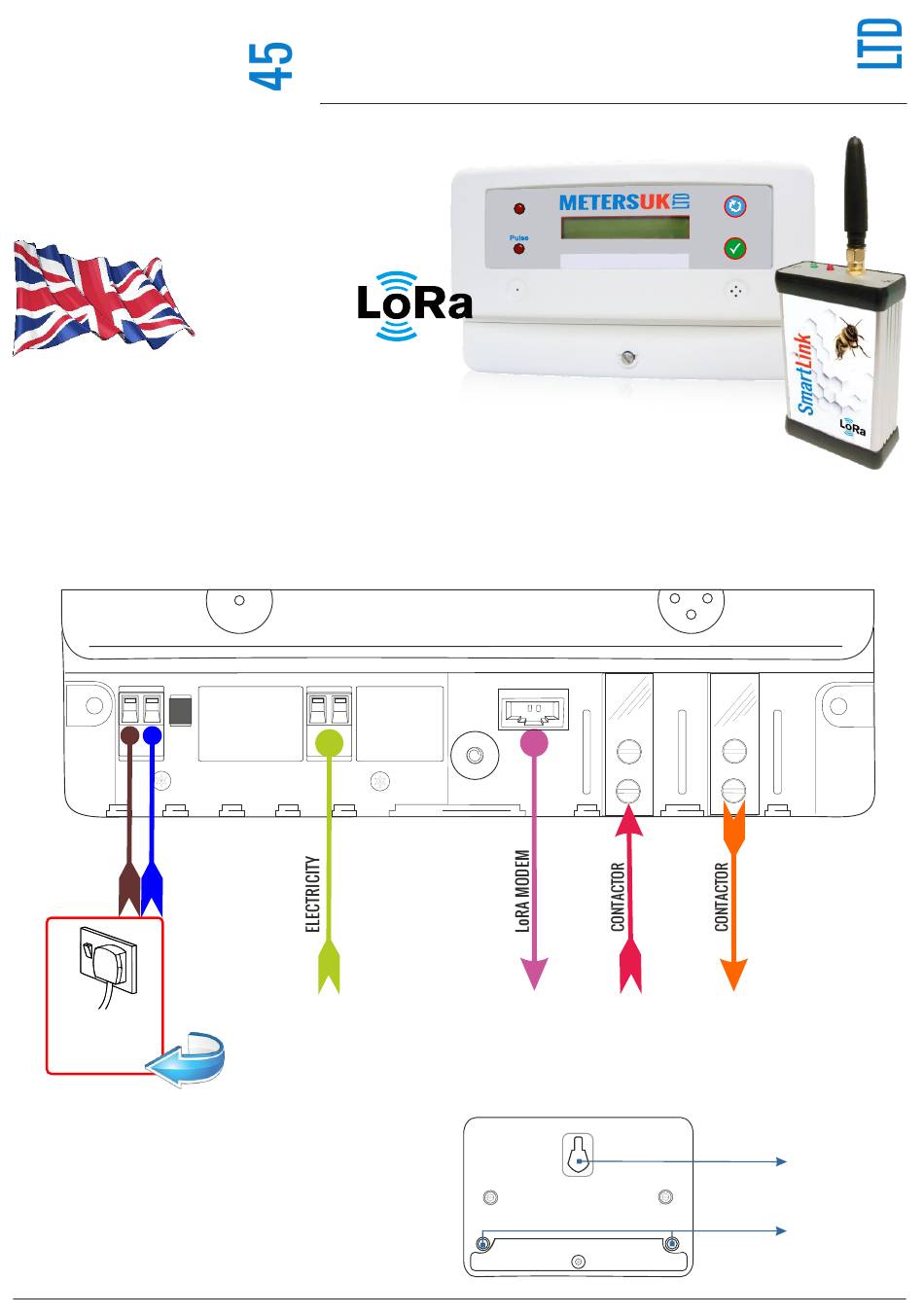

WIRING
Wiring standards must conform to IEE regulations.
It is recommended to use shielded cable manufactured to BS4360 Class 5 or VDE0295 Class 5
Wiring block list - Terminals are marked on the PCB
Remove Terminal Cover to expose wiring block
SURGE PROTECTION is recommended
Permanent Power Supply for each Smartlink45 required
POWER SUPPLY
230 or 24V
Permanent
MOUNTING
The SmartLink45 is designed for wall mounting, a screw
case hanging position is located at the top in the centre
of the case with two wall fixing positions located under the
terminal cover.
®
P U L S E C A B L E I N
NB!!
METERSUK
s a l e s @ m e t e r s . c o . u k 0 1 5 2 4 5 5 5 9 2 9
Comm
Smart Meter
400012345 6789
100AMP SINGLE POLE
Wall Mounting
Wall Fixing Positions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Meters UK SmartLink45 4000123456789
Summary of Contents for Meters UK SmartLink45 4000123456789
- Page 1 METERSUK SmartLink ® s a l e s @ m e t e r s . c o . u k 0 1 5 2 4 5 5 5 9 2 9 Multi-Fuel Prepayment System ELECTRICITY Comm Smart Meter 400012345 6789 WIRING Wiring standards must conform to IEE regulations.
- Page 2 MODEM INSTALLATION · Do not install under metal sinks or cupboards · Ensure the aerial is upright and not installed sideways · Keep in mind that the unit needs to communicate with other Comm LoRa devices, so the signal needs to be good. Smart Meter 4000123456789 INDICATOR LIGHTS...
