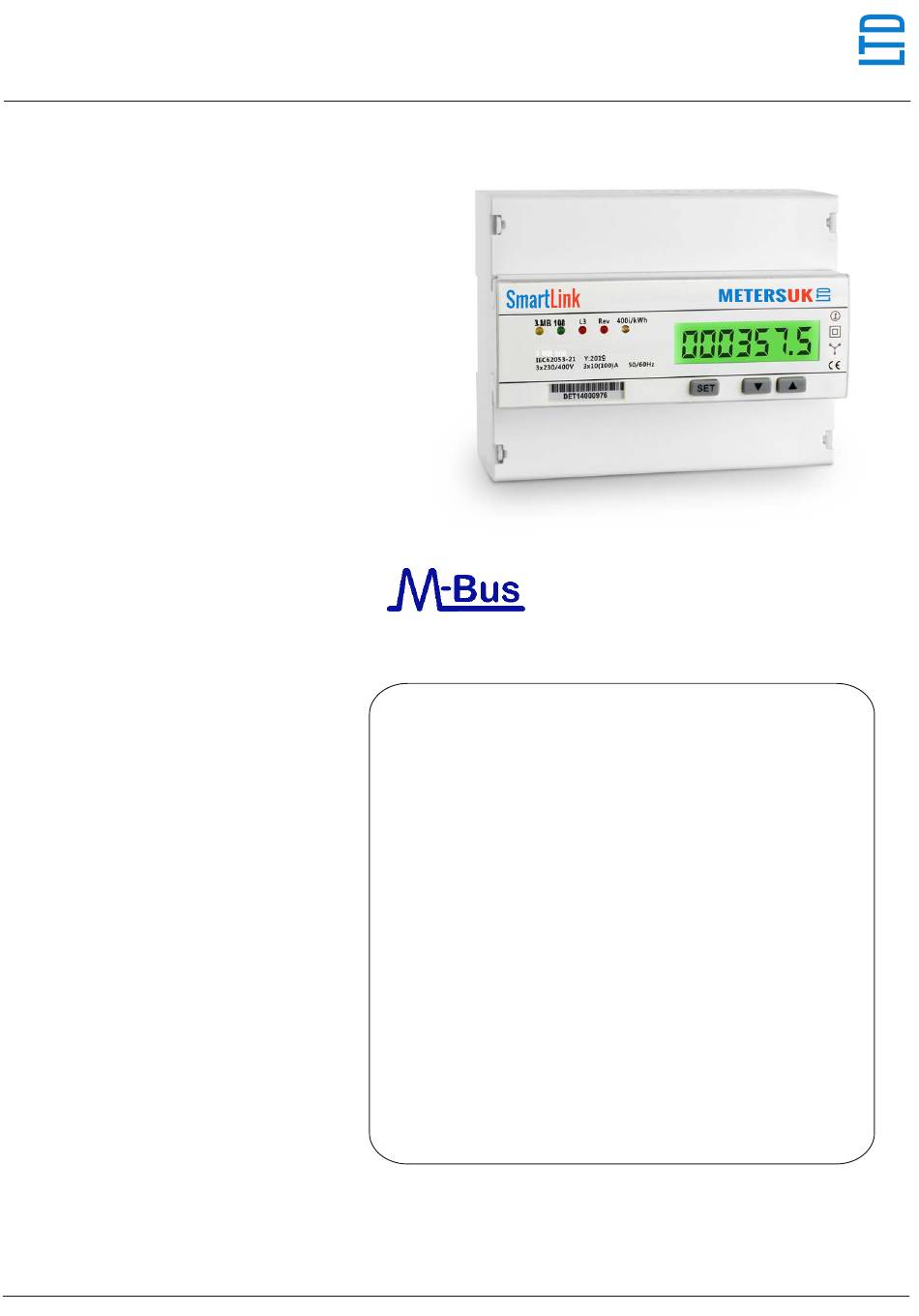

User Manual
3 MB 100

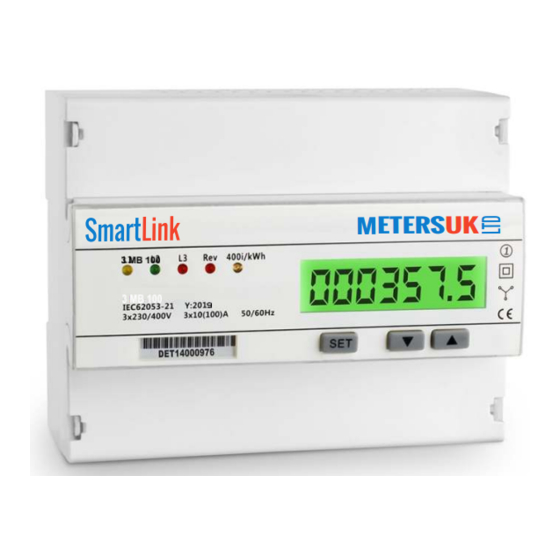

Smart Energy Meter
KEY FEATURES
• Three Phase metering
• Standard DIN rail format (DIN43880)
• CI.1 Accuracy EN50470
• LCD display, 6 integer 1 decimal
• Large display LCD
• Smart communication port, M-Bus output
• Isolate pulse output and IR (DIN43864)
• Direct metering up to 100A
• M-bus communication
• Front Panel Programming
• Memory back-up (EEprom)
• 7 DIN module size
INDEX
1. Safety notice
2. Package Contents
3.1 Product Description
7.4 Far Infrared Interface
7.4 Communication Port
8 Programming
8.1 Password verify
8.2 CT Rate setting
8.4 ID/Address Setting
METERSUK
s a l e s @ m e t e r s . c o . u k 0 1 5 2 4 5 5 5 9 2 9
1. SAFETY NOTICE
The smart energy meter 3 MB 100 does not require special mechanical
or electrical tools for its installation. Mounting position (with any angle of tilt)
has no effect on the measurement functions of the meter.
Connection of the meter must follow the wiring diagram.
Incorrect connection of the meter to the electricity network will cause a major
display problem and can also cause serious damage to the meter.
Before connecting the meter, ensure the local conditions of the energy supply
is consistent with the information under the model number of the meter.
Preferably use shielded cables. Make sure that all connection cables are
not damaged during the installation of the meter and not energized or showing
any non-mechanical stress.
Repairs to the meter are to be made by a qualified electrician only.
PLEASE NOTE: The capacitors in the meter may still be charged after the meter
is disconnected for all power.
2. PACKAGE CONTENTS
Three phase, electronic energy meter
Instructions for assembly; ID setting; Baud rate setting;
Password setting
3. TECHNICAL DESCRIPTION
3 MB 100 • Direct Connection • M-Bus • Pulse output
SmartLink
D Y N A M i T E
Advertisement
Table of Contents
Related Manuals for Meters UK 3MB100
Summary of Contents for Meters UK 3MB100
- Page 1 METERSUK User Manual s a l e s @ m e t e r s . c o . u k 0 1 5 2 4 5 5 5 9 2 9 3 MB 100 Smart Energy Meter KEY FEATURES •...
- Page 2 3MB100 User Manual 3.2 PERFORMANCE CRITERIA ≤ 75% Operating humidity Storage humidity ≤ 95% Operating temperature -5°C to + 45°C (3K5) Storage temperature -25°C to + 55°C (3k6) Humidity 75% yearly average 95% on 30 days per year International standard EN50470-3 &...
- Page 3 3MB100 User Manual 5. WIRING DIAGRAMS 21 + 22 = M-Bus Communication Pulse Width : 80m/sec Pulse Constant: 400 Pulse = 1 kWh 23 + 24 = Pulse Output (23 + | 24 - )
- Page 4 3MB100 User Manual 5A. TYPE OF CABLE TO USE The M-Bus uses two wire cables which are going from the M-Bus Master / Repeater to each M-Bus device (bus structure). The M-Bus is polarity independent and needs no line termination resistors at the end of the cables.
- Page 5 3MB100 User Manual 6. METER READING The viewing angle Operator meter should be at 45°. 7. MAIN FEATURES 7.1 Consumption indication On the front panel, there are five LED’s. 1. Line 1 2. Line 2 3. Line 3 4. Reverse Current 5. Active Energy Pulse Light.
- Page 6 3MB100 User Manual 8. PROGRAMMING By holding the keys “SET” pressed for at last 3 seconds The meter will go into programming mode. 000 375 .5 E M 7 3 5 - M o d I E C 6 2 0 5 3 - 2 1 : 2 0 1 6...
- Page 7 It is important to take a note of the new password as one cannot bypass the system. If the password is not crucial, leave the password as the default (0000). 9. TECHNICAL SUPPORT Any questions, please contact Meters UK 01524 555 929 OTHER: Branches must be no longer than 1200m. Longer branches could cause signal reflections and generate disturbances and consequent errors in the reception data.
