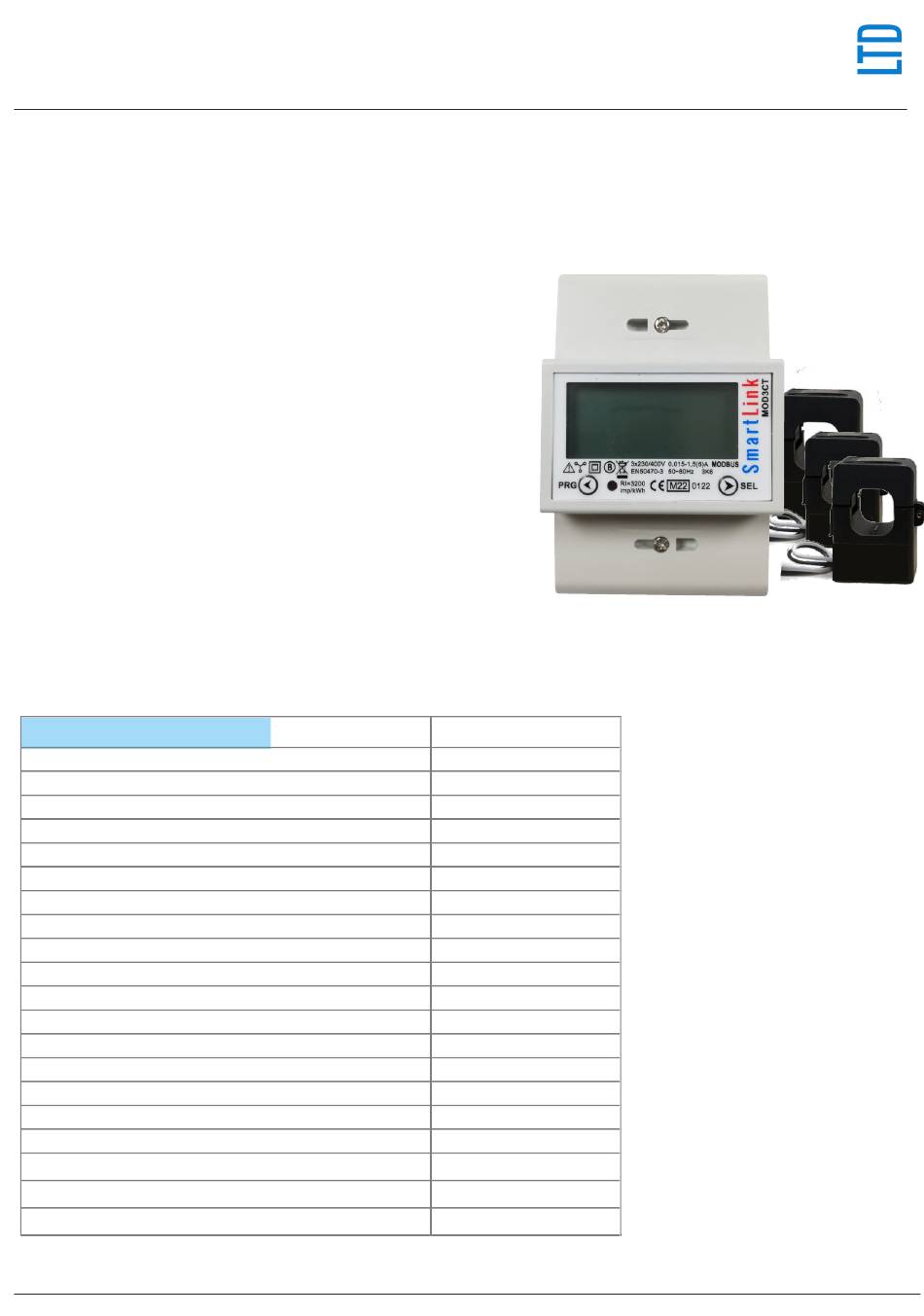

Meters UK MOD3CT User Manual

User Manual
MOD3CT Modbus

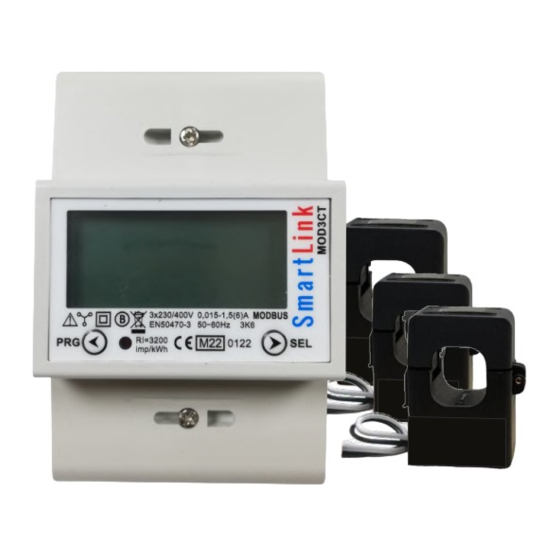

Three Phase 4 module energy meter
KEY FEATURES
The MOD3CT is three phase kWh Modbus meter with a LCD display in a
4 module (60mm) casing, ensuring a high accuracy class (Class1)
Excellent long term stability which is designed for DIN, IEN and
EN standards and 1 year warranty.
MID B approval which ensures the meter is produced to European
and International standards and the meter is legally suited for both
business and invoicing purposes.
For connection rate of up to 950A.
METER SPECIFICATION
Performance Criteria
Operating Humidity
Storage Humidity
Operating Temperature
Storage Temperature
International Standard
Active Energy Meters Class 1/B
Reactive Energy Meters Class 2
Voltage, LN & LL (Phase 1,2,3)
Amps (Phase 1,2,3)
PF (Phase 1,2,3 & ∑)
Active Power (Phase 1,2,3 & ∑)
Reactive Power (Phase 1,2,3 & ∑)
Apparent Power (Phase 1,2,3 & ∑)
Frequency
Active Energy
Reactive Energy
Accuracy Class
Protection against penetration of dust and water
Insulating encased meter of protective class
The mecha ni ca l a nd el ectroma gneti c envi ronmenta l cl a s s es
METERSUK
s a l e s @ m e t e r s . c o . u k 0 1 5 2 4 5 5 5 9 2 9
≤ 75%
≤ 95%
-25°C to +55°C
-30°C to +70°C
IEC62053-23| EN50470-1/3
IEC62053-23
± 0.5%
± 0.5%
± 0.2%
± 0.5%
± 0.5%
± 0.5%
± 0.2%
± 1%
± 1%
1/B
IP51
II
B
