Manual

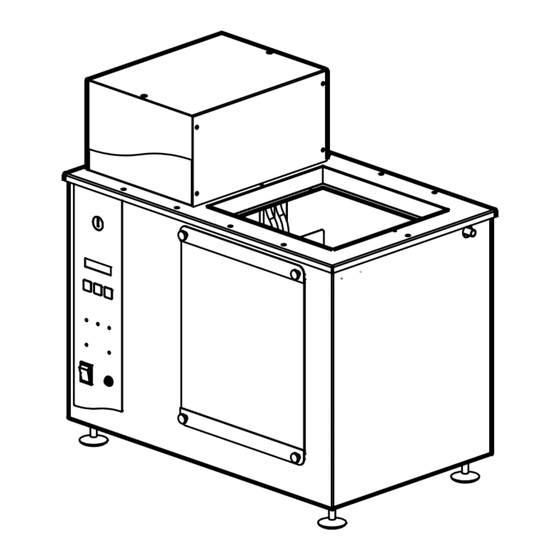

TV2000-MKII
TV4000-MKII
TV4000-MKII DC
Tamson Instruments bv
E-mail: sales@tamson.com
Website: www.tamson.com
VAT: NL 80 66 34 984 B01
Bank account no.: Rabobank 16 01 00 046
Chamber of commerce 27 16 95 41
IBAN Code: NL95 RABO 0160100046
Page 1/30
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tamson Instruments PMT TV2000-MKII
Summary of Contents for Tamson Instruments PMT TV2000-MKII
- Page 1 Manual TV2000-MKII TV4000-MKII TV4000-MKII DC Tamson Instruments bv VAT: NL 80 66 34 984 B01 Van ’t Hoffstraat 12 Bank account no.: Rabobank 16 01 00 046 2665 JL Bleiswijk, The Netherlands Chamber of commerce 27 16 95 41 E-mail: sales@tamson.com T.
-
Page 2: Table Of Contents
..............................26 ABLE 8.10 .............................. 26 PARE PARTS LIST Tamson Instruments bv VAT: NL 80 66 34 984 B01 Van ’t Hoffstraat 12 Bank account no.: Rabobank 16 01 00 046 2665 JL Bleiswijk, The Netherlands Chamber of commerce 27 16 95 41 E-mail: sales@tamson.com... - Page 3 ECHNICAL DRAWING EC D ............................... 29 ECLARATION DISCLAIMER ............................30 Tamson Instruments bv VAT: NL 80 66 34 984 B01 Van ’t Hoffstraat 12 Bank account no.: Rabobank 16 01 00 046 2665 JL Bleiswijk, The Netherlands Chamber of commerce 27 16 95 41 E-mail: sales@tamson.com...
-
Page 4: Safety And Warnings
If a problem persists, call your supplier or Tamson Instruments b.v. Warranty Tamson Instruments b.v. warrants that all their manufactured equipment is free from defects in material and workmanship preventing the machine from normal operation. Tamson Instruments bv does not warranty that the equipment is fit for any other use than stated in this manual. -
Page 5: Precautions And Hazards
INSTALLATION Important Tamson Instruments b.v. is not responsible for any consequential damage or harm caused by using this bath. Repairs on the electrical system of the bath may only be carried out by well trained and authorized persons. -
Page 6: Bath Liquids
A lower level than 5 cm below the lid may damage the heaters. A high bath level can cause overflow and might also damage the bath insulation. Tamson Instruments bv VAT: NL 80 66 34 984 B01 Van ’t Hoffstraat 12 Bank account no.: Rabobank 16 01 00 046... - Page 7 < 10ºC THAN example, in the volume proportion of 50 / 50%. ETHELENE- GLYCOL Tamson Instruments bv VAT: NL 80 66 34 984 B01 Van ’t Hoffstraat 12 Bank account no.: Rabobank 16 01 00 046 2665 JL Bleiswijk, The Netherlands Chamber of commerce 27 16 95 41 E-mail: sales@tamson.com...
- Page 8 Use heat protective clothing and wear safety WEAR HEAT glasses. PROTECTIVE CLOTHES Tamson Instruments bv VAT: NL 80 66 34 984 B01 Van ’t Hoffstraat 12 Bank account no.: Rabobank 16 01 00 046 2665 JL Bleiswijk, The Netherlands Chamber of commerce 27 16 95 41 E-mail: sales@tamson.com...
- Page 9 Never mix oil and water in or around the bath. Do not spill water in hot oil. Tamson Instruments bv VAT: NL 80 66 34 984 B01 Van ’t Hoffstraat 12 Bank account no.: Rabobank 16 01 00 046...
-
Page 10: Maximum Level
Handle old bath fluid as toxic waste. Cool down bath fluid to ambient before removing. Do not drain hot liquid !! Tamson Instruments bv VAT: NL 80 66 34 984 B01 Van ’t Hoffstraat 12 Bank account no.: Rabobank 16 01 00 046... -
Page 11: Cooling
PROTECTIVE EARTH Tamson Instruments bv VAT: NL 80 66 34 984 B01 Van ’t Hoffstraat 12 Bank account no.: Rabobank 16 01 00 046 2665 JL Bleiswijk, The Netherlands Chamber of commerce 27 16 95 41 E-mail: sales@tamson.com... -
Page 12: General
0.01°C (0.001°C for the TV4000MKIIDC) and a specific offset of 0.005°C is available from the menu. Tamson Instruments bv VAT: NL 80 66 34 984 B01 Van ’t Hoffstraat 12 Bank account no.: Rabobank 16 01 00 046... -
Page 13: Rs232C Control
’errors’. In this way there is a continual check of the proper functioning of the bath. Tamson Instruments bv VAT: NL 80 66 34 984 B01 Van ’t Hoffstraat 12 Bank account no.: Rabobank 16 01 00 046... -
Page 14: Front Panel Layout
Backlight (LCD) Temp units Baudrate SP Offset Restart Tamson Instruments bv VAT: NL 80 66 34 984 B01 Van ’t Hoffstraat 12 Bank account no.: Rabobank 16 01 00 046 2665 JL Bleiswijk, The Netherlands Chamber of commerce 27 16 95 41 E-mail: sales@tamson.com... -
Page 15: Safety Thermostat
Bath control is stable Alarm high, press button to reset* Alarm low, press button to reset* * Optional item Tamson Instruments bv VAT: NL 80 66 34 984 B01 Van ’t Hoffstraat 12 Bank account no.: Rabobank 16 01 00 046... -
Page 16: Quick Start
Turn feet to be turned in and outwards for exact adjustment. adjust bath spirit level Tamson Instruments bv VAT: NL 80 66 34 984 B01 Van ’t Hoffstraat 12 Bank account no.: Rabobank 16 01 00 046 2665 JL Bleiswijk, The Netherlands Chamber of commerce 27 16 95 41 E-mail: sales@tamson.com... -
Page 17: Menu Items
Precise 7.1.6 * Menu item "Stirrer" Optional: Stirrer 0 .. 100% (step 6%). Inactive Tamson Instruments bv VAT: NL 80 66 34 984 B01 Van ’t Hoffstraat 12 Bank account no.: Rabobank 16 01 00 046 2665 JL Bleiswijk, The Netherlands Chamber of commerce 27 16 95 41 E-mail: sales@tamson.com... -
Page 18: Menu Item "Low Alarm
4800 9600 19200 38400 Standard value: 9600 Tamson Instruments bv VAT: NL 80 66 34 984 B01 Van ’t Hoffstraat 12 Bank account no.: Rabobank 16 01 00 046 2665 JL Bleiswijk, The Netherlands Chamber of commerce 27 16 95 41 E-mail: sales@tamson.com... -
Page 19: Menu Item "Offset 0.005
75°C Proportional band (Pb) : Integrator Differentiator Min/max ± 0,045°C Tamson Instruments bv VAT: NL 80 66 34 984 B01 Van ’t Hoffstraat 12 Bank account no.: Rabobank 16 01 00 046 2665 JL Bleiswijk, The Netherlands E-mail: sales@tamson.com Chamber of commerce 27 16 95 41 T. -
Page 20: Tv4000Mkii Dc Stability
Temperature measured in calibration block Measurements have been performed with silicone oil <3cSt @ TV4000MKII DC stability set point temperature Tamson Instruments bv VAT: NL 80 66 34 984 B01 Van ’t Hoffstraat 12 Bank account no.: Rabobank 16 01 00 046... -
Page 21: Manual Tuning
0,8xT P + I + D control 1,7xB 0,5xT 0,12xT Tamson Instruments bv VAT: NL 80 66 34 984 B01 Van ’t Hoffstraat 12 Bank account no.: Rabobank 16 01 00 046 2665 JL Bleiswijk, The Netherlands Chamber of commerce 27 16 95 41 E-mail: sales@tamson.com... -
Page 22: Trouble Shooting
·The operating temperature is around or below 30°C. To stabilize the bath at a set-point temperature just above the ambient temperature it is necessary to apply cooling Tamson Instruments bv VAT: NL 80 66 34 984 B01 Van ’t Hoffstraat 12 Bank account no.: Rabobank 16 01 00 046... -
Page 23: Error Led On, System Locked
Motor / stirrer not running Check motor fuse on front panel. Reset fuse by pressing it. Tamson Instruments bv VAT: NL 80 66 34 984 B01 Van ’t Hoffstraat 12 Bank account no.: Rabobank 16 01 00 046... -
Page 24: Rs 232 C Interface
$12 : startup delay finished, decide to boost or cool $20 : boosting $30 : Waiting for cool-down $40 : Start of ratio process Tamson Instruments bv VAT: NL 80 66 34 984 B01 Van ’t Hoffstraat 12 Bank account no.: Rabobank 16 01 00 046... - Page 25 SP22.50 sets set point temperature to 20.50°C When controller displays temperature in °F, SP20.50 sets the set point to 20.50°F SP22.555 results in error code "10" Tamson Instruments bv VAT: NL 80 66 34 984 B01 Van ’t Hoffstraat 12 Bank account no.: Rabobank 16 01 00 046...
-
Page 26: Rs 232 Cable
Heater control (2*) 28T0028 Power unit 06T0503 Board IO Tamson Instruments bv VAT: NL 80 66 34 984 B01 Van ’t Hoffstraat 12 Bank account no.: Rabobank 16 01 00 046 2665 JL Bleiswijk, The Netherlands Chamber of commerce 27 16 95 41 E-mail: sales@tamson.com... -
Page 27: Addendum: Technical Reference
06T0508 06T0500 28T4320 06T0509 RS232 female Tamson Instruments bv VAT: NL 80 66 34 984 B01 Van ’t Hoffstraat 12 Bank account no.: Rabobank 16 01 00 046 2665 JL Bleiswijk, The Netherlands Chamber of commerce 27 16 95 41 E-mail: sales@tamson.com... -
Page 28: Technical Drawing Tv4000Mkii-Dc
28T4320 06T0508 06T0500 06T0509 RS232 female Tamson Instruments bv VAT: NL 80 66 34 984 B01 Van ’t Hoffstraat 12 Bank account no.: Rabobank 16 01 00 046 2665 JL Bleiswijk, The Netherlands Chamber of commerce 27 16 95 41 E-mail: sales@tamson.com... -
Page 29: Ec Declaration
Safety requirements for electrical equipment for measurement, control, and laboratory use Part 2, Particular requirements for laboratory equipment for the heating of material, EN 61010-2-010-2003 Machinery directive (2006/42/EC) 2006-42-ec-2nd-2010 January 2010, Tamson Instruments bv, The Netherlands Ing. R.C. van Hall Director Tamson Instruments bv VAT: NL 80 66 34 984 B01 Van ’t Hoffstraat 12... -
Page 30: Disclaimer
Alteration of this document is strictly prohibited. Except to the extent required by law, republication or retransmission of this document, in whole or in part, is not permitted. Tamson Instruments bv assume no responsibility for accuracy of information. Tamson Instruments neither represent nor warrant that the...
