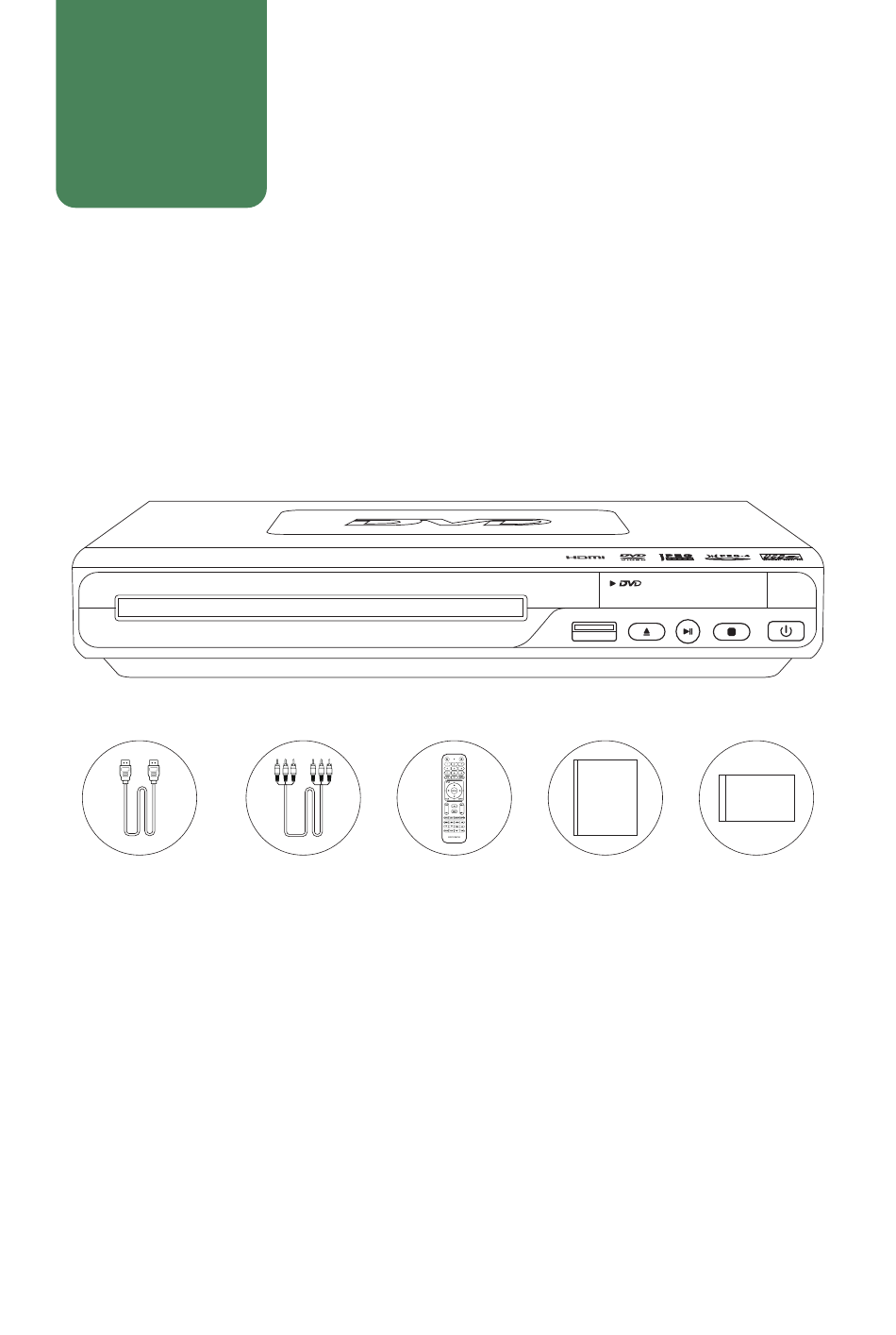

Instruction
Manual
ELECTCOM PRO
2.0 CH HDMI DVD PLAYER
38:58
D VD
USB
PLAY/PAUSE
POWER
OPEN/CLOSE
STOP
MENU
Instruction
Warranty
Manual
Card
REWIND
FORWARD
HDMI
RCA
Remote
Instruction
Warranty
Cable
Cable
Control
Manual
Card
Important safety instructions: read carefully and keep for future reference.
Advertisement
Table of Contents
Related Manuals for Electcom PRO
Summary of Contents for Electcom PRO
- Page 1 Instruction Manual ELECTCOM PRO 2.0 CH HDMI DVD PLAYER 38:58 D VD PLAY/PAUSE POWER OPEN/CLOSE STOP MENU Instruction Warranty Manual Card REWIND FORWARD HDMI Remote Instruction Warranty Cable Cable Control Manual Card Important safety instructions: read carefully and keep for future reference.
-
Page 2: Table Of Contents
Product Overview Front Panel & Rear panel Using the Remote Control How to Use the Remote Control Connecting the DVD Player Video system connection Audio connection system Setting the DVD Player System Setup Language Setup Audio Setup Video Setup Speaker Setup Digital Setup Playing the DVD Player Playable file format... - Page 3 Product Overview Front Panel 38:58 ① USB PORT: Plug in USB ② OPEN/CLOSE BUTTON: Open/close tray ③ PLAY/PAUSE BUTTON: Play start/play pause ④ STOP BUTTON: Return to the beginning of playback ⑤ POWER: Power on/off ⑥ LED DISPLAY: Displays the playing time Rear Panel ①...
- Page 4 Using the Remote Control 1. POWER ON/OFF 9. OPEN/CLOSE Press to Power On, Press to load and remove discs. press again for Standby Place disc into tray with the title side mode. facing up. Press button again to close the disc tray. 2.
- Page 5 14. PLAY/PAUSE 24. LANGUAGE Press once to pause, press When playing DVD with more than again to play. one audio stream, press LANGUAGE to select what you 15. STOP desired. Press to stop media. Press the 25. CD RIPPING Play/Pause button to resume. Press the button to use the CD 16.
-
Page 6: Connecting The Dvd Player
Connecting the DVD Player Video system connection Composite Video Use the AV cable (yellow terminal) to connect composite video output of this unit to the TV/monitor video input. Component Video Use 3-core AV cable to connect the component output terminals of this unit to the corresponding TV/monitor input. -
Page 7: Audio Connection System
YUV Connection (Good) (YUV Cable not included) HDMI Pb/Cb Pr/Cr AUDIO VIDEO Audio connection system Stereo Audio Use a pair of AV cables (red for right/white for left) to connect the stereo audio output of this unit to the TV if you want to have sound from the TV. Note!!!: The physical connection should match with audio output setup of this unit. -
Page 8: Setting The Dvd Player
Setting the DVD Player Basic Operation Press on the remote control unit to setup the initial setting, select SETUP related[SETUP PAGE] with the directional buttons. Menu Operations You can setup the mode of audio and video output, initial setup, parental control level, etc. -
Page 9: Language Setup
Wide screen video output for a wide screen TV set. PASSWORD The initial setting of this item is under locked status. You can not set the rating and also can not change password . Input initial password: 0000 0/10 ENTER and press to confirm and then you can set rating and change password. -
Page 10: Video Setup
KEY: Press ▲ ▼ to adjust the tone level. 4.Video Setup BRIGHTNESS CONTRAST SATURATION SHARPNESS Use ▲ ▼ to adjust the corresponding value of the video output. 5.Speaker Setup DOWN MIX LT/RT: When you play a disc that has logic effect, you can choose LT/RT output.The disc information will be decoded and show better effect. -
Page 11: Playing The Dvd Player
Playing the DVD Player Playable file format Supported discs format: DVD, DVD+RW, DVD-RW, DVD+R, DVD-R, HDCD, VCD, CD, CD+R, CD-R, MP3 Music CD, Super VCD, CD-R/-RW DVD Video DVD-Video format DVD-R DVD-Video format DVD-RW DVD-Video format CD-DA, Video CD, CD-Audio Super Video CD CD-R CD-DA, JPEG, MP3... -
Page 12: Play Picture Cd Disc
Play Picture CD Disc Press to select the desired picture. Play MP3 Disc When playing a MP3 disc, there is a menu screen on TV press the [▲] or [▼] button to shift the cursor to select the track or folder and press the [ENTE button to play the selected track or folder (it needs to enter the ENTER sub-folder to select the track and press the... -
Page 13: Options
Options First, select the copying SPEED normal or fast when normal is selected, you can listen to the music while copying is in process. When fast is selected you will only see the copy process in the TV screen. Second, select the BITRATE. Usually, 128K rate is used. Third, CREATE ID3 TAG. -
Page 14: Safety Information
Safety information Important Notes: Please read through the manual carefully before connecting and operation. Do not open the cover or touch any internal components for non-professional. Turn off the power when the unit is not being used. (Unplug the power cord if the unit is not used for a long time.) Do not expose the unit to direct sunlight. - Page 15 Specification AC~100-230V 50/60HZ Power supply Less than ≤15W Power consumption PAL/PAL-M/NTSC/AUTO TV system 650nm,780nm Laser wavelength DVD: 20Hz-20KHz(48KHzPCM) Audio frequency range 20Hz~44KHz(96KHz PCM) CD: 20Hz~20KHz ≥60 dB S/N ratio ≥60 dB Audio dynamic range Temperature: 5-40°C, operation flat, horizontal Operating conditions 1.0V(P-P).75Ω...
-
Page 16: Troubleshooting
Troubleshooting If you experience any of the following difficulties while using the player, use this troubleshooting guide to help remedy the problem before requesting repairs. -
Page 18: Warranty
Stay up-to-date with product updates and offers. Customer Service Need help with: • Connecting your devices • Product setup • Return & Replacement • Technical support • More information Email Support Live Chat Amazon Message Email: SUPPORT@ELECTCOM.CO...
Need help?
Do you have a question about the PRO and is the answer not in the manual?
Questions and answers
how do you turn off "closed caption" on my dvd'
@Ian Alan Holder
My player is playing but TV screen is blank black
The Electcom PRO player may be playing but the TV screen is blank due to one of the following reasons:
1. Incorrect Video Connection – Ensure the video cable is properly connected to both the DVD player and the TV.
2. No Signal Connection Settings – Check the TV’s input settings to ensure it is set to the correct input source (HDMI, RCA, etc.).
3. Dirty or Unsupported Disc – Clean the disc or check if it is a supported format.
4. Anti-Copy Circuit Interference – Some discs have copy-protection that may affect video stability.
5. Brightness or Picture Settings – Adjust the TV’s brightness and picture settings.
6. Parental Control Settings – If parental control is enabled, it may prevent video output.
Check these factors and adjust the settings accordingly to resolve the issue.
This answer is automatically generated
New unit hooked up inserted disc reads No Disc
The Electcom PRO unit may display "No Disc" for the following reasons:
1. The disc is inserted upside down.
2. The disc is dirty or damaged.
3. The disc format is not supported (e.g., Blu-ray discs are not supported).
4. The disc is not properly inserted.
To resolve the issue, ensure the disc is clean, correctly inserted, and in a compatible format. If the problem persists, try a different disc.
This answer is automatically generated
Have DVD set up, but no color on movies, only black and white
The Electcom PRO DVD player may be displaying movies in black and white due to incorrect video connection settings. Ensure that the video cable is properly connected and that the correct video output mode is selected. If the TV and DVD player use different video signal formats (such as NTSC or PAL), this can also cause black-and-white playback. Adjust the video system settings in the DVD player's menu to match the TV's format.
This answer is automatically generated
