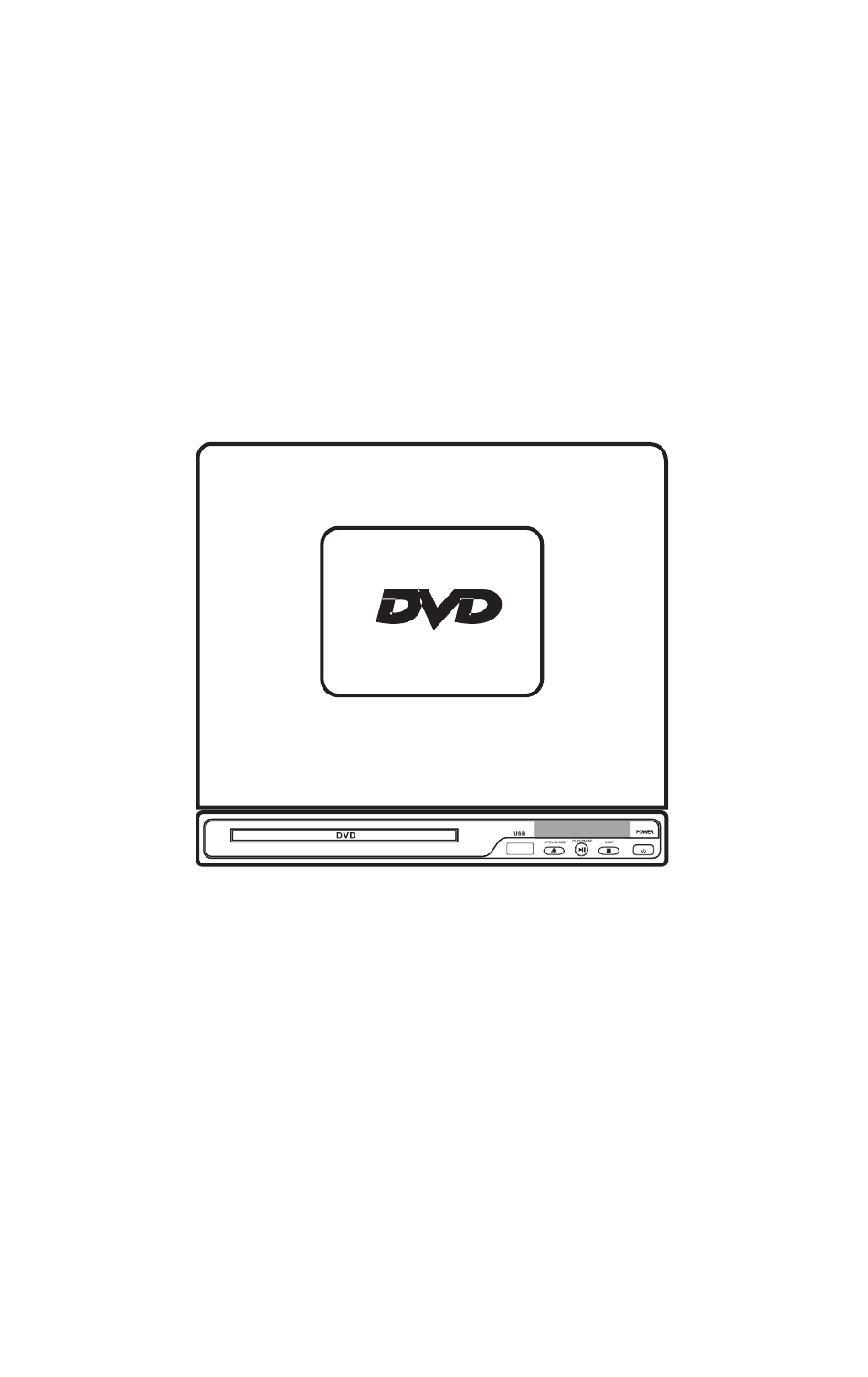

- Page 1 2.0 CH DVD HDMI PLAYER Instruction Manual Important safety instructions: read carefully and keep for future reference.
- Page 2 Features Thank you for purchasing our product. Please read this manual carefully before connection and operation. Please keep this manual for future reference. DVD player is a new generation home player which can produce high quality video and audio. Its performance is much better that of any previous home video playing equipment.
-
Page 3: For Your Attention
For Your Attention IMPORTANT NOTES: Please read through the manual carefully before connecting and operation. Do not open the cover or touch any internal components for non-professional. Turn off the power when the unit is not being used. (Unplug the power cord if the unit is not used for a long time.) Do not expose the unit to direct sunlight Keep away the heating sources or equipments. - Page 4 Panel Front panel Back panel...
-
Page 5: Remote Control
Remote control MENU Remote control operation... -
Page 6: Composite Video
Connection Video system connection Composite Video Use the AV cable (yellow terminal) to connect composite video output of this unit to the TV/monitor video input. Component Video Use 3-core AV cable to connect the component output terminals of this unit to the corresponding TV/monitor input. -
Page 7: System Setup
System Setup Basic Operation Press SETUP on the remote control unit to setup the initial setting. select related[SETUP PAGE] with the directional buttons. Menu Operations You can setup the mode of audio and video output, initial setup, parental control level, etc. You can also select the aspect ratio of the playback picture to your TV screen. -
Page 8: Language Setup
4:3/LB: Letter Box video output for a normal TV set. The screen displays the wide picture with bands displayed on the upper and lower portions of the Screen. 16:9: Wide screen video output for a wide screen TV set. PASSWORD The initial setting of this item is under locked status. - Page 9 Audio Setup AUDIO OUT: Use right arrow button to sdect the audio output way. This is the way for you to select SPDIF/OFF, SPDIF/RAW, SPDIF/PCM. KEY： Press ▲ ▼ to adjust the tone level. Video Setup BRIGHTNESS: Use ▲ ▼ to adjust the brightness of the video output. CONTRAST: Use ▲...
- Page 10 Play Basic Operation Press OPEN/CLOSE button, the disc into tray opens. Place the disc on the tray with the title facing up. Press OPEN/CLOSE again to close the disc tray. When playing, press STANDBY button, the machine will be power-off and go to standby state.
- Page 11 When playing the DVD discs with multi-subtitles, press SUBTITLE continually to get to the language you desire. When playing a DVD disc with multi-angles, it's possible to change the view angel. When playing VCD1.1, CD, MP3 discs, after loading the disc, use the digit key to select the desired track or chapter directly.
- Page 12 Press digit key to input the number of the track, title or chapter, If the programmed tracks are over ten press 10+ to go on programming. (Maximum 16 programmable items) use the up / down / left / right key to move the cursor to the PLAY.
- Page 13 Press VOL+ to increase volume up. Press VOL- to decrease volume down. Mute the sound during playing. Press the OSD button, the relative information of the disc will display on the TV screen. Press SETUP to get into [SETUP] menu. Confirm the selection.
- Page 14 CD Ripping The product has CD ripping functions Put a CD into the disc tray and then plug in an USB drive. Press CD RIPPING key on the remote. A CD rip menu will be shown on the TV screen. Options First, select the copying SPEED normal or fast when normal is selected, you can listen to the music while copying is in process.
-
Page 15: Troubleshooting
Troubleshooting Specification...
