Terminal Connections - Advanced Detection Systems ProScan Max II Installation Manual And Owner's Manual

WARNING: Whenever wiring is to be done to the terminal strip of the detector, make sure ALL sources of
power have been disconnected. Terminals controlling other devices may be powered from sources other than
those supplying the metal detector. Caution should be used when working on machinery as components may
stop and start automatically without warning.
RLY 5
RLY 5
RLY 4
RLY 4
RLY 3
RLY 3
COMMON
OPTO INPUT
PULSE INPUT
RESET INPUT

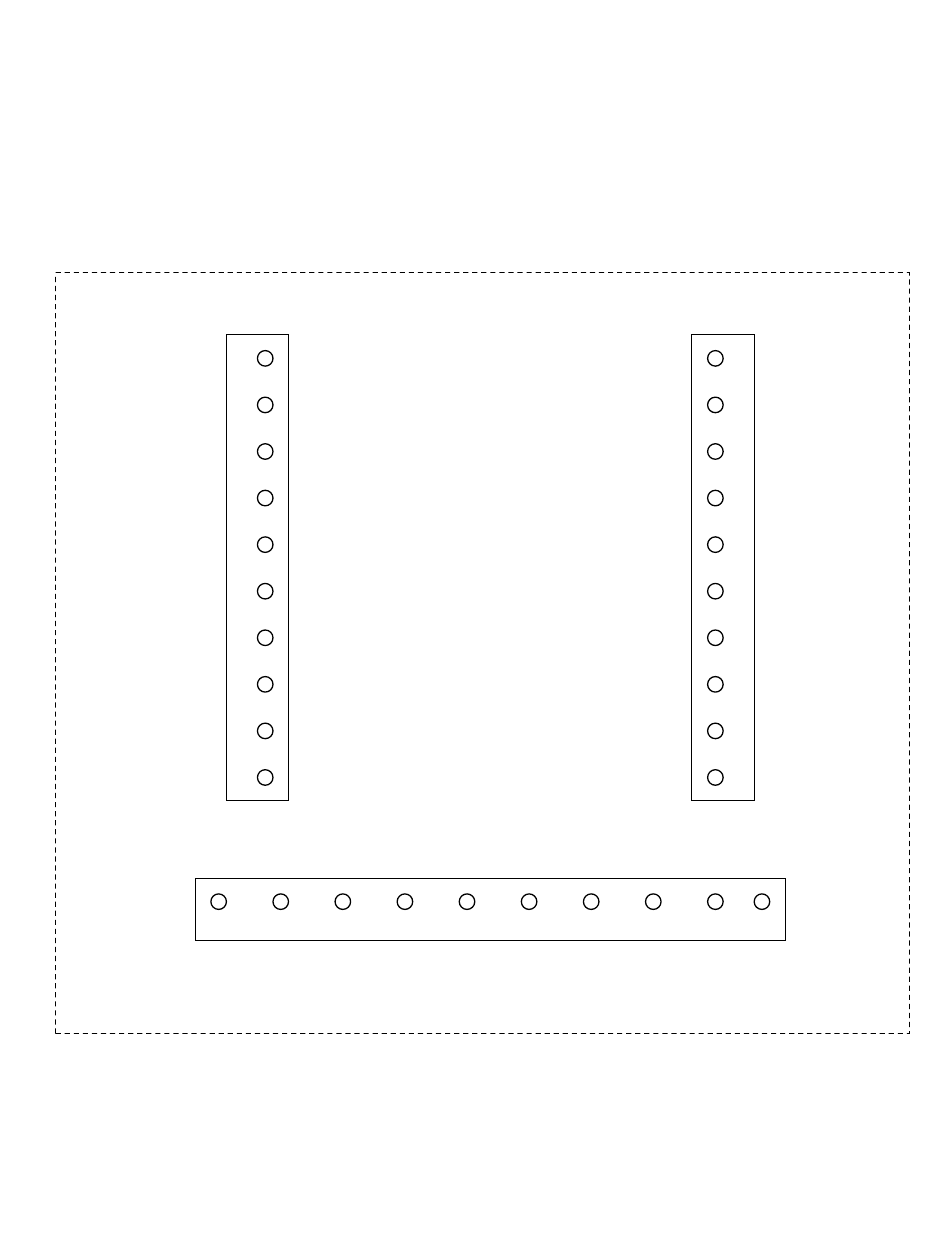

TERMINAL CONNECTIONS

POWER INPUT / OUTPUT BOARD
L N G SW-L SW-N SW-L SW-N
IN IN IN OUT OUT
L
IN IN OUT OUT OUT
5
+15 VDC IN
GND
RLY 1 COMM
RLY 1 NC
RLY 1 NO
RLY 2 COMM
RLY 2 NC
RLY 2 NO
+5 VDC OUT
GND
N G
