Fisher-Price Side-to-side BMK11 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

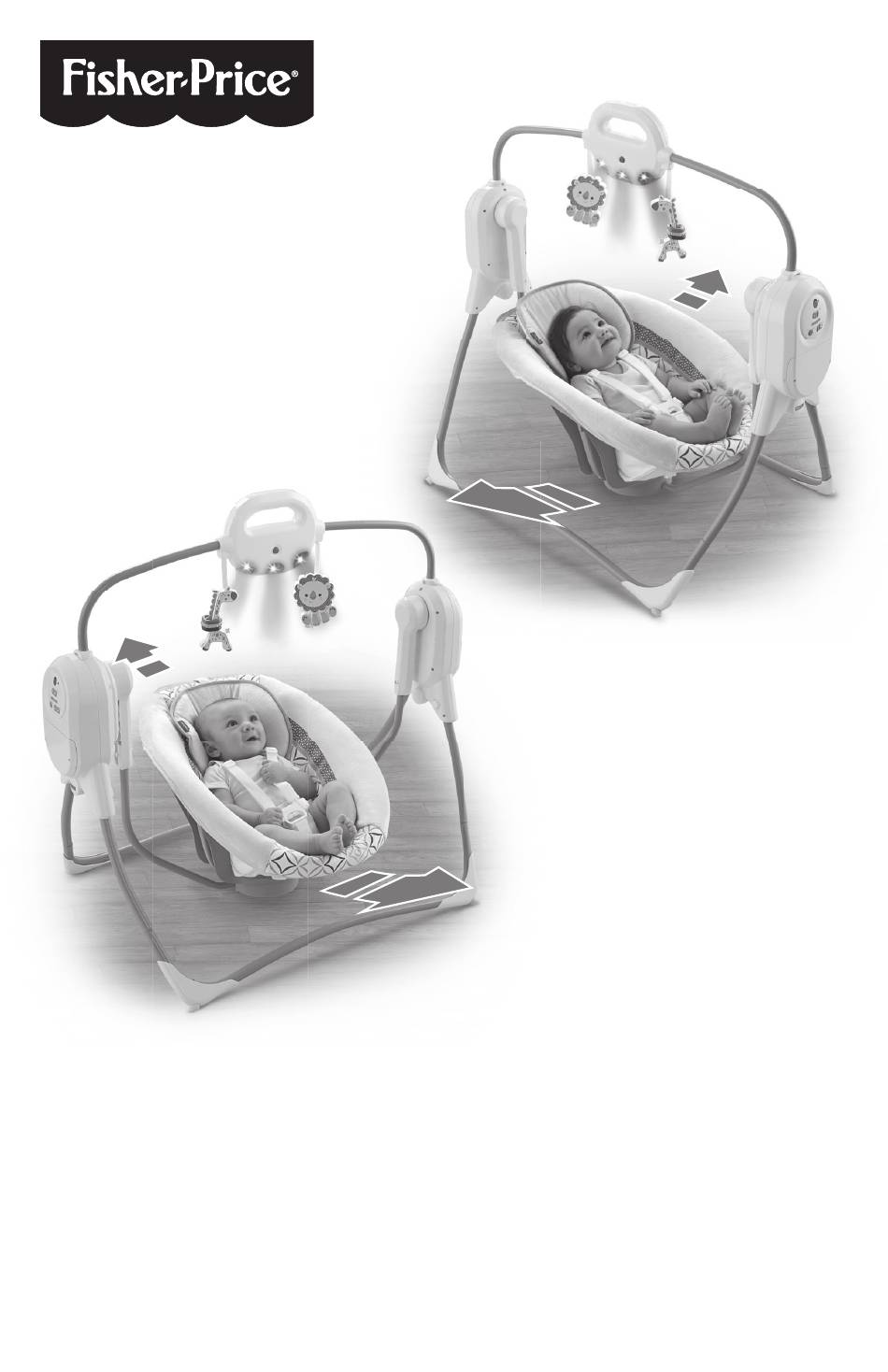

BMK11
Side-to-side
Head-to-toe
IMPORTANT! Please keep these instructions for future reference.
Please read these instructions before assembly and use of this product.
Adult assembly is required.
Tool needed for assembly: Phillips screwdriver (not included).
Requires four D (LR20) alkaline batteries and two AAA (LR03) alkaline batteries for
operation (batteries not included).
Product features and decorations may vary from photographs.
fisher-price.com
1

Advertisement

loading

Related Manuals for Fisher-Price Side-to-side BMK11

Summary of Contents for Fisher-Price Side-to-side BMK11

  • Page 1 Please read these instructions before assembly and use of this product. Adult assembly is required. Tool needed for assembly: Phillips screwdriver (not included). Requires four D (LR20) alkaline batteries and two AAA (LR03) alkaline batteries for operation (batteries not included). Product features and decorations may vary from photographs. fisher-price.com...

  • Page 2: Storage & Care

    PRESS PRESS • Press the buttons on each hub and push UNITED STATES the bases together for storage. 1-800-432-5437. Fisher-Price, Inc., • Lean the swing frame against a wall 636 Girard Avenue, East Aurora, NY 14052. for storage. Hearing-impaired consumers: •...
  • Page 3 IMPORTANT! Before each use or assembly, inspect this product for damaged hardware, loose joints, missing parts or sharp edges. DO NOT use if any parts are missing or broken. Contact Fisher-Price ® for replacement parts and instructions if needed. Never substitute parts.
  • Page 4 Parts Please remove all parts from the package and identify them before assembly. Some parts may be packed in the pad. 2 Hubs Seat Pad Seat Pad Seat Base S t B 2 Bases Seat Back Handle Seat Bottom #8 x ¾" (1,9 cm) Screw - 4 M5 x 31 mm Screw –...
  • Page 5 Assembly Hub Arms Bases • Fit the tubes on the hubs into the tubes on the bases. Hint: When assembled properly, the hub arms should face each other. Seat Bottom Seat Base • Fit the seat bottom onto the seat base. Hint: The seat bottom is designed to fit onto the seat base one way.
  • Page 6 Assembly Seat Back • Fit the seat back onto the seat base. Hint: The seat back is designed to fit onto the seat base one way. If it does not seem to fit, turn it around and try again. • Insert two #8 x ¾" (1,9 cm) screws into the seat back and tighten. Hub Arms •...
  • Page 7 Assembly • Insert an M5 x 31 mm screw into each hub arm and tighten. Handle • Fit the ends of the handle into the socket in each hub. • Insert an M5 x 31 mm screw into each hub and tighten.
  • Page 8 Assembly LOWEST SLOTS Waist Belts • Insert the waist belts through the lowest slots in the seat pad. Make sure the waist belts are not twisted. LOWER SLOTS Shoulder Belts Lower Slots Smaller Baby • Insert the ends of the shoulder belts through the lower slots in the seat pad back. Make sure the shoulder belts are not twisted.
  • Page 9 Assembly UPPER SLOTS Shoulder Belts Upper Slots Larger Baby • Insert the ends of the shoulder belts through the upper slots in the seat pad back. Make sure the shoulder belts are not twisted. • Fit the pad edges around the rim of the seat.
  • Page 10 Assembly • Fasten the buckles on the front of the seat pad to the buckles on the seat bottom. Make sure you hear a “click”.

  • Page 11: Battery Installation

    Battery Installation 1,5V x 4 D (LR20) Hint: We recommend using alkaline batteries for longer battery life. • Loosen the screws in the battery compartment door with a Phillips screwdriver and remove the battery compartment door. • Insert four D (LR20) alkaline batteries into the battery compartment. •...
  • Page 12 Using the Restraint System WARNING Prevent serious injury or death from falls or strangling in the restraint system: • Never leave child unattended. • This product is not intended to replace a crib or bassinet for prolonged periods of sleep. •...
  • Page 13 Using the Restraint System LOOSEN TIGHTEN • To tighten the waist belts: Feed the anchored end of the belt up through the buckle to form a loop . Pull the free end of the belt . Repeat this procedure to tighten the other belt.
  • Page 14 2 Swinging Motions Turn the seat for Turn the seat for side-to-side swinging. head-to-toe swinging. • Adjust the seat for side-to-side or head-to-toe swinging. Rotate the seat to the desired position.
  • Page 15 Press Press Power Switch Swing Speed Buttons Music/Sounds Volume Buttons Button Swing • Slide the power switch ON. • Press the swing speed buttons to select any of six speed settings. • Swinging will turn off after approximately four hours. Press a swing speed button to restart.
  • Page 16 Consumer Information FCC Statement (United States Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

This manual is also suitable for:

Head-to-toe bmk11
