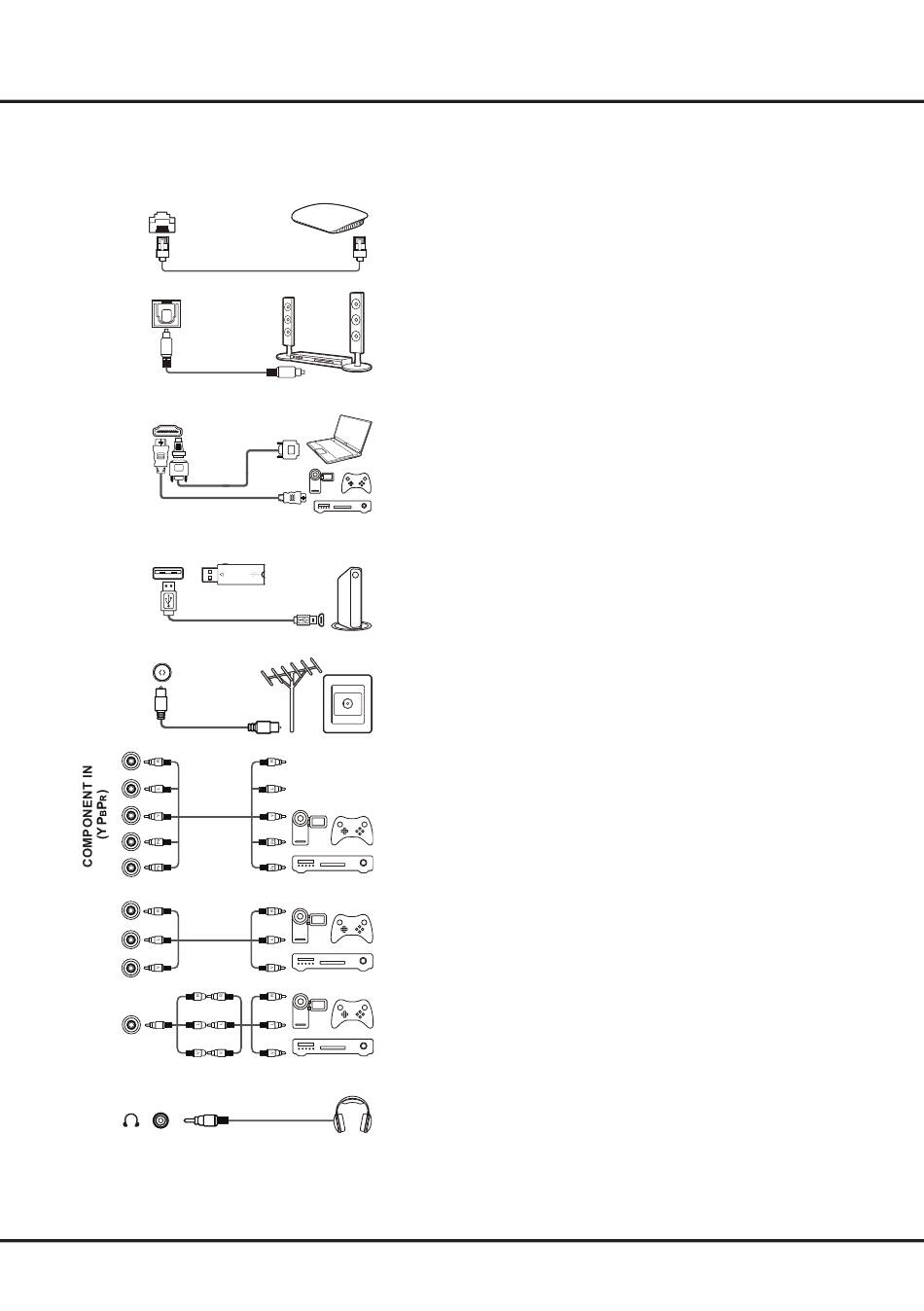

Sockets

Note: The location and names of the sockets on the TV may vary according to TV model, and not all sockets
available on all models.
LAN
SPDIF
HDMI
or
HDMI
(ARC)
USB 3.0 or
USB 2.0 or
USB 2.0
/SERVICE
ANTENNA
/CABLE IN
R
L
Y
P
B
P
R
R
AV IN
L
VIDEO
or
AV IN
adapter
LAN
This socket can be used to connect to external modem or network
Router / Modem
access equipment.
SPDIF socket (output)
This socket can be used to connect a compatible digital audio
receiver.
HDMI or HDMI(ARC) socket (input)
The HDMI (High-Definition Multimedia Interface) socket can be
used to connect a Blu-ray player, PC with a compatible video card
installed, certain DVD players or a high-definition compatible
digital satellite decoder. This socket provides an uncompressed
digital connection that carries both video and audio data by way
of an integrated mini-plug cable.
HDD
USB 3.0 or USB2.0 or USB 2.0/SERVICE socket (input)
These sockets can be used to connect a USB device.
Note: The number of USB sockets on the TV may vary according
to TV model.
ANTENNA/CABLE IN socket (input)
This socket can be used to connect the outside aerial or cable
network.
COMPONENT IN(YPBPR) sockets (input)
These YPbPr sockets can be used to connect a device that
has component video sockets, such as a DVD player. The
component sockets can recognize if the device you're connecting
to is Y Pb Pr compatible. The component sockets provide
excellent picture quality because the video is separated into three
independent parts.
AV IN adapter socket
The AV IN adapter socket can be used to connect the attached AV
adapter cable with VIDEO and AUDIO L & R IN sockets. The AV
IN sockets can be used to connect a range of equipment,
including video recorders, camcorders, decoders, satellite
receivers, DVD players, or games consoles. The VIDEO IN
socket provides composite video connection.
Headphone socket (output)
This socket can be used to connect headphones or stereo
earphones.
Warning: Excessive sound pressure from earphones and
earphones and headphones can cause hearing loss.
