SM 2610035801 08-14_SPT70WM 8/20/14 8:00 AM Page 1
IMPORT NT:
Read Before Using

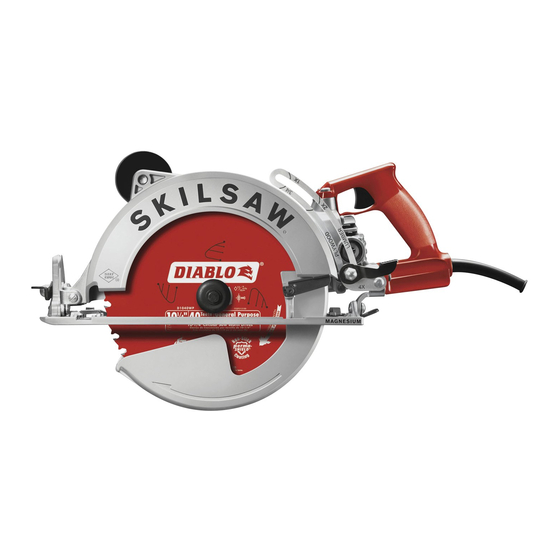

SPT70WM
Call Toll Free for
Consumer Information
& Service Locations
1-877-SKIL999 (1-877-754-5999) www.skilsaw.com
For English Version
See page 2
IMPORT NT :
Lire avant usage
Operating/Safety Instructions
Consignes d'utilisation/de sécurité
Instrucciones de funcionamiento y seguridad
Pour obtenir des informations
et les adresses de nos centres
de service après-vente,
appelez ce numéro gratuit
Version française
Voir page 19
IMPORT NTE:
Leer antes de usar
Llame gratis para
obtener información
para el consumidor y
ubicaciones de servicio
Versión en español
Ver la página 36

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPT70WM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for skilsaw SPT70WM

Summary of Contents for skilsaw SPT70WM

  • Page 1 & Service Locations de service après-vente, para el consumidor y appelez ce numéro gratuit ubicaciones de servicio 1-877-SKIL999 (1-877-754-5999) www.skilsaw.com For English Version Version française Versión en español See page 2 Voir page 19 Ver la página 36...

  • Page 2: General Power Tool Safety Warnings

    SM 2610035801 08-14_SPT70WM 8/20/14 8:00 AM Page 2 General Power Tool Safety Warnings Read all safety warnings and all instructions. Failure to follow the warnings W RNING and instructions may result in electric shock, fire and/or serious injury. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE The term “power tool”...

  • Page 3: Safety Rules For Circular Saws

    SM 2610035801 08-14_SPT70WM 8/20/14 8:00 AM Page 3 Disconnect the plug from the power source Keep cutting tools sharp and clean. Properly and/or the battery pack from the power tool maintained cutting tools with sharp cutting before making any adjustments, changing edges are less likely to bind and are easier to accessories, or storing power tools.
  • Page 4 SM 2610035801 08-14_SPT70WM 8/20/14 8:00 AM Page 4 This circular saw should not be mounted to Support large panels to minimize the risk of a table and converted to a table saw. blade pinching and kickback. Large panels Circular saws are not designed or intended to tend to sag under their own weight.

  • Page 5: Additional Safety Warnings

    SM 2610035801 08-14_SPT70WM 8/20/14 8:00 AM Page 5 Lower guard function as blade enters the material, the lower guard must be released. For all other sawing, the Check lower guard for proper closing lower guard should operate automatically. before each use. Do not operate saw if lower guard does not move freely and Always observe that the lower guard is close instantly.
  • Page 6 SM 2610035801 08-14_SPT70WM 8/20/14 8:00 AM Page 6 Symbols IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer. Symbol Name Designation/Explanation...
  • Page 7 SM 2610035801 08-14_SPT70WM 8/20/14 8:00 AM Page 7 Symbols (continued) IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

  • Page 8: Functional Description And Specifications

    Disconnect the plug from the power source before making any W RNING assembly, adjustments or changing accessories. Such preventive safety measures reduce the risk of starting the tool accidentally. SPT70WM Circular Saw FIG. 1 Calibrated Depth Bracket (Standard Lumber Sizes)
  • Page 9 Functional Description and Specifications Disconnect the plug from the power source before making any W RNING assembly, adjustments or changing accessories. Such preventive safety measures reduce the risk of starting the tool accidentally. SPT70WM Circular Saw FIG. 2 Fixed uxiliary Handle Brush Cap...
  • Page 10 SM 2610035801 08-14_SPT70WM 8/20/14 8:00 AM Page 10 Assembly ATTACHING THE BLADE 5. Reinstall OUTER WASHER. First tighten Disconnect the plug from BLADE BOLT finger tight, then TIGHTEN W RNING the power source before BLADE BOLT 1/8 TURN (45˚) WITH THE making any assembly, adjustments or WRENCH PROVIDED.

  • Page 11: Depth Adjustment

    SM 2610035801 08-14_SPT70WM 8/20/14 8:00 AM Page 11 MOUNTING ADjUSTABLE AUxILIARy HANDLE Disconnect plug from power source. Place the adjustable auxiliary handle onto the threaded hole on the upper guard, facing either right or left preference (Fig. 4). Screw clockwise until handle is tightly in place.

  • Page 12: Bevel Adjustment

    SM 2610035801 08-14_SPT70WM 8/20/14 8:00 AM Page 12 BEVEL ADjUSTMENT FIG. 7 Disconnect plug from power source. The foot can be adjusted up to 45° by loosening the Quadrant bevel adjustment lever at the front of the saw. Align to desired angle on calibrated quadrant and then tighten bevel adjustment lever (Fig.

  • Page 13: Wrench Storage

    SM 2610035801 08-14_SPT70WM 8/20/14 8:00 AM Page 13 WRENCH USAGE FIG. 10 Wrench provided has several functions other than loosening/tightening the blade bolt (Fig. 10). 1. Loosening/tightening blade bolt (1/2” wrench). 2. Loosening/tightening oil plug (1/2” wrench). 3. Loosening/tightening brush caps (slotted driver).
  • Page 14 SM 2610035801 08-14_SPT70WM 8/20/14 8:00 AM Page 14 SWITCH After completing a cut and W RNING When starting the tool, trigger been W RNING hold it with both hands. released, be aware of the necessary time it The torque from the motor can cause the tool takes for the blade to come to a complete to twist.
  • Page 15 SM 2610035801 08-14_SPT70WM 8/20/14 8:00 AM Page 15 CUTTING LARGE SHEETS Large sheets and long boards sag or bend, FIG. 13 depending on support. If you attempt to cut without leveling and properly supporting the piece, the blade will tend to bind, causing KICK- BACK and extra load on the motor (Fig.

  • Page 16: Maintenance

    SM 2610035801 08-14_SPT70WM 8/20/14 8:00 AM Page 16 Maintenance To avoid accidents always disconnect the tool from the power supply W RNING before cleaning or performing any maintenance. Service CARBON BRUSHES The brushes and commutator in your tool have Preventive maintenance W RNING been engineered for many hours of performed by unauthorized...

  • Page 17: Care Of Blades

    Unless you are experienced in sharpening blades, we recommend you do not try. TWIST-TO-LOCK CONNECTOR INSTRUCTIONS FOR MODEL SPT70WM CODE 72 ONLy 20 AMP, 125 VOLT “TWIST-TO-LOCK” The Model SPT70WM code 72 is equipped with FIG. 18 a “Twist-To-Lock” male connector as shown (Fig.

  • Page 18: Troubleshooting

    SM 2610035801 08-14_SPT70WM 8/20/14 8:00 AM Page 18 Trouble Shooting Read instruction manual first! Remove plug from the power source before W RNING making adjustments or assembling the blade. TROUBLE: SAW WILL NOT START PROBLEM 1. Power cord is not plugged in. 2.
