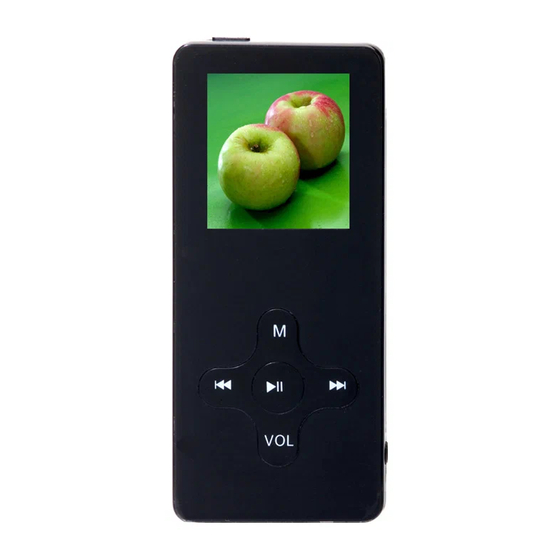

ODYS MP3 player X10i

Table of contents

1 Contents of package ....................................................2
2 Introduction ..................................................................4
3 Getting started .............................................................6
3.1
Controls.........................................................................6
3.2
Battery status ................................................................7
3.3
Display and Symbols ....................................................8
3.4
Installing the driver ........................................................9
3.5
3.6
Transferring files MP3 player - PC............................... 10
3.7
Disable the MP3 Player from the PC ........................... 12
4 Operation ...................................................................13
4.1
Switching the MP3 player on and off ........................... 13
4.2
Music Mode ................................................................. 14
4.3
Photo Mode ................................................................. 17
4.4
Digital audio recording (Voice Mode)........................... 19
4.5
System settings (Setup) .............................................. 21
4.6
Deleting files (File)....................................................... 24
5 Troubleshooting .........................................................25
6 Specifications.............................................................27
7 Safety instructions......................................................28
Warranty conditions....................................................29
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X10i and is the answer not in the manual?

Questions and answers

Related Manuals for Odys X10i

Summary of Contents for Odys X10i

  • Page 1: Table Of Contents

    ODYS MP3 player X10i Table of contents 1 Contents of package ............2 2 Introduction ..............4 3 Getting started .............6 Controls.................6 Battery status ..............7 Display and Symbols ............8 Installing the driver ............9 Load the battery via the USB connection.......9 Transferring files MP3 player - PC....... 10 Disable the MP3 Player from the PC ......

  • Page 2: Contents Of Package

    ODYS MP3 player X10i Contents of package Please ensure that the following items are included in the box. If the package is not complete, please contact your dealer: USB cable Headphones ODYS MP3-Player X10i CD-ROM User manual Warranty card 3.5mm Adaptor...
  • Page 3 ODYS MP3 player X10i...

  • Page 4: Introduction

    ODYS MP3 player X10i Introduction Thank you for choosing our product. Please read this manual carefully before use to make best use of all functions of the product and to guarantee that it has a long service life. Please store the manual in a safe place for later reference.
  • Page 5 Any firmware updates for this MP3 player are also made available on our website. If you have questions or problems, please read the FAQs on our website or contact our customer support service support@odys.de.

  • Page 6: Getting Started

    ODYS MP3 player X10i Getting started Controls Familiarise yourself with the controls of your MP3 player before use. On/Off Display MODE PLAY Microphone PREV << NEXT >> USB - connector Headphone connection Key Functions PLAY : On/off, play, pause, stop, end the menu...

  • Page 7: Battery Status

    The internal battery may be charged by connecting to a free PC USB- Port or by using an optional power pack / charger (included with X10i Plus) sold seperatly (see Chapter 3.5). The power pack / charger is available and may be ordered from our web site www.odys.de.

  • Page 8: Display And Symbols

    ODYS MP3 player X10i Display and Symbols Overview of the Display The Display shows a variety of information on the current track, the running time and the system settings. The symbols are explained below. Music Mode Volume Battery status Repeat mode...

  • Page 9: Installing The Driver

    ODYS MP3 player X10i Installing the driver When using Windows 98SE, you must first install the correspondding driver found on the CD-ROM before connecting the MP3 player to your computer. Connect the MP3 player to your PC using the USB cable.

  • Page 10: Transferring Files Mp3 Player - Pc

    ODYS MP3 player X10i Transferring files MP3 player - PC Connect the MP3 player to your PC using the supplied USB cable. Open the Windows Explorer or double-click My Computer. Select folders or files to be transferred and drag them to the removable data storage symbol of the MP3 player (download to root directory).
  • Page 11 ODYS MP3 player X10i PLease note that the device's main directory can only control a maximun of 150 entries (Folders and Files). If you wish to save more titels then you will have to create sub-folders. In these sub- folders you can save as many files as you deem necessary.

  • Page 12: Disable The Mp3 Player From The Pc

    ODYS MP3 player X10i Disable the MP3 Player from the PC Disable the digital MP3 player from the operating system correctly using the “Remove Hardware Safely” option Click the task bar on the right-hand side below the symbol and select the “Remove USB Mass Storage Device –...

  • Page 13: Operation

    ODYS MP3 player X10i Operation Switching the MP3 player on and off Switching the MP3 player on Hold the PLAY key down for approx. one second until the Display illuminates and a greeting is displayed. The MP3 player is now in stop status.

  • Page 14: Music Mode

    ODYS MP3 player X10i Music Mode Playback, forwards/back, pause, stop Insert one sets of headphones in the headphone connections and turn the player on. The player is now in stop status. Press the PLAY button to play the track showed. The track information (ID3 tag) is scrolled on the Display.
  • Page 15 ODYS MP3 player X10i Repeat mode While in music playback, pause or stop state, briefly press the MODE button and use << >> to select the Repeat mode (Repeat). Briefly press MODE to switch to the Repeat sub- menu. Use << >> to select the desired mode (No Repeat, One, All, RandomAll, DirRepOne, DirRep, DirRanAll).
  • Page 16 ODYS MP3 player X10i Lyric Function Your player supports synchronous lyric display when playing MP3 files. The file name of the separate lyric files (*.lrc) must coincide with the file name of the relevant mp3 file (*.mp3) and the lyric file must be in the same folder.

  • Page 17: Photo Mode

    ODYS MP3 player X10i Please note that the device's main directory can only control a maximun of 150 entries (Folders and Files). If you wish to save more titels then you will have to create sub-folders. In these sub- folders you can save as many files as you deem necessary.
  • Page 18 ODYS MP3 player X10i switch to the main menu. Use the << >> keys to select the photo mode and confirm using the MODE key. The display will now show the player’s folders and image files (browser screen). If there are no visible files then the player memory is empty.

  • Page 19: Digital Audio Recording (Voice Mode)

    ODYS MP3 player X10i Digital audio recording (Voice Mode) Your MP3 player can also be used as a digital dictaphone. This allows you to record important ideas or thoughts when away from home, so you don’t forget them. Press the MODE key of the turned-on player for approx. 1 sec. to switch to the main menu.
  • Page 20 ODYS MP3 player X10i Voice playback You can listen to the voice recording immediately by pressing the PLAY key. If the player is in another mode, you can play your voice recording by switching to voice mode via the main menu (as described above.

  • Page 21: System Settings (Setup)

    ODYS MP3 player X10i System settings (Setup) The mode Setup allows you to change important system settings for your MP3 player. It contains a total of 5 options. Press the MODE key of the turned-on player for approx. 1 sec. to switch to the main menu.
  • Page 22 ODYS MP3 player X10i Always on press the VOL key to activate or deactivate the function. Confirm using the MODE button again. If the Always on option is deactivated, the player will shutdown at the end of the set shutdown duration even if music is being played (Sleep Timer).
  • Page 23 ODYS MP3 player X10i Voice Recording Quality (Record) Briefly press MODE to switch to the Record sub-menu. The << >> keys are used to set the desired speech quality (High, Normal and Low). Confirm the setting with the MODE key.

  • Page 24: Deleting Files (File)

    ODYS MP3 player X10i Deleting files (File) In the File mode you can directly delete files saved on your MP3 player. Press the MODE key of the turned-on player for approx. 1 sec. to switch to the main menu. Use the << >> keys to select the File mode and confirm using the MODE key.

  • Page 25: Troubleshooting

    ODYS MP3 player X10i Troubleshooting Symptoms Cause and solution Without power. Whether the battery is enough. Please confirm whether turn on the player. Without sound inside Please confirm the volume is not in the status of earphone. Zero and the connection of earphone is ok.
  • Page 26 ODYS MP3 player X10i connected to a USB installations CD. When connected to the PC, constantly hold down the "MINUS" button of the port. player and run the update. The MP3-Player shuts off Fully recharge the player. Charging the player after a short period of fully will take approximately 3-4 hours.

  • Page 27: Specifications

    ODYS MP3 player X10i Specifications 1 GB, 2 GB Internal memory Integrated flash memory Formats MP3, WMA, WAV, JPEG Record format Voice recording Record time approx. 8 hours (128 MB) Battery Li-Ion Battery life approx. 5 hours Power supply externally...

  • Page 28: Safety Instructions

    ODYS MP3 player X10i Safety instructions Although this product is safe, please observe the following information and warnings. Do not expose the device to direct sunlight, extreme heat or cold, damp or dusty conditions. Malfunctions and damage and can occur as a result..

  • Page 29: Warranty Conditions

    ODYS MP3 player X10i Warranty conditions The following conditions comprise the requirements and scope of our warranty conditions and do not affect our legal and contractual warranty obligations. We offer a warranty on our products in accordance with the following conditions: 1.
  • Page 30 ODYS MP3 player X10i 1. Send the product suitably packaged with carriage and insurance paid. Do not enclose any accessories with the products (no cables, CD's, memory cards, manuals, etc.), unless the AXDIA Service Centre specifies otherwise. 2. Mark the RMA number on the outside of the package in such a way that it is visible and clearly legible.
