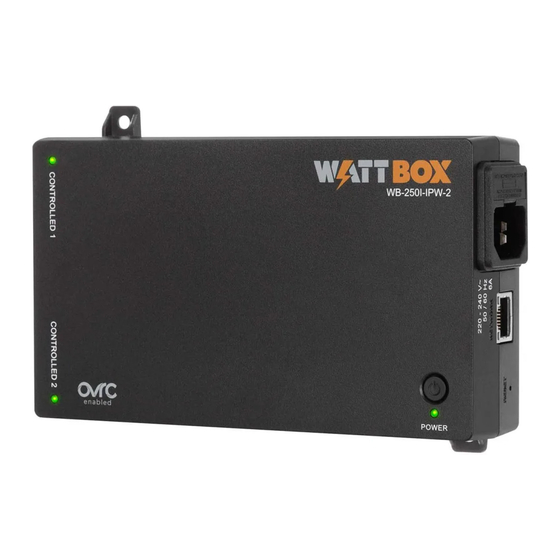

WattBox® 250-Series Wi-Fi Surge Protector
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 250 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for WattBox 250 Series

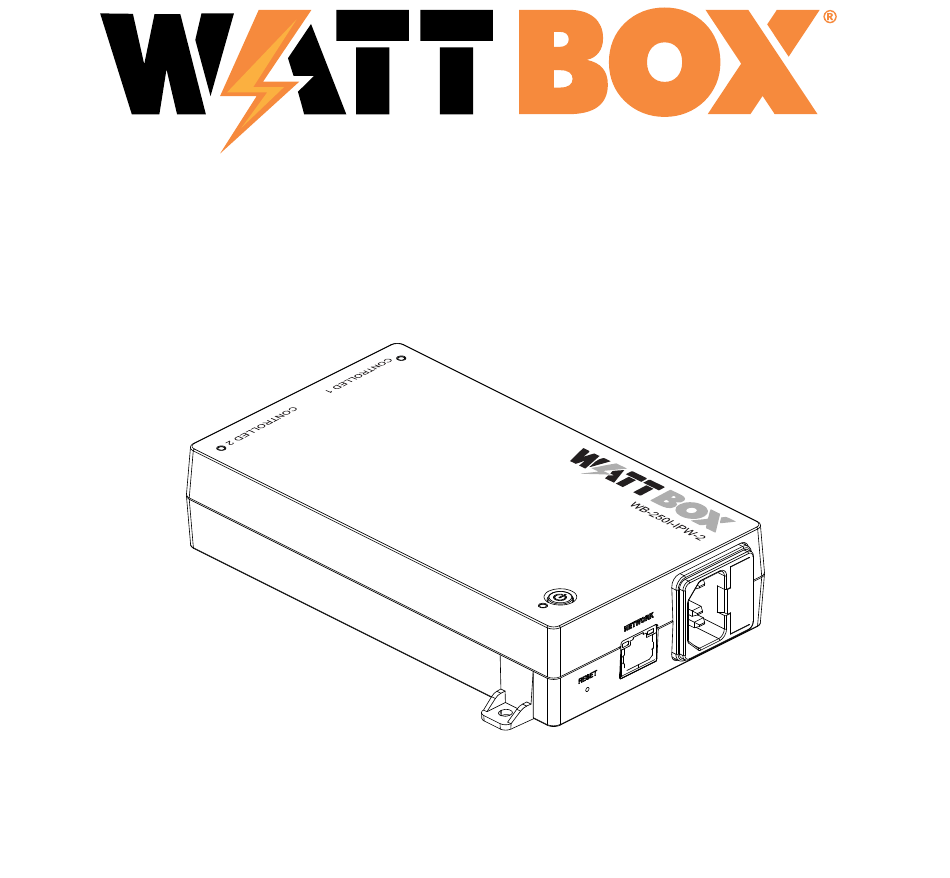

  • Page 1 WB-250I-IPW-2 WattBox® 250-Series Wi-Fi Surge Protector Quick Start Guide...
  • Page 2 Anatomy WB-250I-IPW-2...
  • Page 3 A. Outlet LEDs: These illuminate when power to the matching outlet is on. The outlets are switchable (IP controlled). B. AC Power Button: Press to manually toggle the outlets on or off. C. Power/Network LED: See “Power/Network” on page 4. D.
  • Page 4: Led Indicators

    Off: Outlets is off. Note: Each outlet is controllable. Solid Green: The WattBox is powered on and outlets are protected. Surge Off: The WattBox is not powered on, or the MOVs have opened, removing Protection LED power from the outlets.
  • Page 5: Package Contents

    Use the screws and anchors provided to install the unit on a wall as pictured to the right. Use double-sided tape, hook and loop closures, or cable ties (not provided) to attach the WattBox to a surface. CONTROLLED 1 CONTROLLED 2...
  • Page 6: Connection Diagram

    Connection Diagram Web Browser Access Router Mobile Apps WattBox Configuration The WB-250I has many powerful features that are accessed through OvrC, our award-winning remote management tool. If you are not familiar with OvrC, visit ctrl4.co/ovrc to learn more.
  • Page 7: Logging In To The Web Interface

    You must enter the username and password to access the web interface. The default entries are below; change these to maintain proper security (and log them below). Default Custom Username wattbox Password wattbox Note: The new password can be no longer than 15 characters.
  • Page 8 Optional Steps for Wireless Operation Note: This device only connects to Wi-Fi when it does not detect a wired connection. While still connected to the ethernet cable, open a web browser and navigate to the IP address of the WB-250I, then log in to its local interface. On the Configure page click Enable Wireless, then go to Wireless IP Settings and click the Scan button.
  • Page 9: Troubleshooting

    Replace the WattBox. consumed during a surge event. WattBox is sharing Speakers emit Connect the WattBox to a dedicated outlet. power with gear a humming or Unplug components one at a time to see if the noise that is not properly buzzing noise.
  • Page 10: Specifications

    Specifications Outlet Type IEC 60320 C13 Number of Outlets Number of IP Controllable Outlets Line Voltage 220–240VAC, 50/60Hz AC Input Connection IEC 60320 C14 Fuse Rating 10A, 250VAC Power Rating 1440W Current Rating Voltage Protection Rating L–N 1.2kV, L–E 2.3kV, N–E 1.9kV Joule Rating 1260J Surge Component...
  • Page 11 EMI/RFI Noise Filtration Outlet Filter Operating Temperature Range −10 °C to 40 °C (−14 °F to 104 °F) CE Certified Certifications RCM Certified CB Safety Certified 169 mm (6.65") × 36.1 mm (1.42") × 117.52 mm Dimensions (WxHxD) (4.63")
  • Page 12 Snap One, LLC (formerly known as Wirepath Home Systems, LLC), in the United States and/or other countries. 4Store, 4Sight, Control4, Control4 My Home, SnapAV, OvrC, and WattBox are also registered trademarks or trademarks of Snap One, LLC. Other names and brands may be claimed as the property of their respective owners.
