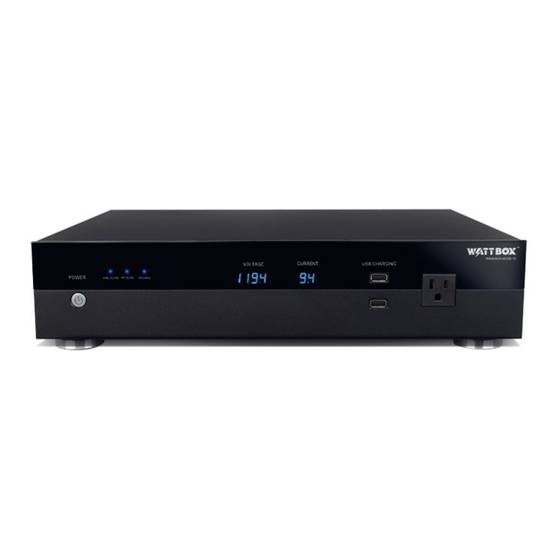

WattBox WB-600CH-SVCE-12 Owner's Manual

POWER
SAFE VOLTAGE PROTECTED GROUNDED
Key Features
Surge Protection with Fireproof MOVs – Advanced
Ceramic MOV technology reduces risk of fire from surges.
Surge Disconnect – In the event of a catastrophic surge
event, the WattBox™ component will sacrifice itself and
permanently disconnect AC Power.
Safe Voltage Monitoring – WattBox™ components
equipped with Safe Voltage Monitoring will automatically
disconnect system equipment from harmful over and under
voltages. When the Input voltage returns to a safe level, the
equipment will be reconnected..
Sequential Power – Protects against harmful speaker pop
and blown circuits by sequentially turning equipment on
and off (WB-600-SVCE-12).
Noise Filtration – Eliminates AC noise to improve picture
and sound quality.
Isolated Filtration Banks – Outlet banks are isolated
from one another to prevent cross-contamination between
components.
Welcome to Wattbox™
WattBox™ power products are designed specifically to provide customers with advanced protection for their valuable
electronics and Custom Integrators with maximum flexibility for installation. Rest assured that WattBox™ products will
deliver the protection and safety for your customers' needs. All WattBox™ products are UL certified and built with the
highest quality components available such as Fireproof MOVs.
Whether in a rack, a structured wiring enclosure, on a shelf, or behind a flat screen, the versatile mounting options
allows simple installation of WattBox™ for easily managing power cords, adapters and signal cables. WattBox™ is
the ideal choice for Custom Integrators who demand reliability, safety, and flexibility when installing power products for
their valued customers.
© 2013 Wattbox
™
™
VOLTAGE CURRENT
High Current Outlets – Designed for equipment with high
current demands such as amplifiers and subwoofers.
12V Trigger IN – Allows source components to control the
switched outlets of WattBox™ 600 Series.
12V Trigger OUT – Provides 12V signal to control source
equipment or another WattBox™ 600 Series device for
sequencing of equipment.
Flexible Power Cord – WattBox™ power cords are both
flexible and durable, and designed for ease of installation.
Secondary Protection – Protected 3 GHz signal coax/
satellite connections plus ethernet / telephone connections.
Rack or Shelf Positioning – Flexible options allows for
rack mounting or placement on a shelf. Rack ears and
removable feet are included with every WattBox™ Chassis
Model.
See Positioning Options on Pg. 4.
WATTBOX™ 600 Chassis Series Owners Manual
WB-600CH-SVCE-12
USB CHARGING
OWNERS MANUAL
WB-600CH-SVCE-12
SURGE
SURG E
PROTECTOR
PRO TEC TOR
$50,000
$50,000
See Specifications for Individual Amounts
