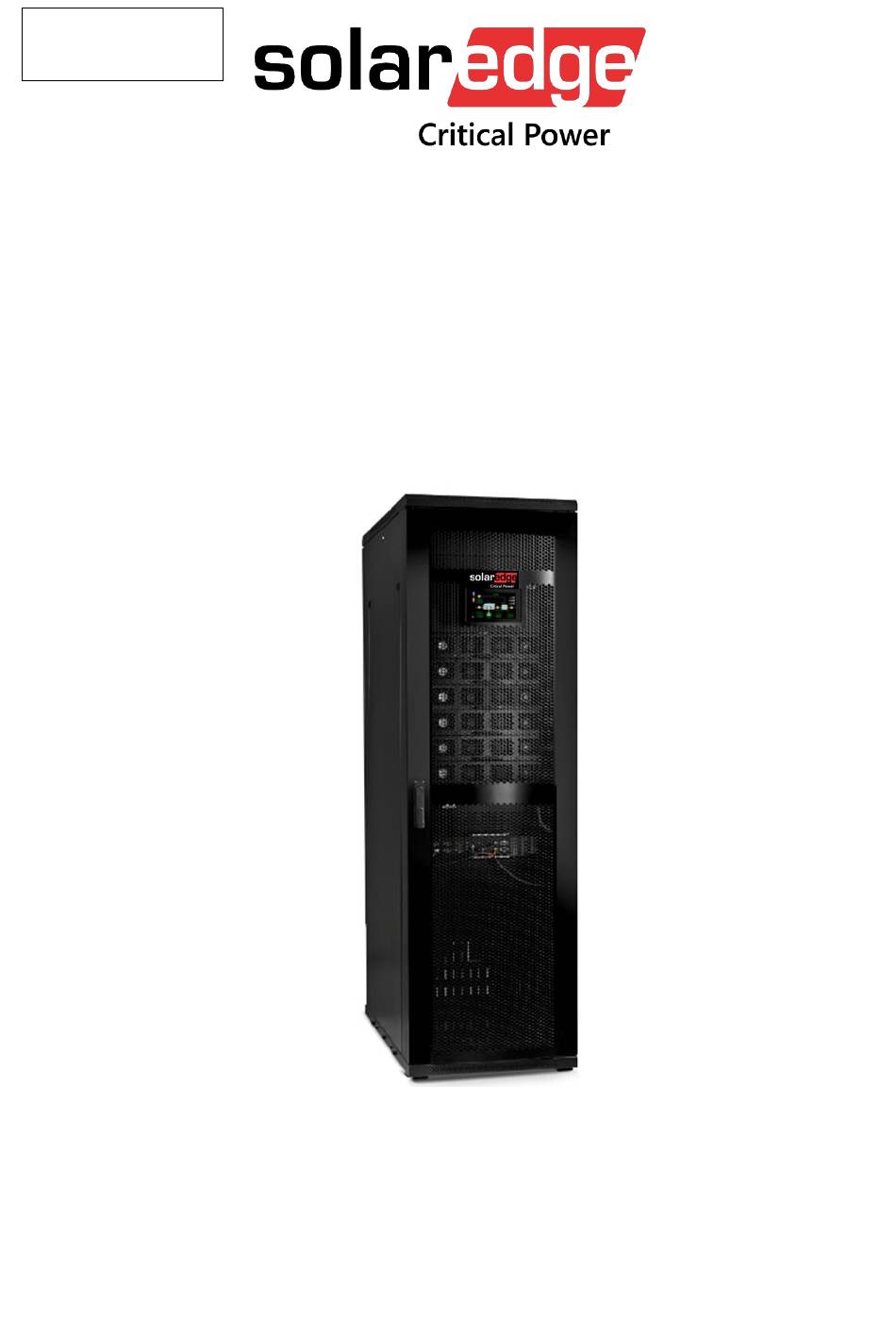

Page 1 This user guide is for products B300 HREE HASE ODULAR 400V FOR THE GRID B300 USER GUIDE Revision 4, April 2021 (Doc. 2MUM-B300U)
Page 2 Remember to register your product at: https://criticalpower.solaredge.com/warranty in order to activate your warranty.
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY PRECAUTIONS ..........................12 1.1. ’ ................................12 1.2. ’ ................................14 SOLAREDGE THREE PHASE MODULAR UPS FOR 400VAC ................15 2.1............................. 16 YSTEM STRUCTURE OVERVIEW OF SYSTEM COMPONENTS....................... 19 3.1............................19 YSTEM CONTROLLER 3.2.
Page 4 Turn off ECO Mode ..........................34 6.3.9. UPS START-UP/SHUTDOWN ........................35 7.1. UPS ( ) ......................35 WITCH ON NOT FIRST TIME START 7.2. ) ......................36 TOTAL SHUTDOWN OUTPUT UPS MENU FUNCTIONS ..........................37 8.1..........................39 ASSWORD EQUIREMENTS 8.2.
Page 5 8.2.3.2.2. Set battery current limit value ........................61 8.2.3.2.3. Minimum DC voltage at current limit ......................62 Setup > Battery end-of-backup voltage limit ....................63 8.2.3.3. Setup > Battery > Battery low limit voltage...................... 64 8.2.3.4. Setup > Battery > Battery capacity in Ah ......................64 8.2.3.5.
Page 6 Setup > Dry contacts > Output dry contacts ....................98 8.2.9.2. 8.2.9.2.1. Location of the output dry contacts......................101 8.2.9.2.2. Output dry contacts in action ........................101 8.2.9.2.3. Testing an output dry contact ........................101 Generator Mode setup ........................... 101 8.2.9.3.
Page 7 LIST OF FIGURES Figure 1: B300 Model – Major Components (Front View) ................16 Figure 2: Connection Terminals (perspective view) ..................17 Figure 3: B300 model - Connection terminals (rear view) ................17 Figure 4: System menu screen ........................25 Figure 5: Operation option ..........................
Page 8 Figure 43: Next Battery Test Start Time ......................60 Figure 44: Setup, Battery, Battery Current ....................61 Figure 45: Enable/Disable Current Sensors ....................61 Figure 46: Battery Current Limit Value......................62 Figure 47: Minimum DC voltage at current value ..................63 Figure 48: Setup, Battery End of backup voltage limit ..................
Page 9 Figure 86: Setup, Output Dry Contacts ......................98 Figure 87: Example of an output dry contact linked to an alarm ............... 101 Figure 88: Generator Mode Setup screen ....................102 Figure 89: Setup > Save & Restore options ....................103 Figure 90: Setup, Authorization ........................
Page 10 Figure 129: Time function on the System menu ..................139 Figure 130: System menu > Language option .................... 140 LIST OF TABLES Table 1: Key to Figure 3 ..........................17 Table 2: Key to Figure 4 ..........................25 Table 3: Description of email parameters ....................87 Table 4: Alarms that can trigger output dry contacts ..................
Page 11 TANDARDS AND ONVENTIONS This user manual contains diagrams which include images of the display screen of the  UPS. Unless otherwise indicated, the readings shown in the screen images are only illustrative, and are not intended to match the readings on a specific system in any particular environment.
Page 12: Safety Precautions
1. Safety Precautions The UPS system is designed for a wide range of environments. Nevertheless, the modular UPS should be handled with care, according to the following guidelines. 1.1. Do’s Read this manual carefully before starting installation and operation of the UPS. ...
Page 13 If you remove a power module from the UPS while the module is operating, wait five  minutes before reinserting the module. This allows the module’s capacitors time to discharge. FAST FUSES (SEMICONDUCTOR FUSES) must be used between the battery and the UPS – ...
Page 14: Don'ts
1.2. Don’ts Do not open the cover of the UPS or the battery cabinets under any circumstances. All  UPS panels and doors should be closed. Do not insert any objects through the ventilation holes.  Do not put objects on the UPS. ...
Page 15: Solaredge Three Phase Modular Ups For 400Vac
2. Solaredge three phase modular UPS for 400Vac In general, an Uninterruptible Power Supply (UPS) provides backup power for use when the utility AC electric power mains fail or drop to an unacceptable voltage level. A Solaredge UPS does this and much more.
Page 16: System Structure
2.1. System structure Solaredge three phase modular UPS comes in various base models that have a maximum power capacity of 300kVA. The UPS includes from one to ten UPS power modules, each supplying 30 kVA. In addition to the power modules, the UPS includes: 1.
Page 17: Figure 2: Connection Terminals (Perspective View)
Static switch Dry contacts Circuit breakers Batteries Figure 2: Connection Terminals (perspective view) Figure 3: B300 model - Connection terminals (rear view) Table 1: Key to Figure 3 UPS for 400 Vac Grid, User Guide, doc. rev. 4...
Page 18 ESCRIPTION Protective earth (ground) bus bar Neutral and midpoint terminals AC RECTIFIER INPUT terminals (L1, L2, L3) BYPASS INPUT terminals (L1, L2, L3) AC OUTPUT terminals (L1, L2, L3) BATTERY terminals (positive, midpoint, negative). UPS for 400 Vac Grid, User Guide, doc. rev. 4...
Page 19: Overview Of System Components
3. Overview of System Components This section provides a brief overview of the role and function of the UPS primary components. It includes the following sections: 1. System controller (includes LCD control panel) 2. UPS module (30 kVA / 30 kW) 3.
Page 20: Battery
The UPS supports the use of standard lead-acid batteries, and also lithium-ion batteries. If you plan to use lithium-ion batteries you must supply your own BMS (Battery Management System), and you must follow Solaredge special instructions for lithium-ion battery setup.
Page 21: Overview Of Operating Modes
4. Overview of Operating Modes The UPS functions to supply AC electrical power to your load. The UPS has five possible modes of operation: 1. Normal mode 2. Battery mode 3. Bypass mode 4. ECO mode 5. Maintenance Bypass mode The following sections provide a short summary of the function and purpose of each mode.
Page 22: Optional ) Maintenance Bypass Mode
The advantage of operating a UPS in ECO mode is that, in effect, the UPS operates as a stand-by UPS, not making use of the rectifier and the inverter most of the time, aside from possibly charging the batteries. In ECO mode the UPS can provide a cost savings of at least 2 or 3 percent of power consumption.
Page 23: Emergency Power Off - Epo (Manual)
5. Emergency Power off – EPO (manual) An external Emergency Power off (EPO) switch may be installed on the UPS by the customer. The EPO switch is used to cut power to the load in emergency situations. The switch or push button must be a normally open type.
Page 24: Restarting The Ups After Epo
For additional information, refer to the Battery Trip Coil section in the Installation Guide. 5.4. Restarting the UPS after EPO After the emergency situation that prompted use of the EPO switch has been resolved, the UPS can be restarted as follows: 1.
Page 25: Ups User Interface
6. UPS User Interface The UPS control system provides the user complete control over the UPS and its operating parameters. This chapter describes the most important and most frequently-used functions. 6.1. System menu (LCD home) screen The System menu is the user's starting point for most operations. Figure 4: System menu screen Figure 4 illustrates the System menu and Table 2 explains the System menu's features.
Page 26: System Menu Highlights
Alarm indicator. If you select the active alarm indicator icon in the System menu screen, a list of active alarms are displayed. If there are no active alarms the alarm indicator icon does not appear on the System menu screen. The following explains what each alarm indicator icon represents: When there are one or more active critical alarms (i.e.
Page 27: Operation Menu
For detailed information about menu options, refer to Chapter 8. Operation menu 6.2.1. Selecting the Operation option from the System menu is used to turn the UPS on or off or transferring the load to bypass. Figure 5: Operation option Refer to Section 8.3 for a full description of all of the Operation menu functions.
Page 28: Setup Menu
Figure 7: The Status screen Indicator Meaning This symbol indicates the current power flow through the UPS. This symbol indicates an alarm condition related to the UPS component where the triangle is located. Selecting the component will provide more detailed information about the problem. Clicking on the various parts of the diagram reveals more detailed information, including present voltage and current readings.
Page 29: Time
Figure 8: Setup option Most of the operations available in Setup are relevant to the service technician; however some are relevant to maintenance users. For a complete description of all Setup menu functions, see Section 8.2. Time 6.2.3.1. Select on the Time icon on the System menu to see the system time, the time zone setting (relates to when daylight savings time goes into effect), and the accumulated operational time.
Page 30: Dry Contacts
Dry contacts 6.2.3.2. The Dry Contact function under the Setup option assigns alarm conditions to the input and output dry contacts. Figure 10: Dry Contacts option When the specified alarm occurs, the contact closes. The output dry contacts can be used to trigger external devices.
Page 31: Log Menu
Log menu 6.2.5. Select the Log icon on the System menu to view the system log. The system log lists all of the important system events that have occurred since the last time the log was initialized. Figure 12: Log option Events listed include system power-up and power-down and the start and end of all alarm conditions.
Page 32: Turn Off Ups
Figure 13: Turn on UPS option Turn off UPS 6.3.2. Figure 14: Turn off UPS option Turn off power modules 6.3.3. Figure 15: Turn off power modules option Turn on power modules 6.3.4. Figure 16: Turn on power modules option UPS for 400 Vac Grid, User Guide, doc.
Page 33: Transfer Load To Bypass
Transfer load to bypass 6.3.5. Figure 17: Transfer load to bypass option Transfer load to inverter 6.3.6. Figure 18: Transfer load to inverter option Battery test 6.3.7. Figure 19: Battery Test option Turn on ECO Mode 6.3.8. Figure 20: ECO mode on UPS for 400 Vac Grid, User Guide, doc.
Page 34: Turn Off Eco Mode
Turn off ECO Mode 6.3.9. Figure 21: ECO mode off option UPS for 400 Vac Grid, User Guide, doc. rev. 4...
Page 35: Ups Start-Up/Shutdown
7. UPS start-up/shutdown 7.1. Switch on UPS (not first-time start-up) This section explains the start-up procedures for the operator after a shutdown of the UPS. A shutdown could occur due to battery exhaustion following an extended power outage or due to a manual shutdown by a technician prior to maintenance on the UPS.
Page 36: Ups Total Shutdown (No Ac Output)
While waiting, you can press the Status icon to see a display of the System Status. The status description at the top of the screen should be "UPS ON, Bypass mode (Activation)". Once all power modules are operational the system transfers the load to the inverters and the status description becomes "UPS ON, Normal mode".
Page 37: Ups Menu Functions
8. UPS menu functions The LCD control panel is the user's main interface with the UPS. The LCD panel is touch-sensitive. The user navigates through system screens by lightly pressing different system icons. Figure 23: LCD control panel, displays the System menu The current navigation path (i.e.
Page 38: Figure 24: Navigation Trail To The Time Function
Figure 24: Navigation trail to the Time function The breadcrumb can be used to check the path you have followed while navigating system control menus. System breadcrumb can also be used to navigate backwards (i.e. to return to a previous screen or to the System menu). The LCD control panel is attached to the front of the UPS and it is active when the UPS is connected to AC power, and also when the UPS is operating in battery mode.
Page 39: Password Requirements
Figure 25: UPS System menu 8.1. Password Requirements As you navigate through the user interface you may notice that on certain sub-menus some of the functions are marked with a little key-shaped icon (see Figure 26). Figure 26: Key icon on Email Configuration These functions may require you to enter a password.
Page 40: Setup Menu
8.2. Setup menu The Setup menu functions enable you to set values for most of the parameters that govern the operation of the UPS. These settings are available for technicians only. Figure 27: Setup menu Setup > System 8.2.1. The Setup > System submenu is used to update the UPS about its operating environment with regard to the following parameters: Nominal input and output values of the UPS.
Page 41: Setup > System > Nominal Settings
Figure 28: Setup > SYSTEM menu hierarchy Setup > System > Nominal settings 8.2.1.1. Nominal system output voltage. You can modify the nominal output voltage to any of the  values listed on the screen, but first you must turn off the UPS by means of the ON/OFF button on the System menu screen.
Page 42: Setup > System > Number Of Modules
For example, the bypass frequency is a nominal 50 Hz, and you have set the frequency tracking range to be ±2 Hz. In this case, as long as the bypass frequency remains within the range of 48– 52 Hz, the inverter frequency will mirror it. When the bypass frequency passes these boundaries, the inverter frequency ceases to be determined by the bypass frequency and comes under the control of the UPS's internal clock (this is called "free-running mode").
Page 43: Setup > System > System Type
to 130 kW, the system indicates an overload condition, because the redundant module is not taken into account in calculating the UPS’s maximum output capability. When modules are added to the system or removed from the system, the value of total number of modules must be adjusted.
Page 44: Self-Loading Mode
To put the system in ECO mode after enabling the function: From the System menu navigate to Main > Operation > ECO mode off (click for change). By pressing on the icon the system will transfer to ECO mode. 2. From the System menu > Status screen confirm the mode was changed. 8.2.1.3.4.
Page 45: Setup > System > Controller
Figure 29: Setup > Shutdown and Autorestart You can set a specific limit to the duration of battery mode, after which time the UPS will  automatically turn itself off. You can instruct the UPS to continue to supply backup power until the battery voltage ...
Page 46: Maintenance Alarm List
8.2.1.6.1. Maintenance alarm list Displays pending alarms related to system maintenance. The purpose of these alarms is to ensure that the UPS receives appropriate preventive maintenance. The name, date and frequency of the alarm can be set by service engineers. 8.2.1.6.2.
Page 47: Ac Input Voltage Calibration
Figure 30: Setup > Modules menu hierarchy Figure 31: Setup > Modules menu options Disable Auto Correction before making any changes covered in this Section. AC input voltage calibration 8.2.2.1. Use this function if it becomes necessary to recalibrate the voltage readings of any of the UPS's input phases.
Page 48: Ac Output Voltage Calibration
For calibration, refer to SolarEdge Customer Service. Field calibrations are not allowed. AC output voltage calibration 8.2.2.2. Use this function if it becomes necessary to recalibrate the voltage readings of any of the UPS's output phases. Note that this does not refer to the output reading of a particular module but rather to the output of all modules together.
Page 49: Dc Voltage Calibration
For calibration, refer to SolarEdge Customer Service. Field calibrations are not allowed.. DC voltage calibration 8.2.2.5. This function is used to correct any inaccuracy in each module’s measurement of its internal DC voltage. For calibration, refer to SolarEdge Customer Service. Field calibrations are not allowed.
Page 50: Figure 32: Output Terminals
To detect and correct any inaccuracy in an AC power module output voltage: 1. Look at each AC power modules AC output voltage in the main>status>modules screen and locate the module with the inaccurate output voltage. 2. Isolate the UPS from all AC and DC power and open the rear bottom cover to expose the output and mid-point bus bars.
Page 51: Figure 33: Ac Output Voltage Calibration
Figure 33: AC Output Voltage Calibration 9. Measure the voltage between the L1 bus and midpoint bus bar. See Figure 32: Output terminals. You would expect the value to be around 230VAC, ± 3 V. 10. Compare your measured value to the nominal output voltage. 11.
Page 52: Dc Bus Voltage Calibration
The UPS’s readings are calibrated before the UPS leaves the factory, but over time or due to environmental factors the UPS’s DC measurements may drift slightly. For calibration, refer to SolarEdge Customer Service. Field calibrations are not allowed. DC voltage adjustment 8.2.2.8.
Page 53: Auto Correction
Figure 34: Serial Number screen The serial number of each power module is set by default and should not be changed. Auto correction 8.2.2.10. When the average output voltage of the UPS modules is above or below what it should be, the controller performs Auto Correction, which consists of raising or lowering the output of all modules by an equal number of volts until the average output voltage is what it should be.
Page 54: Power Walk-In
Figure 35: Auto correction Auto Correction is enabled by default. This is the recommended setting for most situations. After performing any calibrations or adjustments the Auto Correction feature should be re-enabled, for optimal system performance. Power walk-in 8.2.2.11. At system startup, this parameter give you control of the time it takes to bring the system’s DC voltage up to its nominal level.
Page 55: Setup > Battery
Figure 36: Power Walk-In screen Setup > Battery 8.2.3. For complete instructions contact your service provider. The following sections are for technician use only and should only be performed by trained professionals familiar with the system. Setup > BATTERY functions provide control over a number of battery parameters. UPS for 400 Vac Grid, User Guide, doc.
Page 56: Figure 37: Setup, Battery Menu Options
Figure 37: Setup, Battery menu options The UPS supports the use of standard lead-acid batteries, and also lithium-ion batteries. If you plan to use lithium-ion batteries, consult with your dealer to be sure that the battery setup parameter values are appropriate for the batteries you will be using and Gama support. UPS for 400 Vac Grid, User Guide, doc.
Page 57: Setup > Battery > Battery Test Parameters
Figure 38: Setup > Battery menu hierarchy Setup > Battery > Battery test parameters 8.2.3.1. The parameters in this section relate to the battery test function. UPS for 400 Vac Grid, User Guide, doc. rev. 4...
Page 58: Battery Test Fault Voltage
Figure 39: Battery, Battery Test menu options 8.2.3.1.1. Battery test fault voltage When this voltage is reached during a battery test, the battery has failed the test. Figure 40: Battery Test Fault Voltage UPS for 400 Vac Grid, User Guide, doc. rev. 4...
Page 59: Rectifier Voltage During Battery Test
8.2.3.1.2. Rectifier voltage during battery test Sets the value to which the rectifier's output voltage descends during a battery test. Figure 41: Rectifier voltage at Battery Test 8.2.3.1.3. Automatic battery test interval The UPS conducts a periodic battery test automatically according to the time interval specified here.
Page 60: Factors That Can Delay The Automatic Battery Test
The time interval is specified in weeks. 8.2.3.1.3.1. Factors that can delay the automatic battery test In the event that the UPS’s AC input voltage is high, the battery test is postponed until the  UPS’s input voltage becomes lower. A “high” input voltage in this case means “greater than the battery test voltage divided by √2”.
Page 61: Setup > Battery > Battery Current
Setup > Battery > Battery current 8.2.3.2. The parameters in this section relate to the battery output current. Figure 44: Setup, Battery, Battery Current 8.2.3.2.1. Enable/Disable current sensors Use this function to enable or disable the battery current sensors. The UPS has a built-in internal current sensor.
Page 62: Minimum Dc Voltage At Current Limit
Figure 46: Battery Current Limit Value There are two options: Set maximum battery charging rate. to 0.1 x battery capacity.  Set maximum battery charging rate. to 0.2 x battery capacity.  8.2.3.2.3. Minimum DC voltage at current limit Use this function to set a minimum value for the battery-charging voltage when current limiting is in effect.
Page 63: Setup > Battery End-Of-Backup Voltage Limit
Figure 47: Minimum DC voltage at current value The factory setting of 352 VDC is recommended for most situations. Setup > Battery end-of-backup voltage limit 8.2.3.3. During a mains power blackout, the batteries provide power to the UPS’s inverter. In the process, the battery voltage continually decreases.
Page 64: Setup > Battery > Battery Low Limit Voltage
This function enables you to define the battery voltage at which the UPS will cease to provide backup power and will shut itself down. This helps avoid overly-deep battery discharge, which shortens battery life. The voltage limit is expressed in terms of volts per battery block. The normal voltage of a battery block is between 12 and 13.5 volts.
Page 65: Setup > Battery > Battery Temperature Control
Figure 50: Battery, Battery capacity This total battery capacity figure is used by the UPS in three ways: To provide an estimate of the remaining battery time, when the system is in battery mode.  To calculate the battery current limit. ...
Page 66: Figure 51: Battery, Battery Temperature Control
Figure 51: Battery, Battery Temperature Control Select Temperature compensation parameters. The Temperature Compensation Parameters screen appears: Figure 52: Battery, Temperature compensation parameters UPS for 400 Vac Grid, User Guide, doc. rev. 4...
Page 67: Setup > Batt. > Batt. Temp. Cntl. > Temp Sensors Yes/No
8.2.3.6.1. Setup > Batt. > Batt. Temp. Cntl. > Temp sensors yes/no Indicate whether battery temperature sensors are present or not. Battery temperature sensors are required if one wishes to make use of battery temperature compensation. 8.2.3.6.2. Setup > Batt. > Batt. Temp. Cntl. > Enable/disable batt. temp. comp. Enables / disables battery temperature compensation.
Page 68: Setup > Stsw
Figure 53: Battery, LVD battery protector Setup > STSW 8.2.4. For complete instructions contact your service provider. The following sections are for technician use only and should only be performed by trained professionals familiar with the system. UPS for 400 Vac Grid, User Guide, doc. rev. 4...
Page 69: Figure 54: Static Switch Menu Options
Figure 54: Static Switch menu options Figure 55: Setup > Static Switch options UPS for 400 Vac Grid, User Guide, doc. rev. 4...
Page 70: Setup > Stsw > Calibrate Bypass Voltage
Setup > STSW > Calibrate bypass voltage 8.2.4.1. Caution! For calibration, refer to SolarEdge Customer Service. Field calibrations are not allowed. Setup > STSW > Calibrate output voltage 8.2.4.2. Caution! For calibration, refer to SolarEdge Customer Service. Field calibrations are not allowed.
Page 71: Setup > Stsw > Hi-Level Setup > Bypass Forced/Controlled
8.2.4.3.1. Setup > STSW > Hi-level setup > Bypass forced/controlled When the UPS wants to move to bypass mode, this function determines whether the controller will check the quality of the bypass voltage or not, before moving to bypass. Select Forced if you want the UPS to move to bypass regardless of the quality of the bypass ...
Page 72: Setup > Stsw > Enable / Disable Analysis Event
Figure 57: Static switch, Overload Hysteresis This helps avoid a repeated transfer of the load back and forth between the inverter and bypass in a situation where the UPS is operating under near-overload conditions. The factory default setting of 85 % is recommended for most environments. Setup >...
Page 73: Setup > Stsw > Sync Fault Delay Transfer
Figure 58: Static Switch, Enable/Disable Analysis Event It is for use by a technician when troubleshooting. Setup > STSW > Sync fault delay transfer 8.2.4.6. Figure 59: STSW > Sync fault delay transfer UPS for 400 Vac Grid, User Guide, doc. rev. 4...
Page 74: Setup > Alarms
When enabled, this function transfers the system to bypass when the modules are not synchronized. If you select the Half cycle checkbox, transfer will happen after half-wave.  If you select the Full cycle checkbox, transfer will happen after full wave. ...
Page 75: Setup > Alarms > Alarms Configuration
Figure 61: Setup > Alarms options Setup > Alarms > Alarms configuration 8.2.5.1. This function allows you to adjust each of the system alarm warning sensitivity levels. All system alarms by default are added to the log. This function enables you to assign one of three possible levels of importance to each type of system alarm.
Page 76: Setup > Alarms > Set Limits
To change default alarm settings: Figure 62: Setup, Alarms, Alarms Configuration, Restore Factory Settings By selecting the Left and Right arrow at the top of the screen, you can navigate through each  of the system Alarms and modify its default settings. If you select the Ignore checkbox, the selected alarm will be ignored all together.
Page 77: Setup > Alarms > Set Limits > Dc Limits
Figure 63: Alarms, Alarm Limits 8.2.5.2.1. Setup > Alarms > Set Limits > DC limits Use this function to set the voltage levels at which the "DC VOLTAGE HIGH" and "DC VOLTAGE LOW" will be activated. Figure 64: Alarms limit, DC voltage limit configuration These parameters should not be changed.
Page 78: Setup > Alarms > Set Limits > Ac Limits
8.2.5.2.2. Setup > Alarms > Set Limits > AC limits Use this function to set the voltage levels at which the "AC VOLTAGE HIGH" and AC VOLTAGE LOW" alarms will be activated. Figure 65: Alarm limits, AC voltage configuration These parameters should not be changed. You can also set a "hysteresis"...
Page 79: Figure 66: Alarms Limit, Temperature Configuration
Figure 66: Alarms limit, temperature configuration UPS for 400 Vac Grid, User Guide, doc. rev. 4...
Page 80: Setup > Connectivity
Setup > Connectivity 8.2.6. The functions in the Setup > Connectivity menu relate to the ability of the UPS to communicate with other devices. Figure 67: Setup > Connectivity options (Optional) Setup > Connectivity > Network configuration 8.2.6.1. The UPS can be monitored from a distance over an intranet or the Internet, through the same menus and screens used on the UPS control panel.
Page 81: Network Configuration Options
To enable the UPS Web interface: 1. Consult with your Network Administrator to obtain an IP address for your UPS, and the appropriate mask and gateway address. 2. Configure the UPS with the IP address. See the UPS Installation Guide for instructions to configure the IP address.
Page 82: Figure 68: Setup > Connectivity > Snmp Configuration Options
The SNMP screen appears: Figure 68: Setup > Connectivity > SNMP configuration options 6. Select Add new host The NEW SNMP host screen appears: Figure 69: Creating a new host UPS for 400 Vac Grid, User Guide, doc. rev. 4...
Page 83: Optional Feature) Setup > Connectivity > Serial Communication
7. Type in the desired host name or IP in the Host name or IP text input field and enter the port number in the Port text input field. Click confirm. (Optional feature) Setup > Connectivity > Serial Communication 8.2.6.4. Serial communication is an optional feature, available by special order.
Page 84: Defining A Tcp Modbus Link
Two types of Modbus links can be defined between the UPS and another device on the network: a serial link or a TCP/IP link. The two types of links are not mutually exclusive. In either case, with regards to Modbus, the UPS is a slave device to the Modbus master located elsewhere on the Modbus communication network.
Page 85: Optional Feature) Email Configuration
For a table of information relating to Modbus Queries, refer to Table 7. For additional information about this connector, refer to the Installation Guide. (Optional feature) Email configuration 8.2.6.6. You can have the UPS send email messages to the email addresses of your choice, containing information about the starting and ending of system alarms.
Page 86: Figure 73: The Email Configuration Menu
Figure 73: The email configuration menu 2. Configure the parameters as explained in the following table. UPS for 400 Vac Grid, User Guide, doc. rev. 4...
Page 87: Table 3: Description Of Email Parameters
Table 3: Description of email parameters PARAMETER DESCRIPTION NAME Host name or IP, and port: MAIL SERVER Consult your network administrator for the name of your email server or its IP address, and for the proper port number to use. Enable email notifications: Mark the checkbox to enable email notification.
Page 88: Adding A New Email Recipient
8.2.6.6.1. Adding a new email recipient To add a new email recipient: 1. Selecting the Email recipients button brings up a list of the existing recipients and the opportunity to add a new recipient. 2. Select Add new recipient. Figure 74: Add new email recipients screen 3.
Page 89: Figure 75: New Email Recipient Screen
Figure 75: New email recipient screen 4. Type the recipient’s email address in the Email text input field. 5. (Optional) Type a description in the Description text input field. The Is Active checkbox is selected by default to indicate that the recipient is active and should be sent email.
Page 90: Figure 76: Alarms Button On Email Recipient Screen
Figure 76: Alarms button on email recipient screen 9. After the recipient has been created, the Alarms button in the lower left of the screen becomes active. If you select the Alarms button, the following screen appears: Figure 77: Alarm selection screen for email recipient UPS for 400 Vac Grid, User Guide, doc.
Page 91: Controller Host Name
In this screen you indicate the alarms that you want to be included in the emails to the current recipient. Buttons appearing at the bottom of the screen (Figure 77) control which alarms are listed on the screen: “All”, or only those alarms with an “Information”, “Warning”, or “Critical” severity. From the alarms displayed, indicate the ones you want to go to the recipient by selecting the appropriate alarm checkbox.
Page 92: Adjust Date / Time
System date/time must be accurate in order to enable technician level access. This menu includes those features related to time, as follows. Figure 79: Setup > Time options Adjust date / time 8.2.7.1. Enter the year, month, day, hour, minute, and second. Setup >...
Page 93: Setup > Time > Change Time Zone
2. Click Confirm to apply the changes. Setup > Time > Change time zone 8.2.7.3. Use this function to set the UPS to the proper time zone. Setup > Time > Time Synchronization 8.2.7.4. This will only work when connected to a network Figure 81: Setup, Time, Time Synchronization Setup >...
Page 94: Setup > Site Id
Setup > Site ID 8.2.8. The system password is required to change the site ID and should not be changed. This function enables descriptive text to be associated with the unit. Figure 82: Setup, Assign Site ID When the UPS is connected to a computer network, this information can be seen by someone who is monitoring the UPSs via an SNMP program.
Page 95: Optional Feature) Setup > Dry Contacts
Figure 83: Setup, Dry Contacts menu A password may be required to use the sub-functions on this menu. If you do not have the appropriate password it can be obtained from Solaredge customer support team. UPS for 400 Vac Grid, User Guide, doc. rev. 4...
Page 96: Setup > Dry Contacts > Input Dry Contacts
Figure 84: Setup > Dry Contacts option Setup > Dry contacts > Input dry contacts 8.2.9.1. The input dry contacts enable the user to monitor the state (open or closed) of a relay external to the UPS, by generating an alarm condition when the state of the external relay changes. (The relay must be voltage free.
Page 97: Using The Input Dry Contacts
8.2.9.1.2. Using the input dry contacts The connection for each input dry contact consists of two pins – one independent pin (“digital input #x”), and the second pin, labeled Common). In the Setup > Dry contacts > Input dry contacts screen the user defines the dry contact as normally open or normally closed, depending on the normal state of the external circuit.
Page 98: Setup > Dry Contacts > Output Dry Contacts
Setup > Dry contacts > Output dry contacts 8.2.9.2. Figure 86: Setup, Output Dry Contacts There are eight output dry contacts  There are currently over 60 alarm conditions to which the output dry contacts can be linked,  so that when the alarm condition occurs, the state of the output dry contact will change. Any number of output dry contacts can be linked to a single alarm condition.
Page 99 Auxiliary #1 fault Auxiliary #2 fault Auxiliary #3 fault Auxiliary #4 fault Auxiliary #5 fault Battery failed last test Battery test in progress Conflict with the nominal output voltage and/or frequency Controller battery test failed Dc voltage high Dc voltage low Detected modules are more than defined Emergency Power off is active End of battery backup, battery discharged to shutdown limit...
Page 100 UPS module #2 is sending an alarm or warning UPS module #3 is sending an alarm or warning UPS module #4 is sending an alarm or warning UPS module #5 is sending an alarm or warning UPS module #6 is sending an alarm or warning UPS module #7 is sending an alarm or warning UPS module #8 is sending an alarm or warning UPS module #9 is sending an alarm or warning...
Page 101: Location Of The Output Dry Contacts
Figure 87 shows output dry contact #6 defined to change state when the UPS moves into bypass mode. The move to bypass generates an alarm, and in this example dry contact #4 is linked to that alarm. Figure 87: Example of an output dry contact linked to an alarm 8.2.9.2.1.
Page 102: Setup > Save And Restore
To use this function, select any one of the voltage-free contacts AUX1 through AUX5 (Figure 88), and the desired normal state of the contact (normally open or normally closed) . The generator must change the state of the dry contact when it begins operation. For example, if the normal state of the chosen dry contact is “open”, the generator must close the dry contact circuit when it begins operation.
Page 103: Setup > Save & Restore > Save Settings
Figure 89: Setup > Save & Restore options Setup > Save & restore > Save settings 8.2.10.1. Saves the current settings of the UPS in non-volatile memory. Setup > Save & restore > Restore settings 8.2.10.2. Restores to active status the settings that you previously saved in non-volatile memory. Setup >...
Page 104: Setup > Change Authorization Level
Setup > Change authorization level 8.2.11. Figure 90: Setup, Authorization System time/date must be correct in order to enable technician level access. This function allows you to change the current security level of the software interface. Setup > Authorization > Set user authorization level 8.2.11.1.
Page 105: Setup > Authorization > Operations Authorization
Setup > Authorization > Operations Authorization 8.2.11.3. This allows the technician to limit the operational access to the UPS. Operational changed like: Turning on and off  Transferring the load  Battery tests  Can be changed to being password protected. Figure 91: Setup, Authorizations operations UPS for 400 Vac Grid, User Guide, doc.
Page 106: Operation Menu
8.3. Operation menu Figure 92: The Operation option on the System menu UPS for 400 Vac Grid, User Guide, doc. rev. 4...
Page 107: Operation > Turn On/Off > System On/Off
Figure 93: Operation menu The Static switch snapshot and PQ mode setup functions are only for technician purposes. Operation > Turn on/off > System on/off 8.3.1. This section explains how to turn the UPS on/off. Operation > Turn on/off > System on 8.3.1.1.
Page 108: Figure 94: Turn Off/On Menu
The Turn on/off screen appears: Figure 94: Turn off/on menu Pressing the On/Off button on the System menu also brings you to this (Operation > Turn on/off) screen (as shown above). 3. Select System on. UPS for 400 Vac Grid, User Guide, doc. rev. 4...
Page 109: Operation > Switch On/Off > System Off
The This action will turn all the modules on, confirm dialog appears: Figure 95: Confirm dialog, Turn all modules on 4. Select OK. The UPS takes about two minutes to perform a self-check routine, and to bring the internal DC voltage up to ±405 V, after which it is ready to supply power to the load. Operation >...
Page 110: Figure 96: Turn On/Off, Modules Off
You can selectively turn off individual modules, or all of them at once. And you can choose what level of module shutdown to perform. Such as just Inverter off – per power module, or complete shutdown of power modules. If all modules are shut off the load is automatically moved to bypass. If the remaining power modules cannot support the remaining load, the load will automatically be transferred to bypass (if you confirm).
Page 111: Operation > Switch On/Off > Modules On
4. If you did not select the Inverter off, and you selected Complete Shutdown the selected UPS power modules will go into standby state. Operation > Switch on/off > Modules On 8.3.2.2. Use this to turn power modules on. After a short wait the load is automatically transferred to the inverter.
Page 112: Operation > Turn On/Off > Controller Restart/Shutdown
The power modules are turned ON. The power modules go through a series of activation processes. This can take up to two minutes. To confirm that the Power modules are active, navigate to the Status screen and select the modules (Status > Modules). Locate the PFC and Inverter status Operation >...
Page 113: Figure 99: Switch On/Off - Controller Shutdown
Figure 99: Switch on/off - Controller Shutdown To reset the system controller there is a recessed Reset button available on the back of the controller panel (adjacent to the USB ports). Figure 100: Controller Reset Button on the Back of the Controller UPS for 400 Vac Grid, User Guide, doc.
Page 114: Operation > Transfer Load
Operation > Transfer load 8.3.4. From this menu you can move the load from the inverter to the bypass voltage, or vice versa. Figure 101: Transfer load Operation > Transfer load > Transfer load to inverter 8.3.4.1. Transfers the load from the bypass voltage to the inverter voltage. If you select Transfer load to Inverter the system will remain on bypass in the following circumstances: 4.
Page 115: Operation > Battery Test
conditioning is in effect, and in the event of an AC mains failure there is no battery backup to supply the load. Transfer to bypass can occur automatically, when the controller detects a malfunction in the inverter or a short-circuit in the load. Transfer to bypass can also be accomplished manually.
Page 116: Operation > Turn Eco Mode On/Off
Figure 103: Operation, Battery Test Operational parameters for the battery test can be found in Section 8.2.3.1 "Setup > Battery > Battery test parameters" on page 57. Operation > Turn eco mode on/off 8.3.6. ECO mode is an alternative mode of UPS operation. In ECO mode, the UPS's normal state is bypass mode.
Page 117: Figure 104: Operation, Battery Test
sensitive to input power anomalies, and where the mains power is predictably stable. The advantages of an ECO mode system can include a cost savings. To enable simple ECO mode on the UPS (without Analyze Grid mode): 1. Put the system controller into Technician mode. 2.
Page 118: Figure 105: Ups Is On But Eco Mode Is Not Turned On
1. From the ECO mode screen, select Analyze Grid. In Analyze Grid mode, the UPS observes the bypass input for about a week and uses this information to decide which ECO mode Custom Reliability setting is most appropriate for your environment.
Page 119: Figure 106: Ups Is On, Eco Mode Is Turned On And Inverter Is In Standby State
The Status screen appear: Figure 106: UPS is on, ECO mode is turned on and inverter is in standby state Notice the Status screen when the UPS is ON and ECO mode is ON, while the UPS is in standby mode.
Page 120: Operation > Ups Software Upgrade
Figure 107: UPS is ON, UPS is on and ECO mode/Inverter is in active state Notice the yellow line (representing the direction of power to the load) is passing through the inverter while there is problem with the grid. Operation > UPS software upgrade 8.3.7.
Page 121: Figure 108: Required System Off Prompt
To perform a software upgrade: Navigate to Operation> UPS software Upgrade  If the system is on, the following warning screen will appear: Figure 108: Required system off prompt Select OK to continue. Turn the system off and repeat the procedure. ...
Page 122: Figure 109: Select Unit For Upgrade
The following system and subsystem selection screen appear: Figure 109: Select unit for upgrade Select from one of the subsystems to upgrade exclusively. If you intend on updating all of  the subsystems you can do so by selecting System. You will be prompted to insert a USB drive with the appropriate preloaded software in the root folder.
Page 123: Figure 110: Insert Usb Screen
Figure 110: Insert USB screen The USB drive can be inserted into any of the three available USB slots located on the side of the system controller. Figure 111: USB port locations UPS for 400 Vac Grid, User Guide, doc. rev. 4...
Page 124: Figure 112: Inverter Upgrade Screen
Insert the USB with preloaded software in the root folder.  To upgrade the full system: a. Select System, see Figure 109. b. Press Start to begin the software upgrade process. c. Wait as the system runs through the various subsystems and upgrades each with the relevant software.
Page 125: Status Menu
Note that they are positioned in the same numbering layout as their physical position in the rack. Figure 113: PFC upgrade screen Press Start to begin the software upgrade process. 8.4. Status menu Selecting the Status option from the System menu, displays a screen which summarizes the current UPS status.
Page 126: Figure 115: The Status Screen
The Status screen appears: Figure 115: The Status Screen In the diagram, shown in Figure 115, the highlighted yellow line indicates the present power  flow through the UPS. A yellow triangle with an exclamation point inside indicates an alarm condition related to the ...
Page 127 ESCRIPTION Load level, indicates the load on each output phases, as a percentage of maximum capacity. The white vertical bars fill with color from left to right as the load increases on the phase. Voltage and amperage readings for each phase of the rectifier input. Pressing the rectifier input icon displays more detailed readings for each rectifier input phase.
Page 128 ESCRIPTION This graphic is displayed when the output source is the inverter (normal mode, battery mode and inverter): This graphic is displayed when the output source is the bypass input (bypass or ECO mode): This graphic is displayed when using self-loading mode (or PQ mode) Pressing the static switch icon displays the static switch detail screen.
Page 129: Profile Menu
8.5. Profile menu From the System menu selecting the Profile function displays a summary of the operating parameters of various parts of the system. Figure 116: System menu > Profile options Profile > System 8.5.1. Figure 117: Profile, System Lists the current values for a number of basic system settings, including: Nominal power Number or battery cabinets ...
Page 130: Profile > Battery
Nominal frequency Shutdown by long AC fail (enabled/disabled)   Number of modules Last maintenance date   Number of modules for redundancy  More information about these parameters is available in Section 0 "Setup > ” on page 40. Profile >...
Page 131: Profile > Stsw
More information about these parameters is available in Section 8.2.3 “Setup > ”. Profile > STSW 8.5.3. Figure 119: Profile, Static Switch Lists the current values for several parameters related to the static switch, including: Bypass (forced or controlled)  Control by PC activity status (active/inactive) ...
Page 132: Profile > Alarms
Profile > Alarms 8.5.4. Figure 120: Profile, Alarms Lists current parameter values, mostly alarm limit values, for alarms, including: Dc voltage high limit  Dc voltage low limit  Ac voltage high limit  Ac voltage low limit  Over temperature limit ...
Page 133: Profile > Identification
Profile > Identification 8.5.5. Figure 121: Profile, Identification Lists several identifiers: Manufacturer Location   Model name Attached devices   Software version Module#1   System serial number Module #2   Identification Module #3   Contact name. Module #n.
Page 134: Log Menu
8.6. LOG menu From the System menu selecting the Log function displays the log file. Figure 122: System menu > Log options The log file display screen includes a button that you can press to clear the log file if you so desire.
Page 135: Figure 123: Listing Of The Log File Contents
In certain unusual situations, the user may want to change the severity level of a given message. This can be accomplished through the Setup > Alarms > Alarm configuration screen. Figure 123 (below) presents an example of a listing of the log file: Figure 123: Listing of the log file contents To scroll through the log messages, slide your finger up or down along the touch screen, or use the UP and Down arrow keys.
Page 136: Figure 124: Log Record - Detailed Display
The buttons at the bottom of the screen in Figure 124 enable you to focus on the readings of specific system components, such as the battery, the output stage, the bypass input, and so on, including individual modules. Figure 124: Log record - detailed display You can navigate to the detailed readings for the previous or the next log message by tapping on the left and right arrows at the top of the screen.
Page 137: The Alarms Button On The Log Detail Screen
The Alarms button on the log detail screen 8.6.1. In Figure 125 (in the second row of buttons at the bottom of the screen), the Alarm button can be seen. Figure 125: Alarms display, from the Log detail screen Selecting this button displays a list of all alarms that were active at the time the log record was viewed.
Page 138: Connectivity Menu
8.7. Connectivity menu From the System menu the Connectivity function displays the status of the UPS's connection to the computer network, the UPS's IP address, and related information. This is of relevance if you are using the remote access feature, which allows monitoring and control of the UPS from a remote computer over an intranet or the Internet.
Page 139: Time Menu
8.8. Time menu From the System menu the Time function displays the time on the UPS's internal clock, the time zone, the current operating time (the time since the unit was last turned on), and the last recorded maintenance date. Figure 128: System menu >...
Page 140: Language Menu
8.9. Language menu From the System menu the Language function gives you the ability to choose the language in which the display screen option and messages are displayed. Figure 130: System menu > Language option UPS for 400 Vac Grid, User Guide, doc. rev. 4...
Page 141: Preventive Maintenance
9. Preventive maintenance Please refer to B300_service_guide_Rev1.1, Preventative maintenance section. UPS for 400 Vac Grid, User Guide, doc. rev. 4...
Page 142: Appendix) Holding Registers For Modbus Queries
10. (Appendix) Holding Registers for Modbus Queries These registers can be addressed as either holding registers [for example, 4x0002] or input registers [for example, 3x0002]) Table 7: Holding Registers for Modbus queries Register Variable name GET Values Remarks 4x0001 Battery Condition 0: Good 1: Weak 2: Replace...
Page 143 Register Variable name GET Values Remarks 4x0021 Input Voltage Line 3 ×10 VAC Divide the value by 10 for real measurement: 2315/10=231.5 VAC 4x0022 Input Current Line 3 ×10 A Divide the value by 10 for real measurement: 21/10=2.1 A 4x0024 Output Source 0: Normal...
Page 144 Register Variable name GET Values Remarks 4x0048 Bypass Current Line 3 ×10 A Divide the value by 10 for real measurement: 21/10=2.1 A 4x0050 Temperature Alarm 0: Alarm off 1: Alarm on 4x0061 Ups General Fault Alarm 0: Alarm off 1: Alarm on 4x0201 System Model ID...
Page 145 Register Variable name GET Values Remarks 4x0211 Estimated Backup Time Minutes Only available during power failure and when the battery is fully charged (6 in 4x0209), otherwise zero. This value is a rough approximation received by mathematical calculations, and assumes new and healthy batteries of average VRLA type in initial fully charged state.
Page 146 Register Variable name GET Values Remarks 4x0231 Inverter Current Line 3 ×10 A Divide the value by 10 for real measurement: 21/10=2.1 A 4x0232 Inverter Power Line 3 ×10 kW Divide the value by 10 for real measurement: 453/10=45.3 KW 4x0233 Inverter Apparent Power ×10 kVA...
Page 147 Register Variable name GET Values Remarks 4x0254 Output Voltage Line 1 ×10 VAC Divide the value by 10 for real measurement: 2315/10=231.5 VAC 4x0255 Output Current Line 1 ×10 A Divide the value by 10 for real measurement: 21/10=2.1 A 4x0256 Output Power Line 1 ×10 kW...
Page 148 Register Variable name GET Values Remarks 4x0278 Bypass Apparent Power ×10 kVA Divide the value by 10 for real measurement: Line 2 769/10=76.9 KVA 4x0279 Bypass Voltage Line 3 ×10 VAC Divide the value by 10 for real measurement: 2315/10=231.5 VAC 4x0280 Bypass Current Line 3 ×10 A...
Page 149 Register Variable name GET Values Remarks 4x0322 Alarm In More Than One 0: Alarm off Module 1: Alarm on 4x0323 Static Switch Warning Or 0: Alarm off Alarm 1: Alarm on 4x0324 Static Switch Warning Or 0: Alarm off Alarm 1: Alarm on 4x0325 Over Temperature...
Page 150 Register Variable name GET Values Remarks 4x0343 Auxiliary Input Volt-Free 0: Alarm off Contact 5 Fault 1: Alarm on 4x0344 Shutdown By Off Button 0: Alarm off on Touch Panel 1: Alarm on 4x0345 Shutdown By Hardware 0: Alarm off Off Button 1: Alarm on 4x0346...
Page 151 Register Variable name GET Values Remarks 4x0363 Conflict In Nominal 0: Alarm off When output voltage or output frequency Settings Of UPS Modules 1: Alarm on settings are not the same on all attached UPS modules 4x0364 Controller Battery Test 0: Alarm off Not available on Mega modular UPS, since Failed...
Page 152 © SolarEdge Technologies, Inc. All rights reserved. SOLAREDGE, the SolarEdge logo, OPTIMIZED BY SOLAREDGE are trademarks or registered trademarks of SolarEdge Technologies Inc. All other trademarks mentioned herein are trademarks of their respective owners. Date:05/2019/V2.0/ENG NA. Subject to change without notice.

SolarEdge Critical Power B300 User Manual

Quick Links

Related Manuals for SolarEdge Critical Power B300

Summary of Contents for SolarEdge Critical Power B300

Table of Contents
