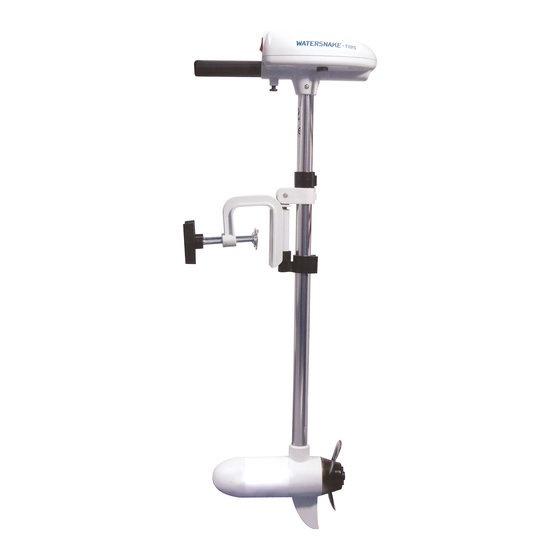

- Page 1 TRANSOM MOUNT ELECTRIC MOTOR OWNERS MANUAL...
- Page 2 SPECIFICATION SUMMARY MODEL ASP T-18 ( Saltwater ) VOLTAGE (V) MAX.THURST (LB) SHAFT LENGTH (IN) MIN AMP DRAW (A/H) MAX AMP DRAW (A/H) PROP 2 BLADE MOUNTING TRANSOM REQUIRED BATTERY 12v DEEP CYCLE MIN. RECOMMENDED BATTERY SIZE 20 - 40 AMP HOUR **...
- Page 3 • Select desired mounting location on boat • 12 v deep cycle battery (your Watersnake motor is not designed for use with car / truck / motorcycle type batteries) – for more information about appropriate batteries for your Watersnake motor, refer to page 8 •...
- Page 4 WATERSNAKE ELECTRIC MOTORS Congratulations and welcome to a world of silent motoring. Powerful yet silent, the Watersnake electric motors are built to suit all angling conditions. High quality materials, superior design and precision engineering make these motors longwearing and reliable.
- Page 5 Quick tilt device Depth collar Depth collar height adjustment height adjustment Nylon Tilting bracket Metal bracket Weedless Weedless 2 blade 2 blade propeller propeller Motor unit Motor unit Please not the ASP T-18 motors do not have a tilting feature. www.watersnake.com.au...
- Page 6 2: Align the propeller against the shear pin on the shaft (there is a groove on the back of the propeller which the shear pin needs to slot into) and then tighten the propeller nut securely. Shear pin Propeller Propeller shaft Propeller Watersnake...
- Page 7 50 amps. Anderson plugs are a popular choice amongst many Watersnake motor owners and are readily available. A Watersnake circuit breaker is highly recommended. Attach to the red power cable to protect the circuit boards of the motor.
- Page 8 • Do not attempt to charge your battery while your Watersnake is still connected to the battery. • Do not connect your Watersnake motor to a battery that is connected to your main motor’s charging system (alternator). • It’s important to note that a fully charged 12v deep cycle battery will actually provide more than 12v (refer to your battery supplier for more information) and at 12v or less your Watersnake motor may not operate normally.
- Page 9 STOWING When your Watersnake motor is not in use always stow and store it properly. DEPTH ADJUSTMENT Hold the motor shaft with one hand, loosen the depth collar adjustment screw and set the motor to the desired depth, then retighten the adjusting screw of the depth collar securely.
- Page 10 ( I o R ) and a switch for low (-) or high speeds (=). The handle of the motor head is stowable and extends with the pull of a button. This makes the motor more compact and easier to store away when not in use. Pull button to extend handle. Watersnake...
- Page 11 MAINTENANCE Your Watersnake Electric Motor should provide many seasons of dependable service. However, like any tool, electric motors must be cared for. After each day of fi shing, the motor should be cleaned thoroughly. A light rinse with fresh water (do not direct a high pressure stream of water at the motor) and wash with warm soapy water to remove any remaining salt / debris particles should be completed.
- Page 12 Upon connecting your battery to your motor, and before setting off in your boat, make sure that your trolling motor is mounted correctly. Of course once you engage your Watersnake motor for use make sure that it is in the right place, not too low or too high. It is recommended not to run your trolling motor out of water for long periods of time.
- Page 13 A signifi cant number of issues can be caused by a disruption of power supplied to your Watersnake motor. Careful inspection of your 12v deep cycle battery, wiring and fuse / circuit breaker set up should be completed before assuming that there is a fault with your motor.
- Page 14 • Lubricate shaft with spray lubricant A number of service videos are available on the Jarvis Walker Brands Youtube channel – search “Jarvis Walker Brands” from the Youtube search function. Please contact Jarvis Walker or your nearest service agent should issues persist. Watersnake...
- Page 15 MODEL SPECIFICATIONS CODE MOTOR DESCRIPTION THRUST VOLT AMPS WATTS RPM SHAFT BRACKET STEERING SPEEDS PROP 55043 ASP T-18 WHITE 18lb 7-15 84-180 1700 24" Nylon Transom Stowable Hand Tiller Hi -Low 2-Blade 55199 ASP T-24 WHITE 24lb 9-20 108-240 1900 24"...
- Page 16 MOTOR SELECTION GUIDE WATERSNAKE Transom Mount Suggested Transom Mount Measurement SHAFT LENGTH to Water Level Shaft Length GUIDE Up to 8” 24” Up to 10” 26” With your boat in the Up to 12” 30” water, measure the 10” to 14”...
- Page 17 www.watersnake.com.au...
- Page 18 Watersnake...
- Page 19 (SEE YOU NEAREST DEALER FOR MORE INFORMATION) Watersnake ASP Propeller Kit (Sold Separately) Watersnake Propeller kits contain a propeller, nut and shear pins. It is recommended you keep a spare propeller on your boat at all times. 55500 2 Blade Mini Prop...
- Page 20 NOTES:...
- Page 21 NOTES: www.watersnake.com.au...
- Page 22 NOTES: Watersnake...
- Page 23 THE BELOW INFORMATION IS FOR THE USA ONLY. Watersnake Limited One Year Warranty (USA) All watersnake products are covered by a one year Limited Warranty covering faults in workmanship and materials from the date of original retail purchase. The purchaser shoud return...
- Page 24 297-305 South Gippsland Highway Dandenong South, Victoria 3175 Australia ACN: 143 230 175 Watersnake and Jarvis Marine are registered ® ® trademarks of Watersnake Distribution Pty. Ltd. © Watersnake Distribution Pty. Ltd. All Rights Reserved. Specifications are subject to change without notice.
