Watersnake VENOM SX Owner's Manual

Transom mount electric motor
Hide thumbs

Advertisement

Table of Contents

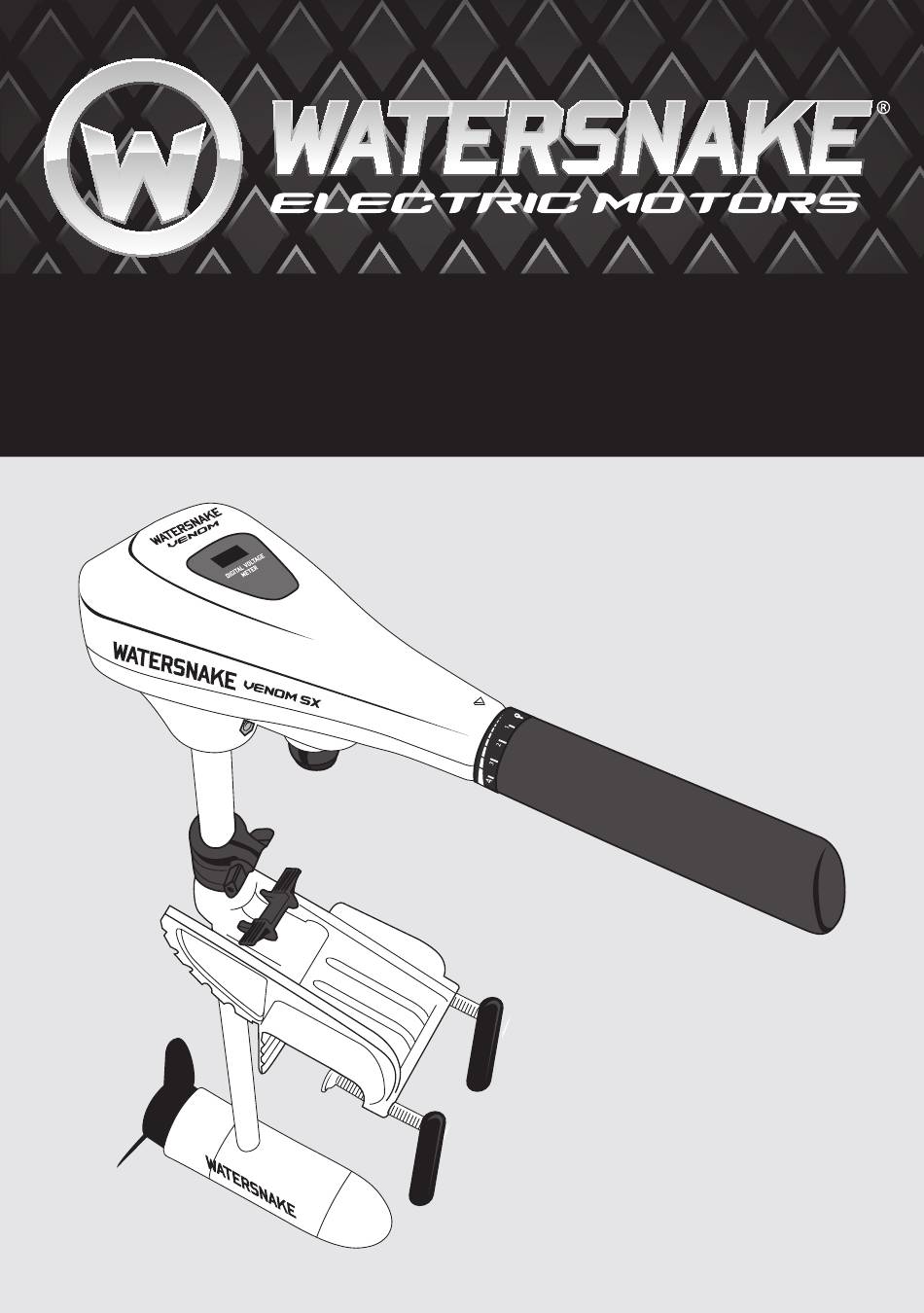

VENOM SX
TRANSOM MOUNT ELECTRIC MOTOR
OWNERS MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Watersnake VENOM SX

Summary of Contents for Watersnake VENOM SX

  • Page 1 VENOM SX TRANSOM MOUNT ELECTRIC MOTOR OWNERS MANUAL...

  • Page 2: Specification Summary

    40 - 60 AMP HOUR ** ** NOTE - this is to be used as a guide only. Check with your battery supplier to confi rm required size of 12 volt deep cycle marine battery that will be appropriate for your situation. Watersnake...
  • Page 3 VENOM SX SPECIFICATION SUMMARY MODEL SXW 44/36 (VENOM) VOLTAGE (V) MAX.THURST (LB) SHAFT LENGTH (IN) MIN AMP DRAW (A/H) MAX AMP DRAW (A/H) PROP 3 BLADE MOUNTING ALLOY TRANSOM REQUIRED BATTERY 12v DEEP CYCLE MARINE MIN. RECOMMENDED BATTERY SIZE 60 - 80 AMP HOUR **...
  • Page 4 SHAFT LENGTH (IN) MIN AMP DRAW (A/H) MAX AMP DRAW (A/H) PROP 3 BLADE MOUNTING ALLOY TRANSOM REQUIRED BATTERY 12v DEEP CYCLE MARINE MIN. RECOMMENDED BATTERY SIZE 80 - 100 AMP HOUR ** THE BELOW INFORMATION IS FOR THE USA ONLY. Watersnake...

  • Page 5: Pre-Installation Checklist

    • Select desired mounting location on boat. Ensure there is access to properly fi t the bracket in the location selected. • 12 v deep cycle marine battery (your Watersnake motor is not designed for use with car / truck / motorcycle type batteries) – for more information about appropriate batteries for your Watersnake motor, refer to page 9 •...
  • Page 6 DEPRESS THE POSITIONING PIN TO AJUST TILT OF THE BRACKET PLEASE NOTE: Watersnake Distribution Pty Ltd accepts no liability for personal injury or property damage caused while mounting this motor. ATTACHING THE PROPELLER Before doing anything with the propeller, ensure the cables to the battery are disconnected.
  • Page 7 VENOM SX Digital voltage meter Control Box Extendable control handle featuring 5 forward and 3 reverse speeds Multi adjustable depth collar Quick tilt device Heavy Duty Alloy Bracket Composite shaft Weedless propeller Motor assembly unit www.watersnake.com.au...

  • Page 8: Electrical Connections

    50 amps. Anderson plugs are a popular choice amongst many Watersnake motor owners and are readily available. A Watersnake circuit breaker is highly recommended. Attach to the red power cable to protect the circuit boards of the motor.

  • Page 9: Deep Cycle Batteries

    • Do not attempt to charge your battery while your Watersnake is still connected to the battery. • Do not connect your Watersnake motor to a battery that is connected to your main motor’s charging system (alternator). • It’s important to note that a fully charged 12v deep cycle battery will actually provide more than 12v (refer to your battery supplier for more information) and at 12v or less your Watersnake motor may not operate normally.
  • Page 10 To adjust steering counter-force, simply loosen or tighten the counterforce bolt. The ideal setting is one where the counterforce bolt is just tight enough so that the boat will steer in the direction you are aiming without need for continual correction. Depth collar adjustment Steering counter force adjustment Watersnake...

  • Page 11: Speed Control

    VENOM SX HEAD UNIT & SPEED CONTROL The tiller control is telescopic and can be extended. Simply pull the grip out away from the head unit to set your desired length. Rotate the handle clockwise for forward speed and anti-clockwise for reverse There are fi ve forward and three reverse speeds.

  • Page 12: Maintenance

    MAINTENANCE Your Watersnake Electric Motor should provide many seasons of dependable service. However, like any tool, electric motors must be cared for. After each day of fi shing, the motor should be cleaned thoroughly. A light rinse with fresh water (do not direct a high pressure stream of water at the motor) and wash with warm soapy water to remove any remaining salt / debris particles should be completed.
  • Page 13 If your boat is not stored under cover, it is recommended to remove your Watersnake motor and store separately under cover, out of direct sunlight and away from wet or damp areas. If you are not able to remove your Watersnake from the boat, we recommend covering your Watersnake with a weatherproof cover to protect the electronics.
  • Page 14 A signifi cant number of issues can be caused by a disruption of power supplied to your Watersnake motor. Careful inspection of your 12v deep cycle battery, wiring and fuse / circuit breaker set up should be completed before assuming that there is a fault with your motor.
  • Page 15 VENOM SX Noise or vibration coming from motor Check that propeller is securely tightened and shear pin is in place Remove propeller and check for any build up of fi shing line / weed or any other debris • Check that your 12v deep cycle marine battery is fully charged (+ 12v) A number of service videos are available on the Jarvis Walker Brands Youtube channel –...

  • Page 16: Model Specifications

    For new models not listed here fi nd specifi cations at: www.jarvismarine.com.au USA MODEL SPECIFICATIONS CODE MOTOR DESCRIPTION THRUST VOLT/AMPS WATTS RPM SHAFT COLOUR BRACKET STEERING SPEEDS PROP 55230 Venom SXW-ET 54/42 54lb 12v / 13-54 156-640 1370 42" White Alloy Transom Extend Hand Tiller 5 /3 3-Blade Watersnake...
  • Page 17 VENOM SX MOTOR SELECTION GUIDE WATERSNAKE Transom Mount Suggested Transom Mount Measurement SHAFT LENGTH to Water Level Shaft Length GUIDE Up to 8” 24” Up to 10” 26” With your boat in the Up to 12” 30” water, measure the 10”...
  • Page 18 Venom SXW Motor General Schematic Watersnake...
  • Page 19 www.watersnake.com.au...
  • Page 20 55222 Venom SXW 34/26 Schematic Watersnake...
  • Page 21 55222 Venom SXW 34/26 Schematic www.watersnake.com.au...
  • Page 22 55227 Venom SXW 34/30 Schematic Watersnake...
  • Page 23 55227 Venom SXW 34/30 Schematic www.watersnake.com.au...
  • Page 24 55229 Venom SXW 54/42 Schematic Watersnake...
  • Page 25 55229 Venom SXW 54/42 Schematic www.watersnake.com.au...
  • Page 26 55230 Venom SXW-ET 54/42 Schematic Watersnake...
  • Page 27 55230 Venom SXW-ET 54/42 Schematic www.watersnake.com.au...
  • Page 28 Watersnake Propeller Kits (Sold Separately) Watersnake Propeller kits contain a propeller, nut and shear pins. It is recommended you keep a spare propeller on your boat at all times. The 2-Bladed Propeller Kit is suitable for 34lb motors. The 3-Bladed Medium Propeller Kit is suitable for all 44lb, 54lb and 65lb motors.
  • Page 29 THE BELOW INFORMATION IS FOR THE USA ONLY. Watersnake Limited One Year Warranty (USA) All watersnake products are covered by a one year Limited Warranty covering faults in workmanship and materials from the date of original retail purchase. The purchaser shoud return...
  • Page 30 NOTES: Watersnake...
  • Page 31 NOTES: www.watersnake.com.au...

  • Page 32: Contact Information

    297-305 South Gippsland Highway Dandenong South, Victoria 3175 Australia ACN: 143 230 175 Watersnake ® and Jarvis Marine ® are registered trademarks of Watersnake Distribution Pty. Ltd. © Watersnake Distribution Pty. Ltd. All Rights Reserved. Specifications are subject to change without notice.

This manual is also suitable for:

Venom sxw 34/26Venom sxw 54/26Venom sxw 34/30Venom sxw 44/36Venom sxw 54/36Venom sxw 65/42 ... Show all
