eldoLED LINEARdrive 100/A Tech Sheet

Tech sheet LINEARdrive 100
Electrical Specifications
Input
• Voltage: 220 - 250 VAC, 50-60Hz
UL approved: 120 - 277 VAC, 50-60Hz
• Current, max: 1.05A at 120V/60Hz, 0.5A at 230V/50Hz,
0.45A at 277V/60Hz
Output
• Load per output:
RGBW @ 12V: 2.08A per output / RGBW @ 24V: 1A per output
RGB @ 12V: 2.76A per output / RGB @ 24V: 1.33A per output
For UL Class 2: RGBW @ 12V: 1.25A per output
RGB @12V: 1.66A per output
Absolute max for US: 5A common anode
• Power, max: 100W
General
• Standby power: < 0.5W
• Inrush current: 35A 240μs at 120V/60Hz,
67A 240μs at 230V/50Hz, 75A 240μs at 277V/60Hz
• Surge protection: 3kV (L to N), 4kV (L/N to GND)
• Power factor: > 0.94
• THD at 100% load, max: <10%
• DMX / RDM: USITT DMX512A and ANSI E1.20 (explore & address)
• DALI: IEC 62386-207
Use cases for 12V and 24V LED strips
12V RGB strip
3 LED outputs,
per output:
33W
Power, max: 100W
12V
Voltage, 12V or 24V
2.77A
Current, max

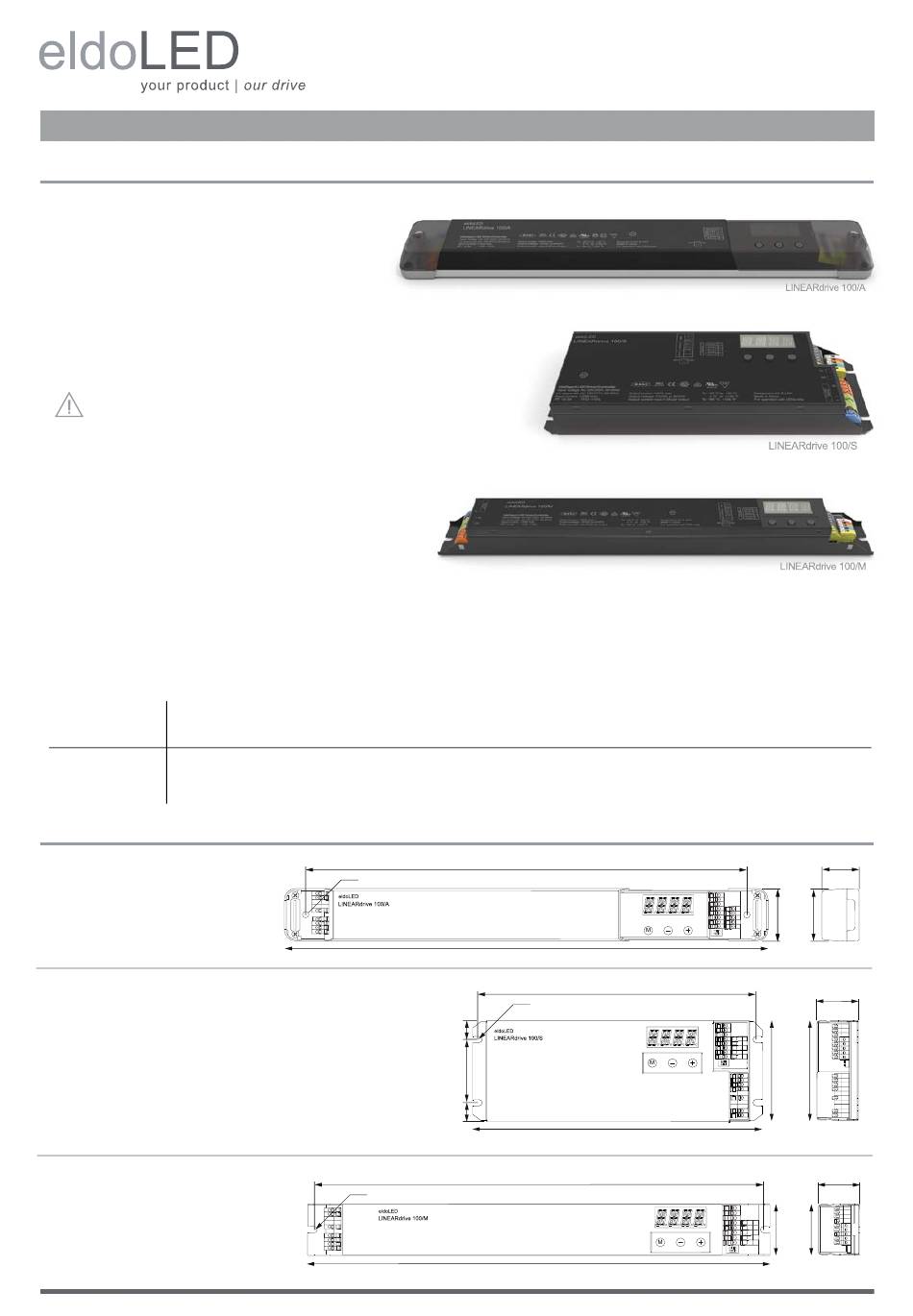

Dimensions and weight
LINEARdrive 100/A
Weight: 890 g, 31.4 oz
LINEARdrive 100/S
Weight: 895 g, 31.6 oz
LINEARdrive 100/M
Weight: 770 g, 27.2 oz
© 2012 eldoLED. All rights reserved. V1.5
24V RGB strip 12V RGB + white strip
3 LED outputs, 4 LED outputs
per output: per output:
33W 25W
24V 12V
1.33A 2A
ø 5.0 mm / 0.2"
15 mm / 0.59"
50 mm / 1.97"
15 mm / 0.59"
ø 5.0 mm / 0.2"
24V RGB + white strip 2 12V cool white + 2 warm white strips
4 LED outputs,
per output:
25W
24V
1A
354 mm / 13.94"
388 mm / 15.27"
219.5 mm / 8.64"
ø 5.0 mm / 0.2"
230 mm / 9.06"
361 mm / 14.21"
370 mm / 14.57"
AC Series
4 LED outputs
per output:
25W
12V
2A
30 mm / 1.18"
42 mm
1.65"
30 mm / 1.18"
80 mm
3.15"
30 mm / 1.18"
41 mm
1.61"
1/4
