eldoLED DUALdrive 1060/S Quick Start Manual

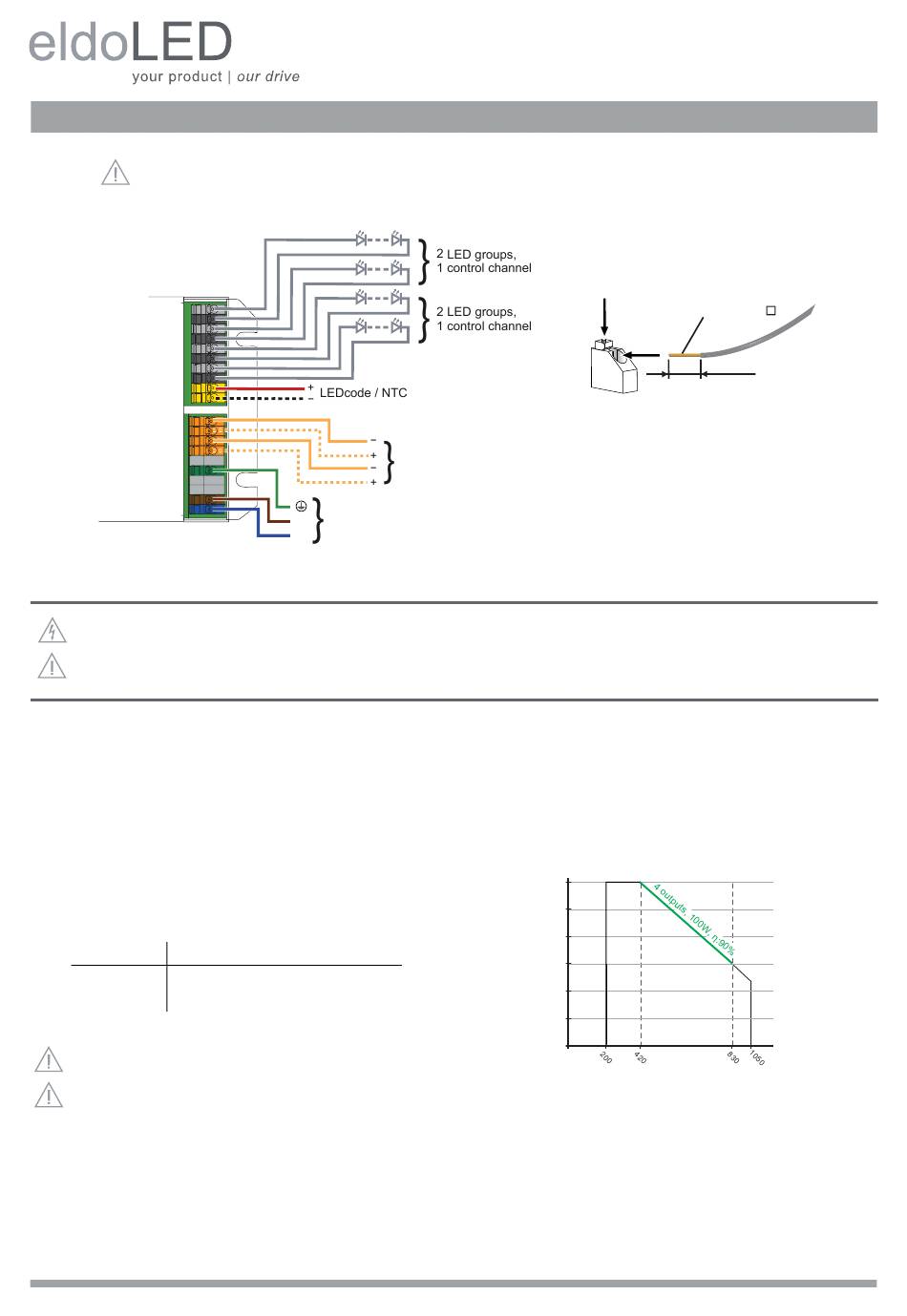

Wiring diagram DUALdrive 1060/S
Pay attention when connecting the LED groups:
• polarity reversal results in no light output and often damages the LEDs
• combining + and - of different groups damages the driver
WARNING: Risk of electrical shock. May result in serious injury or death. Disconnect power before servicing or installing.
CAUTION: The device may only be connected and installed by a qualified electrician. All applicable regulations, legislation and build-
ing codes must be observed. Incorrect installation of the device can cause irreparable damage to the device and the connected LEDs.
120-277VAC
The driver accepts a universal mains voltage input of 120-277VAC,
50/60Hz.
DALI
Use these connectors to connect the driver to a DALI network. Always
combine a DA+ and DA- connector for either data input or data output.
LED wire length
Maximum wire length from LED driver to LED engine at full load:
20
AWG value
Distance (m) 14
Distance (ft) 45.9
Please observe voltage drop over long wire lengths.
Longer wire lengths increase EMI susceptibility.
120-277
L
VAC
N
19 18 17 16
18 22 28 36
59 72.2 91.9 118.1
©
2013 eldoLED. All rights reserved. V2.4
More documentation and eldoLED's terms and conditions are available at www.eldoled.com.
DALI
LED groups
Indicates the location of the connectors to which you can connect your
LED groups. The four LED groups are controlled over two control
channels: DALI ballast 1 consists of LED group 1 and 2, and DALI bal-
last 2 consists of LED group 3 and 4.
Vf
60V
30V
0
0
Output voltage vs output current for 4 outputs with symmetrical load
Vf is 57V, LED current ranges from 200mA - 1050mA
typ
LEDcode/NTC
Use these connectors to connect a 47kΩ NTC thermistor for closed
loop LED engine temperature control.
(DL1060S1)
AWG 20-16
1
2
0.5-1.5 mm
2
9 mm
0.35 inch
mA
