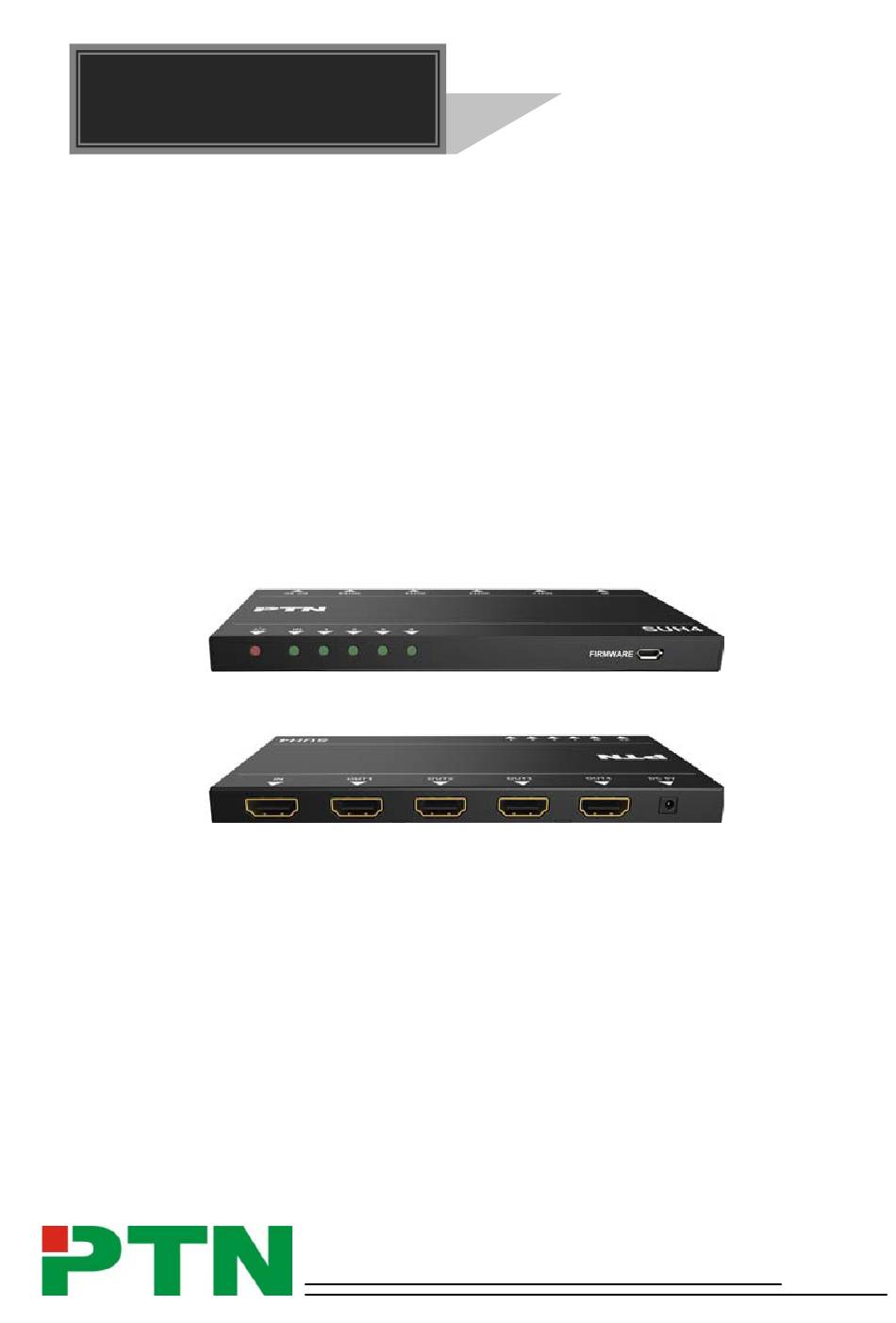

- Page 1 User Manual SUH4 PTN 4K HDMI Splitter 1x4 All Rights Reserved Version: SUH4_2014V1.0 www.PTN-electronics.com...
- Page 2 Unplug the power cord when left unused for a long period of time. Information on disposal for scrapped devices: do not burn or mix with general household waste, please treat them as normal electrical wastes. PTN Electronics Limited www.PTN-electronics.com...
- Page 3 Please refer to the dealers for the latest details. This manual is copyright PTN Electronics Limited. All rights reserved. No part of this publication may be copied or reproduced without the prior written consent of PTN Electronics Limited.
-
Page 4: Table Of Contents
4K HDMI Splitter 1x4 Contents 1. Introduction ......................... 1 1.1 Introduction to SUH4 ..................1 1.2 Features ......................1 1.3 Package List ...................... 1 2. Panel Description ......................2 2.1 Front Panel ......................2 2.2 Rear Panel ......................3 3. System Connection ..................... 4 3.1 Usage Precautions .................... -
Page 5: Introduction

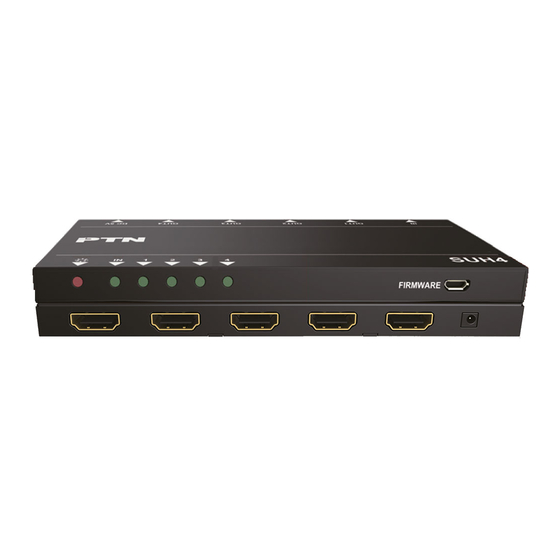

1. Introduction 1.1 Introduction to SUH4 SUH4 is a HDMI splitter featuring the capability to repeat HDMI or DVI source to 4 displays synchronously. Compliance with HDMI 1.4& HDCP1.4, SUH4 provides comprehensive resolution capacities up to 4K& 1080p 3D. It’s capable to automatically recognize the resolution and HDCP compliant status of the input signal. -
Page 6: Panel Description
HDMI OUTPUT 1~4 separately ④ FIRMWARE USB port, used for firmware update. Note: Output HDCP compliant status depends on input signal. When the input signal is with HDCP, then output signal is with HDCP and vice versa. PTN Electronics Limited www.PTN-electronics.com... -
Page 7: Rear Panel
Dolby Digital , DTS, DTS-HD) , while DVI signal contains solely video signal. c) SUH4 is capable to switch input signal format according to the displays. For example, when the input signal is HDMI and the display can only support DVI signal, SUH4 will switch the signal into DVI format. -
Page 8: System Connection
Step1. Connect a HDMI/ DVI source device (e.g. Blue-ray DVD) to the HDMI INPUT socket of SUH4 with HDMI cable. Step2. Connect HDMI displays to HDMI OUTPUT sockets of SUH4 with HDMI cable. Step3. Plug a DC 5V power adapter to the power port of SUH4. -
Page 9: Edid Management
(detecting from output 1~4). For example: when output 1 connects with a 1080p display, SUH4 will select 1080p as output resolution and distribute 1080p signal to displays connected to output 1~4. -
Page 10: Specification
4Kx2K, 1080P 3D@60Hz Max Pixel Clock 340MHz Gain HDCP Compliant with HDCP1.4 EDID In-built EDID management General Reference Temperature -10 ~ +40℃ 10% ~ 90% Humidity Power Power DC 5V 1A 3.6W (Max) Consumption Dimension (W*H*D)150x11x70mm Weight 0.12kg PTN Electronics Limited www.PTN-electronics.com... -
Page 11: Supported Input Video Formats
3840 x 2160@25Hz 3840 x 2160@30Hz 1080P 3D@60Hz Note: SUH4 supports 4k& 3D HDMI signals, please adopt quality HDMI cables compliant with HDMI1.4 for better transmission when connecting 4K or 3D sources. 5. Panel Drawing 150.00 mm 10.96 mm... -
Page 12: Troubleshooting & Maintenance
No HDMI signal output in The connecting cables may Check whether the cables SUH4 while local HDMI not be connected correctly are connected correctly input is in normal working or it may be broken. -
Page 13: After-Sales Service
4K HDMI Splitter 1x4 7. After-sales Service If there appear some problems when running SUH4, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: PTN warrants that its products will be free from defects in materials and workmanship for three years, which starts from the first day you buy this product (The purchase invoice shall prevail). - Page 14 4K HDMI Splitter 1x4 PTN Electronics Limited www.PTN-electronics.com...
- Page 15 4K HDMI Splitter 1x4 PTN Electronics Limited www.PTN-electronics.com...
- Page 16 PTN Electronics Limited Tel: +86-755-2846 1819 Fax: +86-755-8471 7796 Email: info@PTN-electronics.com Website: www.PTN-electronics.com...
