Skyvue NXG-3250-PS Owner's Manual page 15

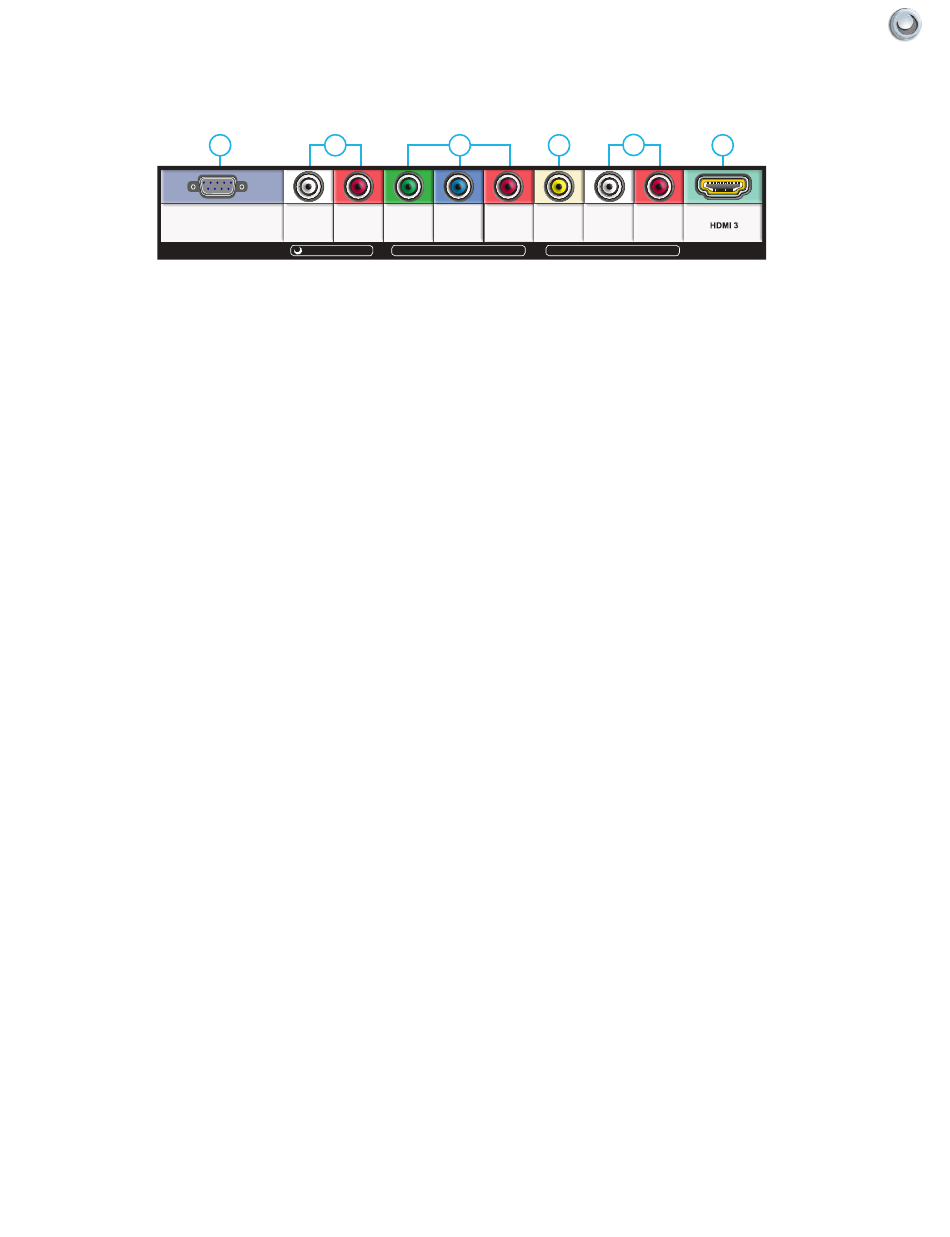

Rear Panel Connections - Vertical
9
RS-232
9. RS-232C - Long established standard connection ("C" is the current version) that describes the physical
interface and protocol for relatively slow data communications between computers and related devices.
10. AV Audio (L/R) Out / SkyVue Speakerbar - AV audio outputs are the standard means of passing analog line-lev-
el (or "preamp-level") audio signals between components. AV or RCA jacks are commonly found on most types of
A/V gear: receivers, CD players, turntables, MiniDisc recorders, cassette decks, VCRs, DVD players, and more.
11. Component Video Jacks -This 3-cable connection allows the chrominance (color) and luminance (brightness)
portions of a video signal to be processed separately. Component video improves color accuracy further by split-
ting the chrominance signal into two portions.
12. Composite Video In – The composite video input uses a single standard RCA-style jack to pass video sig-
nals. This type of connection combines chrominance and luminance information, sending it along a single cable.
Though capable of delivering a high-quality picture, composite video is not as accurate as component video.
13. Composite Audio In - Used in accompanyment with composite Video and component video jacks, AV audio in
(L/R) delivers analog sound from gaming consoles, dvd players, and VCRs.
14. HDMI 3 - Same as HDMI 2
Please note: This port does not support MHL devices.
Operator's Manual -
Model:
10
11
AV Y
AV
Pb
AUDIO (R) SIGNAL
AUDIO (L) SIGNAL
OUT IN
OUT IN
SPEAKER BAR COMPONENT
NXG-3250-PS
12 13
Pr AV AV
AV
SIGNAL AUDIO (L) AUDIO (R)
IN
IN IN
IN
COMPOSITE
VERTICAL TERMINAL PORTS
TV I
14
|
& C
nsTallaTIon onneCTIons
13
