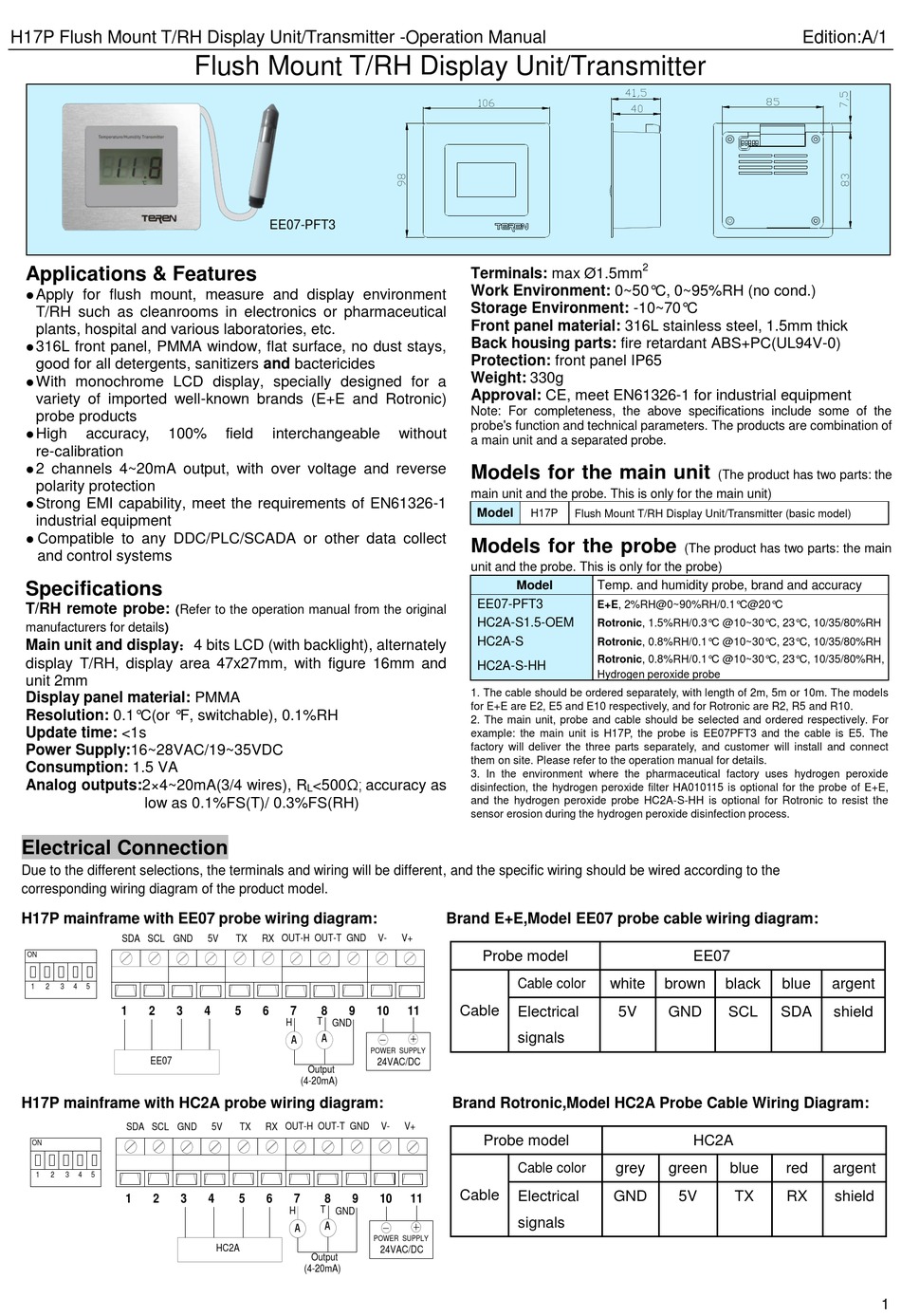

TEREN H17P Operation Manual

H17P Flush Mount T/RH Display Unit/Transmitter -Operation Manual
Applications & Features
Apply for flush mount, measure and display environment

T/RH such as cleanrooms in electronics or pharmaceutical
plants, hospital and various laboratories, etc.
316L front panel, PMMA window, flat surface, no dust stays,

good for all detergents, sanitizers and bactericides
With monochrome LCD display, specially designed for a

variety of imported well-known brands (E+E and Rotronic)
probe products
High accuracy, 100%

re-calibration
2 channels 4~20mA output, with over voltage and reverse

polarity protection
Strong EMI capability, meet the requirements of EN61326-1

industrial equipment
Compatible to any DDC/PLC/SCADA or other data collect

and control systems

Specifications

T/RH remote probe:
(Refer to the operation manual from the original
manufacturers for details)
Main unit and display：4 bits LCD (with backlight), alternately
display T/RH, display area 47x27mm, with figure 16mm and
unit 2mm
Display panel material: PMMA
Resolution: 0.1° C(or ° F, switchable), 0.1%RH
Update time: <1s
Power Supply:16~28VAC/19~35VDC
Consumption: 1.5 VA
Analog outputs:2×4~20mA(3/4 wires), R
low as 0.1%FS(T)/ 0.3%FS(RH)

Electrical Connection

Due to the different selections, the terminals and wiring will be different, and the specific wiring should be wired according to the
corresponding wiring diagram of the product model.
H17P mainframe with EE07 probe wiring diagram:
SDA SCL GND
ON
1 2 3 4 5
1 2 3
EE07
H17P mainframe with HC2A probe wiring diagram:
SDA SCL GND
ON
1 2 3 4 5
1 2
Flush Mount T/RH Display Unit/Transmitter
EE07-PFT3
field interchangeable
<500Ω; accuracy as
L
OUT-H OUT-T GND
5V TX RX
4 5 6 7 8 9
T GND
H
A
A
Output
(4-20mA)
5V TX RX OUT-H OUT-T GND
3 4 5 6 7 8
T GND
H
A
A
HC2A
Output
(4-20mA)
Terminals: max Ø1.5mm
Work Environment: 0~50° C, 0~95%RH (no cond.)
Storage Environment: -10~70° C
Front panel material: 316L stainless steel, 1.5mm thick
Back housing parts: fire retardant ABS+PC(UL94V-0)
Protection: front panel IP65
Weight: 330g
Approval: CE, meet EN61326-1 for industrial equipment
Note: For completeness, the above specifications include some of the
probe's function and technical parameters. The products are combination of
without
a main unit and a separated probe.

Models for the main unit

main unit and the probe. This is only for the main unit)
Model

Models for the probe

unit and the probe. This is only for the probe)
Model
EE07-PFT3
HC2A-S1.5-OEM
HC2A-S
HC2A-S-HH
1. The cable should be ordered separately, with length of 2m, 5m or 10m. The models
for E+E are E2, E5 and E10 respectively, and for Rotronic are R2, R5 and R10.
2. The main unit, probe and cable should be selected and ordered respectively. For
example: the main unit is H17P, the probe is EE07PFT3 and the cable is E5. The
factory will deliver the three parts separately, and customer will install and connect
them on site. Please refer to the operation manual for details.
3. In the environment where the pharmaceutical factory uses hydrogen peroxide
disinfection, the hydrogen peroxide filter HA010115 is optional for the probe of E+E,
and the hydrogen peroxide probe HC2A-S-HH is optional for Rotronic to resist the
sensor erosion during the hydrogen peroxide disinfection process.
Brand E+E,Model EE07 probe cable wiring diagram:
V- V+
Probe model
Cable color
Cable Electrical
10 11
signals
POWER SUPPLY
24VAC/DC
Brand Rotronic,Model HC2A Probe Cable Wiring Diagram:
V- V+
Probe model
Cable color
Cable
Electrical
9 10 11
signals
POWER SUPPLY
24VAC/DC
2
H17P
Flush Mount T/RH Display Unit/Transmitter (basic model)
(The product has two parts: the main
Temp. and humidity probe, brand and accuracy
E+E, 2%RH@0~90%RH/0.1° C@20° C
Rotronic, 1.5%RH/0.3° C @10~30° C, 23° C, 10/35/80%RH
Rotronic, 0.8%RH/0.1° C @10~30° C, 23° C, 10/35/80%RH
Rotronic, 0.8%RH/0.1° C @10~30° C, 23° C, 10/35/80%RH,
Hydrogen peroxide probe
EE07
white brown
5V GND
HC2A
grey green
GND 5V
