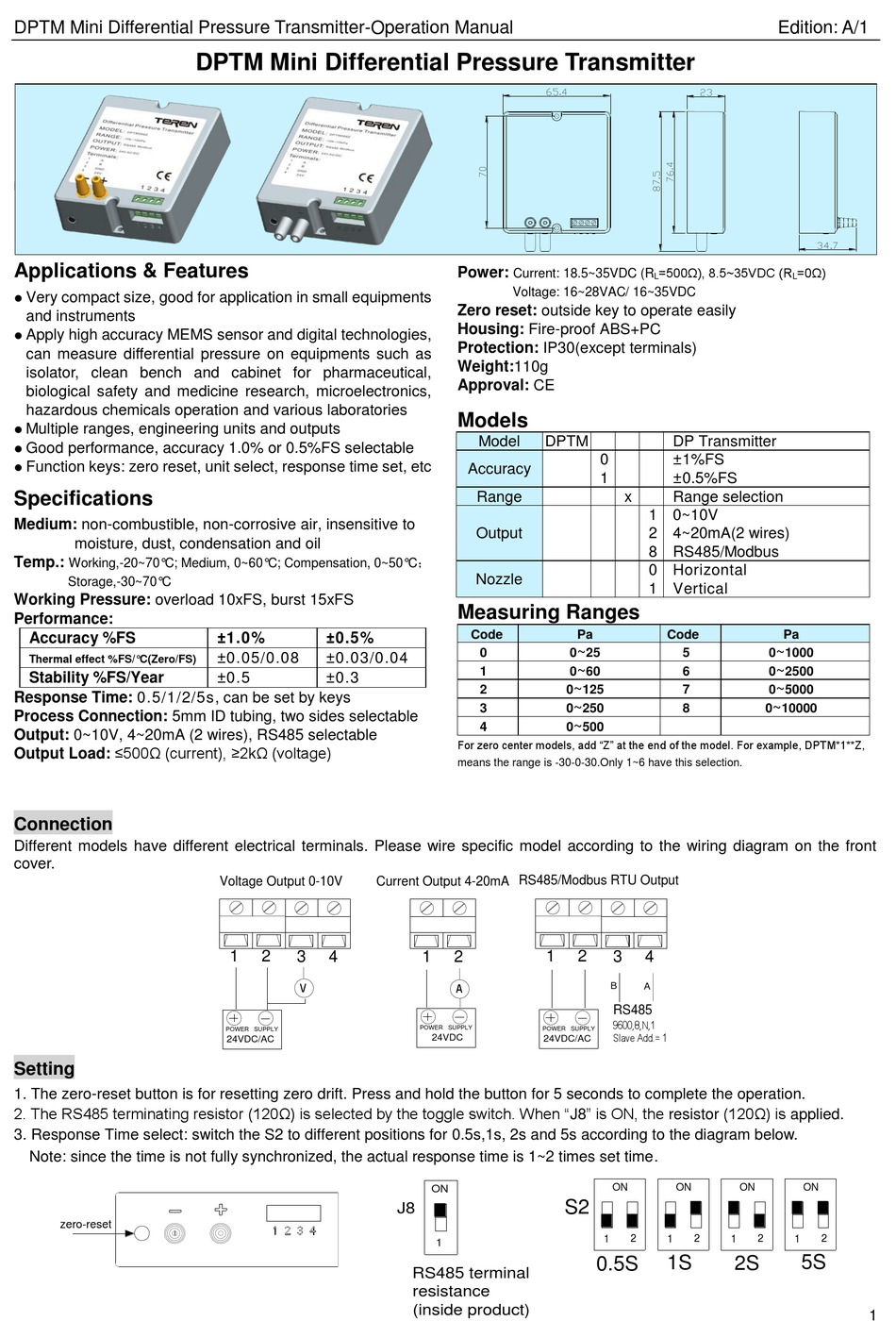

DPTM Mini Differential Pressure Transmitter-Operation Manual
Note: For zero center models, add "Z" at the end of the model. For example, DPTR*1*Z, means the range is -30-0-30.Only 1~6 have this selection.
Applications & Features
Very compact size, good for application in small equipments
and instruments
Apply high accuracy MEMS sensor and digital technologies,
can measure differential pressure on equipments such as
isolator, clean bench and cabinet for pharmaceutical,
biological safety and medicine research, microelectronics,
hazardous chemicals operation and various laboratories
Multiple ranges, engineering units and outputs
Good performance, accuracy 1.0% or 0.5%FS selectable
Function keys: zero reset, unit select, response time set, etc
Specifications
Medium: non-combustible, non-corrosive air, insensitive to
moisture, dust, condensation and oil
Temp.:
Working,-20~70° C; Medium, 0~60° C; Compensation, 0~50° C;
Storage,-30~70° C
Working Pressure: overload 10xFS, burst 15xFS
Performance:
Accuracy %FS
Thermal effect %FS/° C(Zero/FS)
Stability %FS/Year
Response Time: 0.5/1/2/5s, can be set by keys
Process Connection: 5mm ID tubing, two sides selectable
Output: 0~10V, 4~20mA (2 wires), RS485 selectable
Output Load: ≤500Ω (current), ≥2kΩ (voltage)
Connection
Different models have different electrical terminals. Please wire specific model according to the wiring diagram on the front
cover.
Setting
1. The zero-reset button is for resetting zero drift. Press and hold the button for 5 seconds to complete the operation.
2. The RS485 terminating resistor (120Ω) is selected by the toggle switch. When "J8" is ON, the resistor (120Ω) is applied.
3. Response Time select: switch the S2 to different positions for 0.5s,1s, 2s and 5s according to the diagram below.
Note: since the time is not fully synchronized, the actual response time is 1~2 times set time.
zero-reset
DPTM Mini Differential Pressure Transmitter
±1.0%
±0.5%
±0.05/0.08
±0.03/0.04
±0.5
±0.3
Voltage Output 0-10V
1
2
3
4
V
POWER SUPPLY
24VDC/AC
Power:
Current: 18.5~35VDC (R
Voltage: 16~28VAC/ 16~35VDC
Zero reset: outside key to operate easily
Housing: Fire-proof ABS+PC
Protection: IP30(except terminals)
Weight:110g
Approval: CE
Models
Model
DPTM
Accuracy
Range
Output
Nozzle
Measuring Ranges
Code
0
1
2
3
4
For zero center models, add "Z" at the end of the model. For example, DPTM*1**Z,
means the range is -30-0-30.Only 1~6 have this selection.
Current Output 4-20mA RS485/Modbus RTU Output
1
2
A
POWER SUPPLY
POWER SUPPLY
24VDC
24VDC/AC
ON
J8
1
RS485 terminal
resistance
(inside product)
=500Ω), 8.5~35VDC (R
L
DP Transmitter
0
±1%FS
1
±0.5%FS
x
Range selection
1 0~10V
2 4~20mA(2 wires)
8 RS485/Modbus
0 Horizontal
1 Vertical
Pa
Code
~
0
25
5
~
0
60
6
~
0
125
7
~
0
250
8
~
0
500
1
2
3
4
B
A
RS485
9600,8,N,1
Slave Add.= 1
ON
ON
S2
1
2
1
2
1S
0.5S
Edition: A/1
=0Ω)
L
Pa
~
0
1000
~
0
2500
~
0
5000
~
0
10000
ON
ON
1
2
1
2
5S
2S
1
