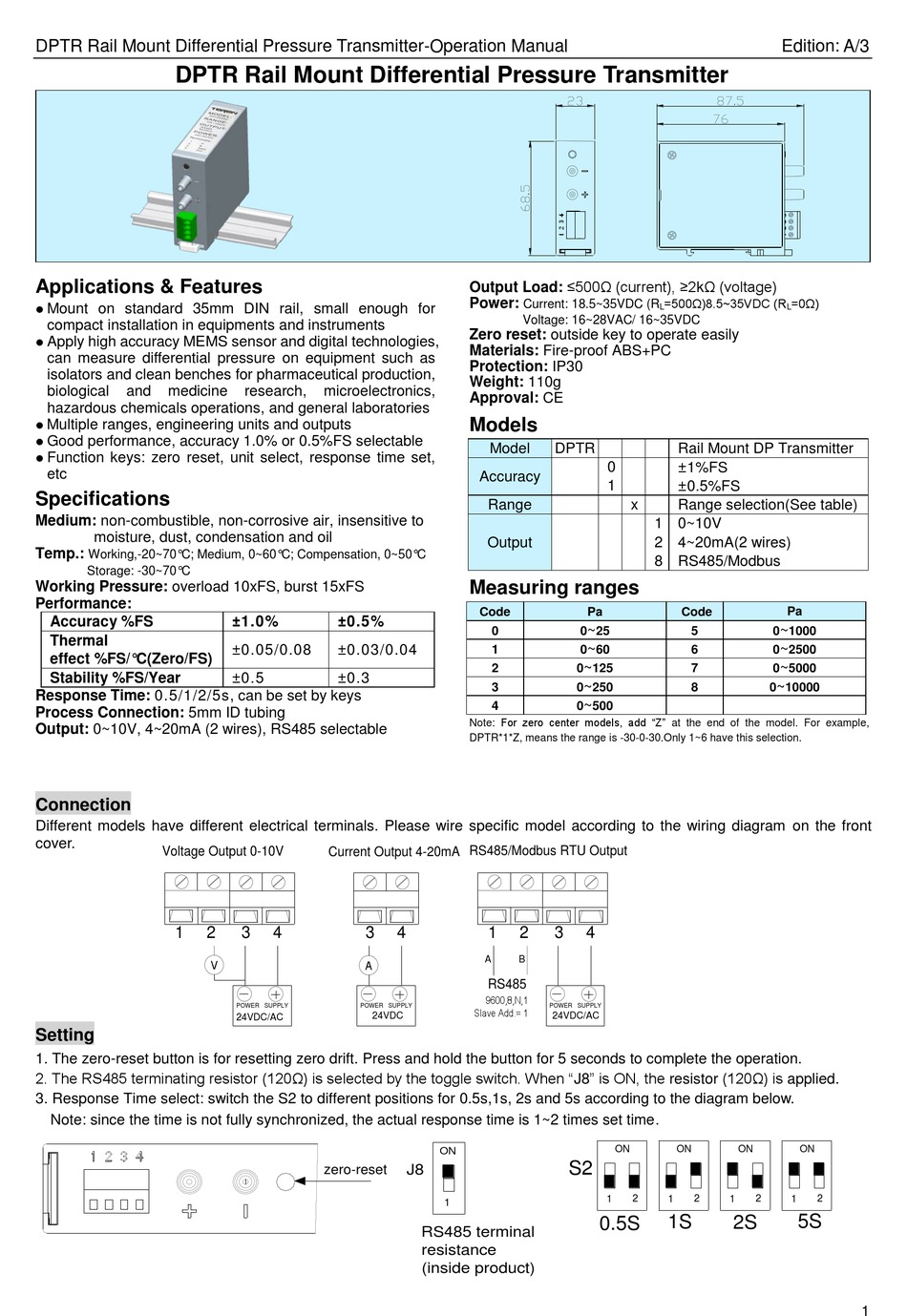

DPTR Rail Mount Differential Pressure Transmitter-Operation Manual
DPTR Rail Mount Differential Pressure Transmitter
Applications & Features
Mount on standard 35mm DIN rail, small enough for
compact installation in equipments and instruments
Apply high accuracy MEMS sensor and digital technologies,
can measure differential pressure on equipment such as
isolators and clean benches for pharmaceutical production,
biological
and
medicine
hazardous chemicals operations, and general laboratories
Multiple ranges, engineering units and outputs
Good performance, accuracy 1.0% or 0.5%FS selectable
Function keys: zero reset, unit select, response time set,
etc
Specifications
Medium: non-combustible, non-corrosive air, insensitive to
moisture, dust, condensation and oil
Temp.:
Working,-20~70° C; Medium, 0~60° C; Compensation, 0~50° C
Storage: -30~70° C
Working Pressure: overload 10xFS, burst 15xFS
Performance:
Accuracy %FS
Thermal
effect %FS/° C(Zero/FS)
Stability %FS/Year
Response Time: 0.5/1/2/5s, can be set by keys
Process Connection: 5mm ID tubing
Output: 0~10V, 4~20mA (2 wires), RS485 selectable
Connection
Different models have different electrical terminals. Please wire specific model according to the wiring diagram on the front
cover.
Voltage Output 0-10V
1
2
Setting
1. The zero-reset button is for resetting zero drift. Press and hold the button for 5 seconds to complete the operation.
2. The RS485 terminating resistor (120Ω) is selected by the toggle switch. When "J8" is ON, the resistor (120Ω) is applied.
3. Response Time select: switch the S2 to different positions for 0.5s,1s, 2s and 5s according to the diagram below.
Note: since the time is not fully synchronized, the actual response time is 1~2 times set time.
research,
microelectronics,
±1.0%
±0.5%
±0.05/0.08
±0.03/0.04
±0.5
±0.3
Current Output 4-20mA
3
4
3
V
A
POWER SUPPLY
POWER SUPPLY
24VDC
24VDC/AC
zero-reset
Output Load: ≤500Ω (current), ≥2kΩ (voltage)
Power:
Current: 18.5~35VDC (R
Voltage: 16~28VAC/ 16~35VDC
Zero reset: outside key to operate easily
Materials: Fire-proof ABS+PC
Protection: IP30
Weight: 110g
Approval: CE
Models
Model
DPTR
Accuracy
Range
Output
Measuring ranges
Code
0
1
2
3
4
Note: For zero center models, add "Z" at the end of the model. For example,
DPTR*1*Z, means the range is -30-0-30.Only 1~6 have this selection.
RS485/Modbus RTU Output
4
1
2
3
A
B
RS485
9600,8,N,1
POWER SUPPLY
Slave Add.= 1
24VDC/AC
ON
S2
J8
1
RS485 terminal
resistance
(inside product)
=500Ω)8.5~35VDC (R
L
Rail Mount DP Transmitter
0
±1%FS
1
±0.5%FS
x
Range selection(See table)
1 0~10V
2 4~20mA(2 wires)
8 RS485/Modbus
Pa
Code
~
0
25
5
~
0
60
6
~
0
125
7
~
0
250
8
~
0
500
4
ON
ON
ON
2
2
1
1
1
1S
2S
0.5S
Edition: A/3
=0Ω)
L
Pa
~
0
1000
~
0
2500
~
0
5000
~
0
10000
ON
2
2
1
5S
1
