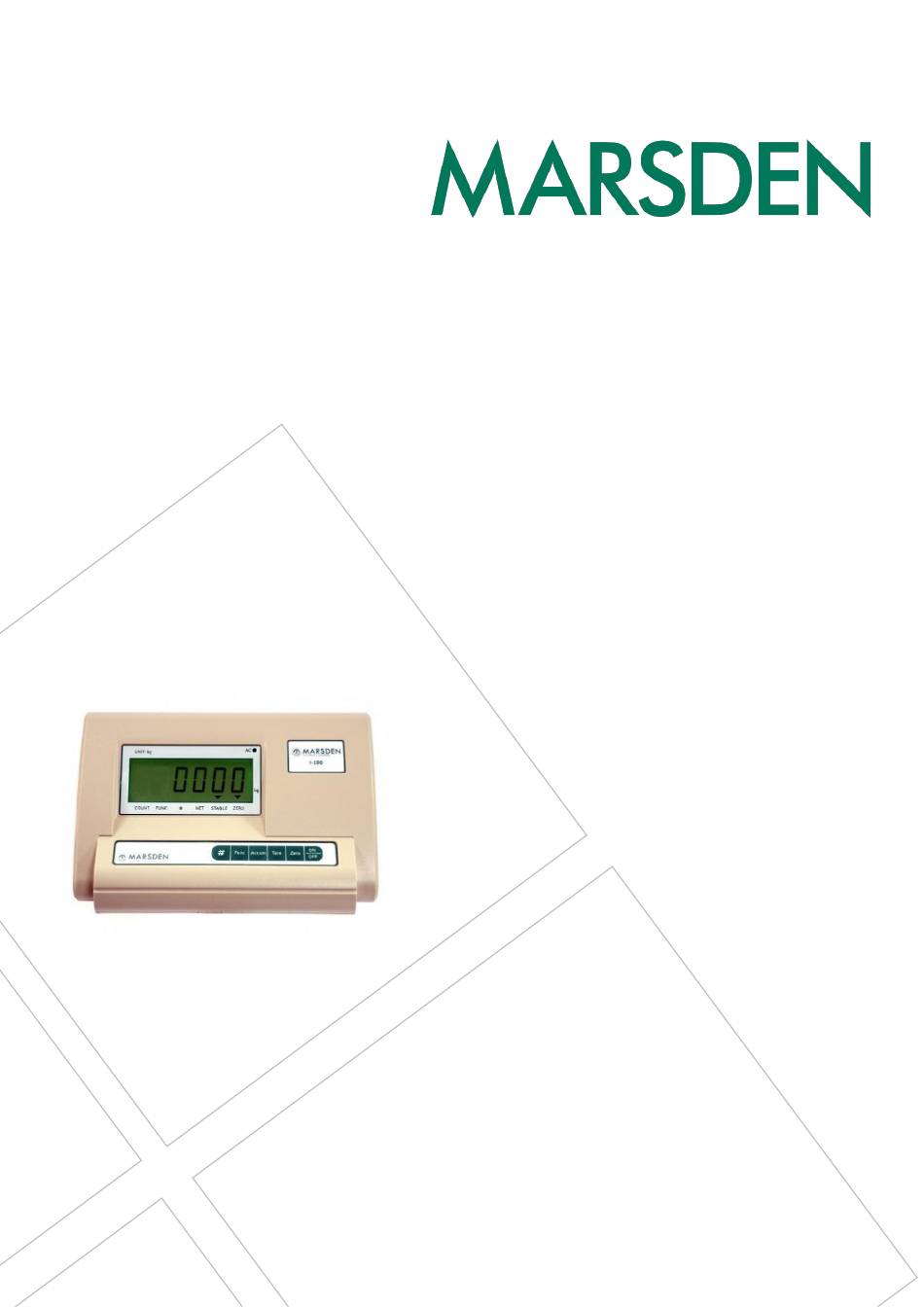

- Page 1 USER MANUAL I-100 Indicator Please take time to read these instructions before starting to use this indicator Version 1.0 06/17...
-
Page 2: Table Of Contents
Contents Product Specification Safety Instructions Before Using the Scale Operation: Basic Functions Operation: Advanced Functions Error Messages Page 2... -
Page 3: Product Specification
Load Cell Sensitivity 1.5~3mV/V Scale Interval 1/2/5/10/20/50 option Please note: Marsden’s policy is one of continuous development and therefore we reserve the right to change product specification without notice. Indicator images in this manual are for illustration purposes only. Page 3... -
Page 4: Safety Instructions
• The scale does not require any routine maintenance. However, we recommend checking the scale’s accuracy at regular intervals. If any inaccuracies occur, please contact your local dealer or service partner. • You can book an accuracy check with the Marsden Service team on 01709 364296. Page 4... -
Page 5: Before Using The Scale

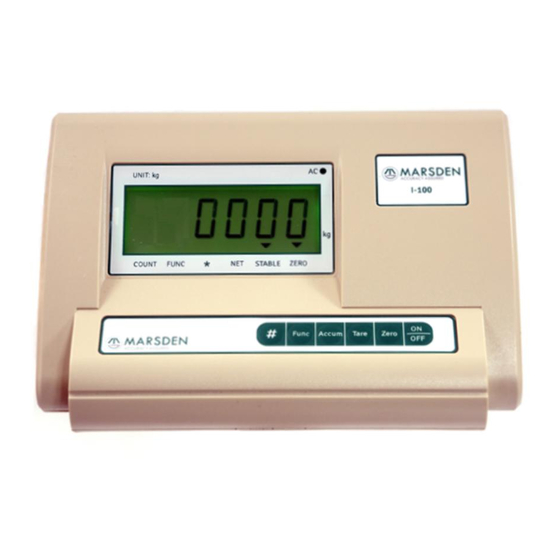

Before using the Indicator • The I-100 indicator uses power from the DC6V/4AH rechargeable battery, or can be powered from the mains lead which is hard wired into the indicator. • Once switched on, the scale is only ready to use once the display shows 0.000. -
Page 6: Operation: Basic Functions
Operation: Basic Functions Switching the Scale on/off Press ON/OFF to power-on the scale. When the scale shows 0.000 it is ready for weighing. To switch the scale off, press and hold ON/OFF for three seconds. The scale will now power down. Setting the Scale to Zero If at any time the reading shows anything other than 0.000 when... -
Page 7: Operation: Advanced Functions
Operation: Advanced Functions Tare Function Place the item you wish to deduct the weight of (such as a pallet or box) on the scale and press TARE. The scale will show a minus reading. The indicator will then display the reading as zero. - Page 8 Counting Function To count items on the scale, first place a sample quantity on the scale. Switch the indicator to count mode by pressing FUNC, holding the button until ‘COUNT’ is displayed Press ACCUM. ‘C00000’ will display on the screen. Use the TARE key to move right and ZERO to increase the sample size.
- Page 9 Accumulation Function You can use the scale to total up several loads. Add your first item to the scale and press ACCUM. Remove the item from the scale. Add the next item to the scale and press ACCUM again. To clear accumulated readings press FUNC.
-
Page 10: Error Messages
If the error occurs again, contact your dealer/Marsden. ERR 2 The zero point is out of Please contact Marsden or range when calibrated. your dealer. ERR 3 The zero point is out of Check nothing is range when starting up the underneath the scale. - Page 12 Tel: 01709 364296 / 0800 169 2775 Fax: 01709 364293 E-mail: sales@marsdengroup.co.uk Manufacturing and Distribution: Unit 7, Centurion Business Park, Coggin Mill Way, Rotherham, S60 1FB Head Office: Unit 1, Genesis Business Park, Sheffield Road, Rotherham S60 1DX www.marsden-weighing.co.uk...
