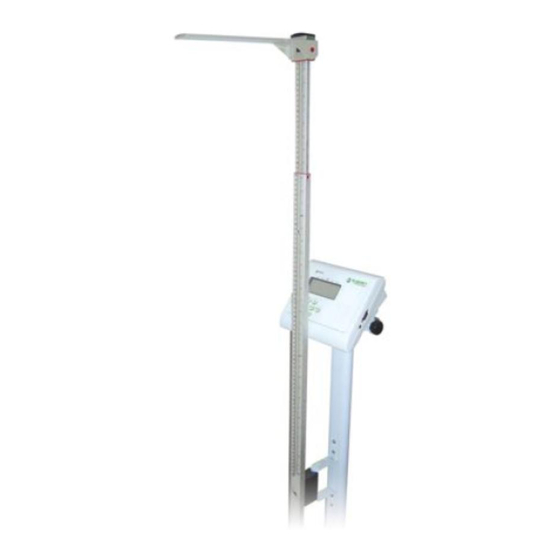

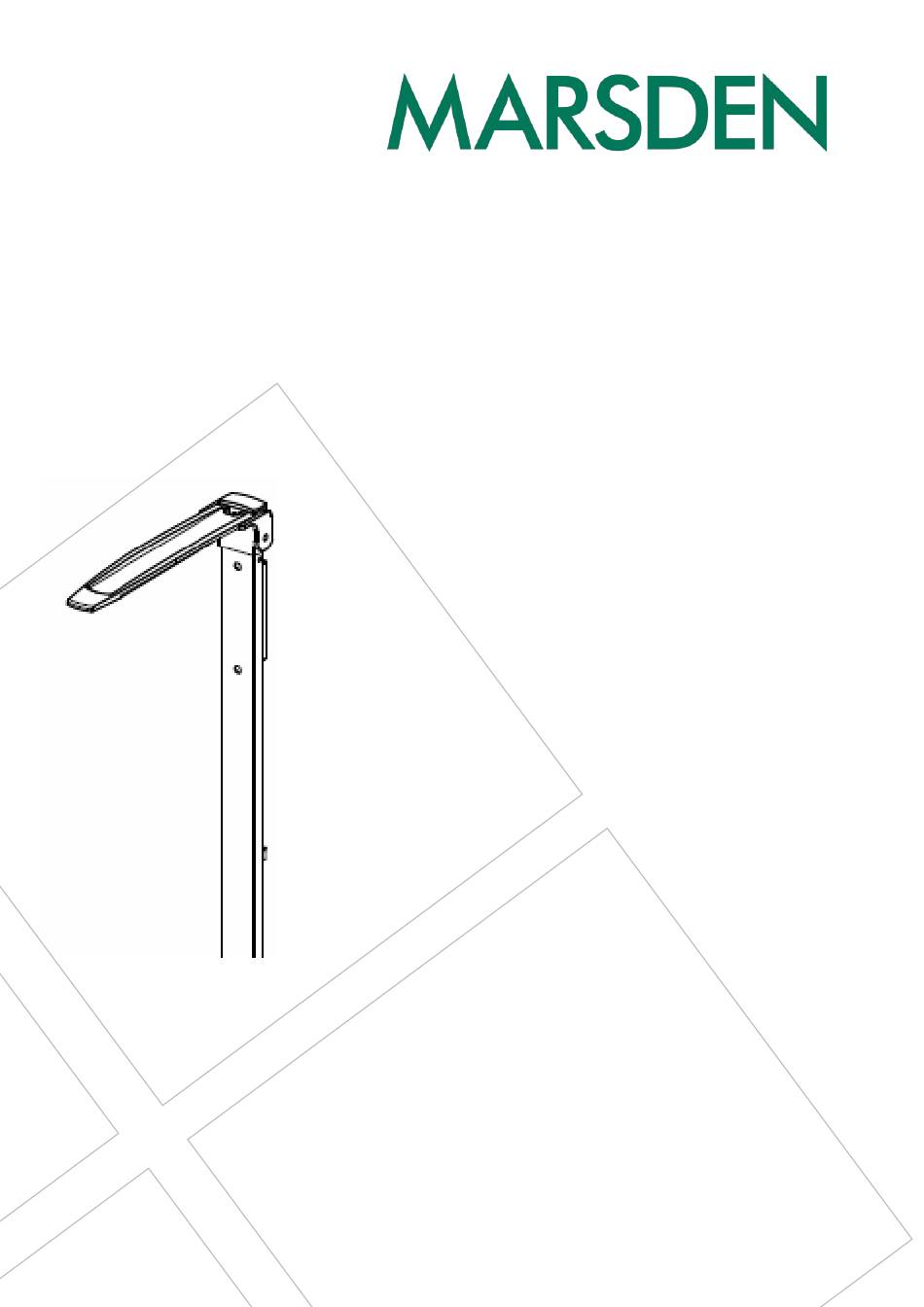

- Page 1 USER MANUAL HM-201M Marsden Height Measure Please take time to read these instructions before using this product Version 1.1 03/18...
- Page 2 Contents Introduction Product Specification Safety Instructions Warranty Assembly Instructions Operation Page 2...
- Page 3 Thank you for purchasing a Marsden professional medical product. This is a precision height measure and considerate use will result in many years of accurate weighing. Product Specification Model HM-201M In accordance with 2007/47/EC: Class I Accuracy Class with measuring function...
- Page 4 • Use assembly material supplied. • To avoid risk of injury, always fold down the measuring slide after height has been measured. Marsden/the manufacturer shall not be liable for damages arising from failure to heed the following instructions: • Inappropriate installation/use will render the warranty null and void.
- Page 5 Assembly Instructions: With Bracket Mark a cross at 54cm off the ground. Align the cross with one hole; mark the position for second hole. Drill through both markings. Insert raw plugs into holes and screw bracket to the wall. Screw height rod on the bracket. Assembly Instructions: Without Bracket Make a cross at 51.5cm off the ground.
- Page 6 Operation When measuring over 120cm: Pull out the rod. Position plate to the horizontal position. Height reading can be read at (A). When measuring under 120cm: Fold the plate down, and press and hold button. With the button held down, pull down the head piece.
- Page 7 Page 7...
- Page 8 Tel: 01709 364296 / 0800 169 2775 Fax: 01709 364293 E-mail: sales@marsdengroup.co.uk Manufacturing and Distribution: Unit 7, Centurion Business Park, Coggin Mill Way, Rotherham, S60 1FB Head Office: Unit 1, Genesis Business Park, Sheffield Road, Rotherham S60 1DX www.marsden-weighing.co.uk IN-1409 [16089B] REV 11/2016...
