Medik YA-02E User Manual

YA-02E

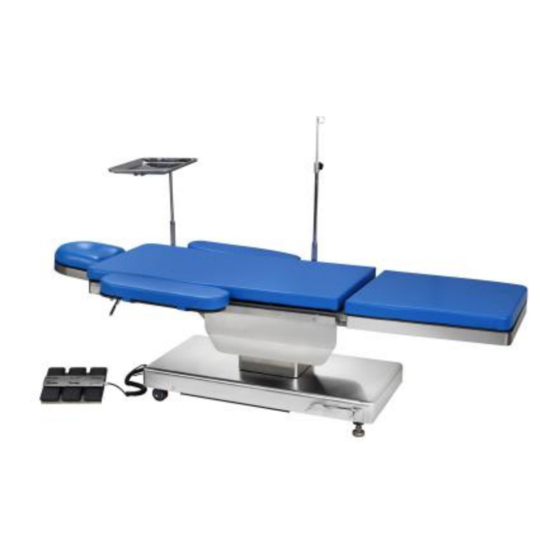

Ophthalmic Surgery Operating Table

Description

Use and brief introduction

The product belongs to class I, type B and IPX4.
YA-02E is designed and made specially according to ophthalmologists/
advice and can apply to carious operations for ophthalmology.
Tabletop lift ,back plate and leg plate adopts electric type,easy to
operate.

General content

Basic data


The technical data should look at Form 1
Form 1: basic data
Basic
length
data
Model L
YA-02E ≥2080mm

Standard table configuration includes


NO. Item quantity
1 Head plate 1 piece
2 Infusion Rod 1 Ppiece
3 Arm support 2 pieces
Gross weight、net weight、volume

Gross weight:170kg，net weight:220kg，Volume（long×width
×height）2100mm×720mm×730mm.

Safe work loading capacity of YA-02E


The safe working load of the table is 250 kg.
unit:mm
lowest
Distance of
Width height of
elevation
tabletop
B h min
550mm 500mm ≥200mm
NO. Item
Instrument
4
Tray
5 Foot switch
6 Fixing clamp

Commissioning

keeping

Inside its original packing the operating table may be exposed for
a period of 15 weeks to environmental conditions within the limits of :
Ambient temperature
atmospheric humidify
Atmospheric pressure
The table should be kept in a clean place, never put in the places

where influenced by atmospheric pressure, temperature,
humidity, aeration, sunshine, or dust and sulfur.
The table should be kept separately from chemicals.

stock in a ventilated place.


Transportation


Upon leaving the factory, the operating table are positioned fit for
transportation. In case of further transportation at a later date, we
recommend to adjust the operating table into the same position.
In order to transport the operating table,adjust seat and back

section in to horizontal position.
Remove the head and leg plates,and detach other accessories.

Adjust the table-top into minimum height.


Attention before using


Please Check the switch, and be sure they can work.

S
Please confirm all the power line are connected right and safely.

Do not pull or push the shields of back and leg section joints.

Check during adjustment that there is no foreign obstacles
between shields.

Using adjust


Adjustment of leg plate

Quantity
The electric leg plate part is controlled by the hand remote.The
1 piece
leg plate is gas spring control.Press down the gas spring,then move the
leg plate to the position you need.
1 piece

Fixing of accessories


2 pieces
There is rail on the both side of the table，you can use the fixing clamp
the set up all the accessories.
10℃~40℃
≤80%
700 hPa~1060 hPa
