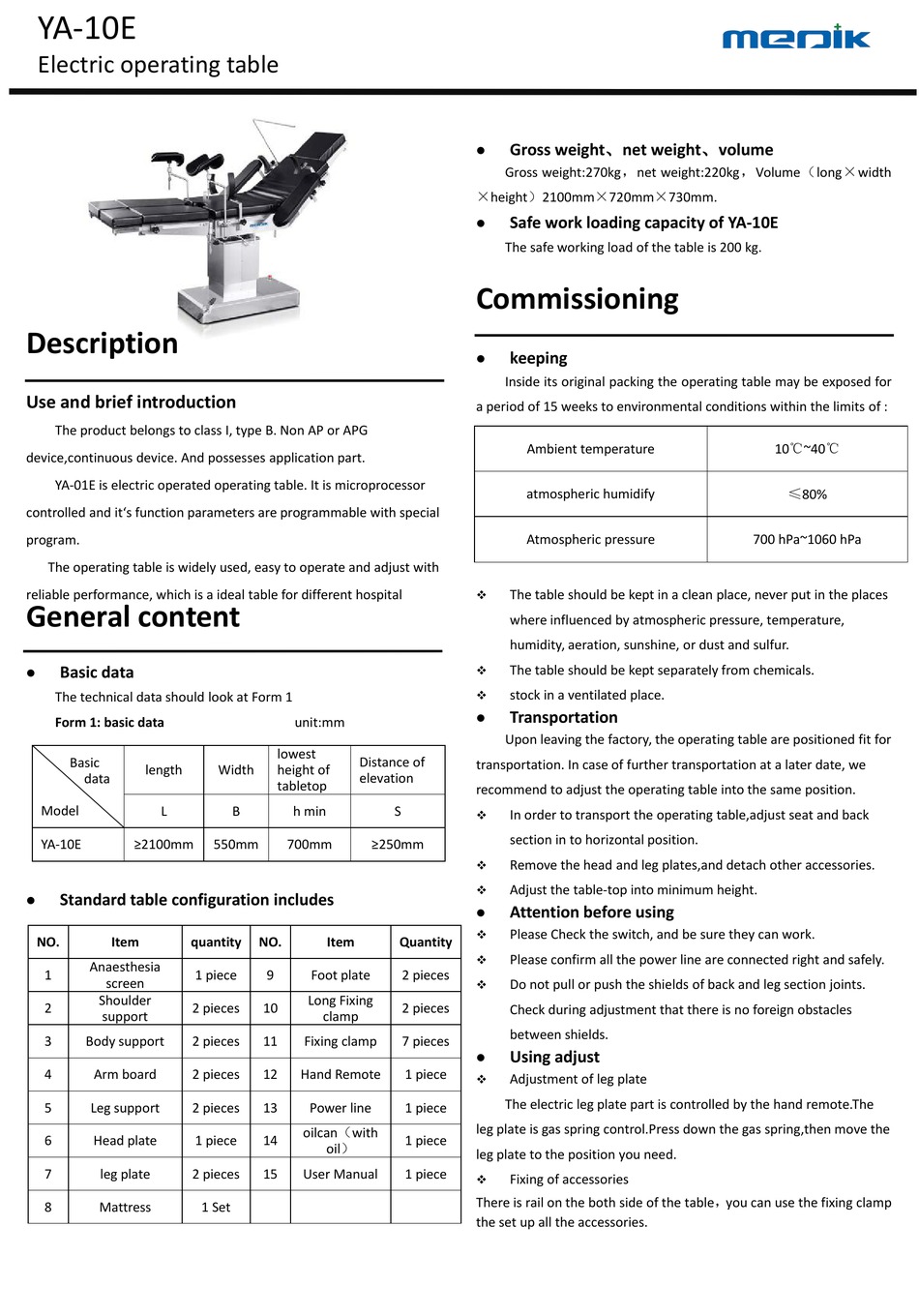

Medik YA-10E Quick Start Manual

YA-10E

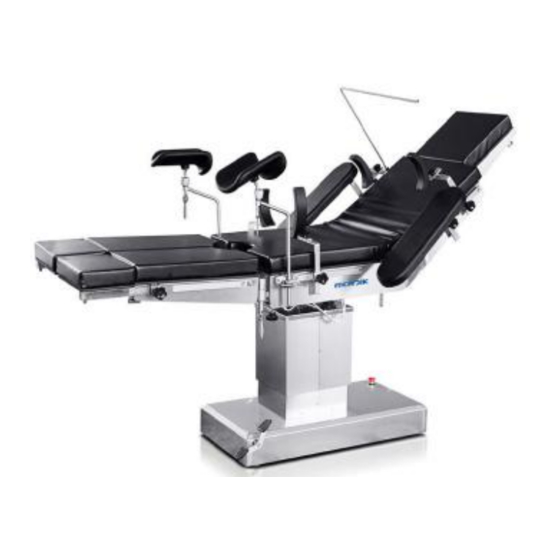

Electric operating table

Description

Use and brief introduction

The product belongs to class I, type B. Non AP or APG
device,continuous device. And possesses application part.
YA-01E is electric operated operating table. It is microprocessor
controlled and it's function parameters are programmable with special
program.
The operating table is widely used, easy to operate and adjust with
reliable performance, which is a ideal table for different hospital

General content

Basic data


The technical data should look at Form 1
Form 1: basic data
Basic
length
data
Model
L
YA-10E ≥2100mm
Standard table configuration includes

NO. Item quantity
Anaesthesia
1 1 piece
screen
Shoulder
2 2 pieces
support
3 Body support 2 pieces
4 Arm board 2 pieces
5 Leg support 2 pieces
6 Head plate 1 piece
7 leg plate 2 pieces
8 Mattress
unit:mm
lowest
Distance of
Width height of
elevation
tabletop
B h min
550mm 700mm ≥250mm
NO. Item
9 Foot plate
Long Fixing
10
clamp
11 Fixing clamp
12 Hand Remote
13 Power line
oilcan（with
14
oil）
15 User Manual
1 Set
Gross weight、net weight、volume

Gross weight:270kg，net weight:220kg，Volume（long×width
×height）2100mm×720mm×730mm.
Safe work loading capacity of YA-10E

The safe working load of the table is 200 kg.

Commissioning

keeping

Inside its original packing the operating table may be exposed for
a period of 15 weeks to environmental conditions within the limits of :
Ambient temperature
atmospheric humidify
Atmospheric pressure
The table should be kept in a clean place, never put in the places

where influenced by atmospheric pressure, temperature,
humidity, aeration, sunshine, or dust and sulfur.
The table should be kept separately from chemicals.

stock in a ventilated place.


Transportation


Upon leaving the factory, the operating table are positioned fit for
transportation. In case of further transportation at a later date, we
recommend to adjust the operating table into the same position.
S
In order to transport the operating table,adjust seat and back

section in to horizontal position.
Remove the head and leg plates,and detach other accessories.

Adjust the table-top into minimum height.


Attention before using


Please Check the switch, and be sure they can work.

Quantity
Please confirm all the power line are connected right and safely.

2 pieces
Do not pull or push the shields of back and leg section joints.

2 pieces
Check during adjustment that there is no foreign obstacles
between shields.
7 pieces

Using adjust


1 piece
Adjustment of leg plate

The electric leg plate part is controlled by the hand remote.The
1 piece
leg plate is gas spring control.Press down the gas spring,then move the
1 piece
leg plate to the position you need.
1 piece
Fixing of accessories

There is rail on the both side of the table，you can use the fixing clamp
the set up all the accessories.
10℃~40℃
≤80%
700 hPa~1060 hPa
