KBS TP-12/E Installation, Operation And Maintenance Instructions

Teppanyaki electric
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

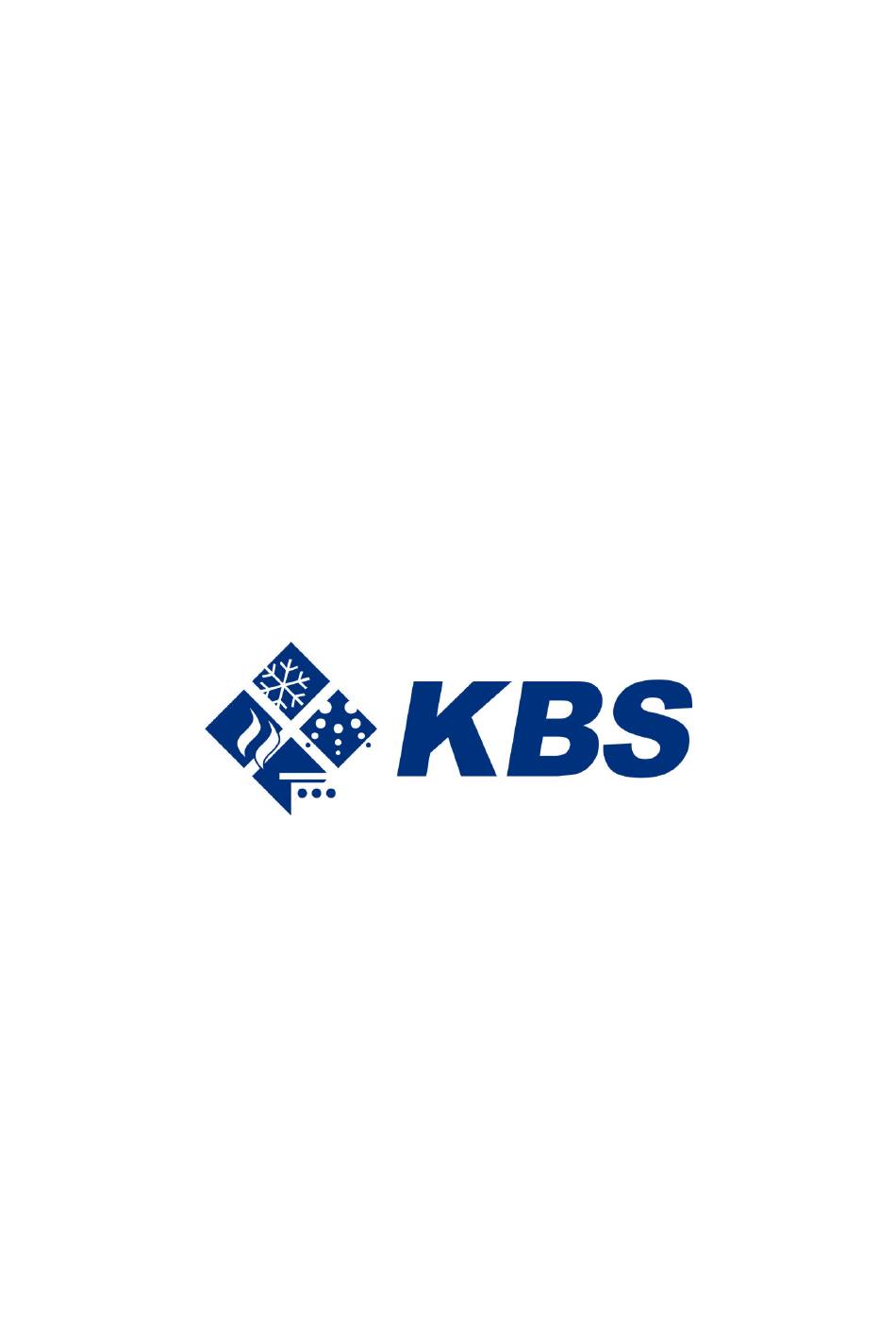

BEDIENUNGSANLEITUNG
KBS Gastrotechnik GmbH – Schoßbergstraße 26 – 65201 Wiesbaden
www.kbs-gastrotechnik.de
Stand Juli 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TP-12/E and is the answer not in the manual?

Questions and answers

Related Manuals for KBS TP-12/E

Summary of Contents for KBS TP-12/E

  • Page 1 BEDIENUNGSANLEITUNG KBS Gastrotechnik GmbH – Schoßbergstraße 26 – 65201 Wiesbaden www.kbs-gastrotechnik.de Stand Juli 2022...
  • Page 2 Installation, Operation and Maintenance Instructions Teppanyaki Electric Model : TP-12/E Die Cast Heater Food Pan-Floor Model TP-12/E Portable Die Cast Heater Oil Drip Pan-Portable Model TP-15/E Die Cast Heater Food Pan-Floor Model TP-15/E Portable Die Cast Heater Oil Drip Pan-Portable Model Note: The picture is illustration only.

  • Page 3: Preface

    Preface Dear customer, Thank you for choosing our product as your trusted partner. We ensure you that we always give our best as we produce this appliance by using the finest materials. NAYATI Teppanyaki Electric is excellent choice to cook. In order to obtain maximum benefits of this appliance, please read this manual instruction carefully.

  • Page 4: Table Of Contents

    Table of Contents Page Preface …………………………………………………………………………………………………………. Table of Contents……………………………………………………………………………………………… 1. General Information ………………………………………………………………………………………. Information for the Reader ………………………………………………………………………… Warning, Signs and Symbols ……………………………………………………………... ……… General Information of the Appliance ……………………………………………………………… Procedure for Requesting Service and Warranty…………………..……………………………. 2. Safety Instruction…………………………………………………………………………………………… 3. Technical Data ………………………………………………………………………………………………. Data Table ……………………………………………………………………………………………...

  • Page 5: General Information

    1. General Information 1.1 Information for the Reader Please read this manual instruction carefully before operating this appliance. To find the specific topics of interest to you quickly, refer to the index at the start of the manual. This manual is written to: All the information is instructed to general readers, i.e for users of the appliance.

  • Page 6: General Information Of The Appliance

    → Connect wire to the earth Important → non-observance can lead damage Note → Note for special appliance Attention → Non-observance can lead damage User sign → information must be read by user Technician sign → information must be read by technician CE Certification →...

  • Page 7: Procedure For Requesting Service And Warranty

    1.4 Procedure for Requesting Service and Warranty 1.4.1 Requesting Service Contact one of the authorized service centers or NAYATI for all requirements. When requesting service, state the data provide on the nameplate and provide a description of the fault. 1.4.2 Warranty NAYATI gives 12 months guarantee with certain conditions.

  • Page 8: Safety Instruction

    2. Safety Instruction Important! Before installing, place the appliance on solid, flat, stable and horizontal surface and connection availability. Read this manual instruction carefully before using NAYATI Teppanyaki Electric. Below are safety instructions that strictly conformed: Improper installation, maintenance, cleaning, or modification to the appliance could lead to severe injury or death and could damage the appliance.

  • Page 9: Technical Data

    3. Technical Data 3.1 Data Table 3.1.1 Technical Specification of Teppanyaki Electric TP-12E Table 1 : Technical Specification Model TP-12/E (J) TP-12/E Portable (J) Width Depth Height Width Depth Height Overall Dimension (mm) 1200 770/895 1200 770/895 Griddle Plate Dimension (mm) 50 –...

  • Page 10: Data Plate

    3.2 Data Plate 3.2.1 Technical plate reports the current setting. Fig. 1 Oriental-Electric-20201023 GB-Teppanyaki Electric...

  • Page 11: Overall Dimension

    3.3 Overall Dimension TP-12/E (J) Fig. 2 Fig. 2 Oriental-Electric-20201023 GB-Teppanyaki Electric...
  • Page 12 TP-12/E Portable (J) Fig. 3 Oriental-Electric-20201023 GB-Teppanyaki Electric...
  • Page 13 TP-15/E (J) Fig. 4 Oriental-Electric-20201023 GB-Teppanyaki Electric...
  • Page 14 TP-15/E Portable (J) Fig. 5 Oriental-Electric-20201023 GB-Teppanyaki Electric...

  • Page 15: Components List

    3.4 Component List 3.4.1 TP-12/E (J), TP-15/E (J) Table 3 : Fig. 6 Oriental-Electric-20201023 GB-Teppanyaki Electric...
  • Page 16 3.4.2 TP-12/E Portable (J), TP-15/E Portable (J) Fig. 7 Table 4 : Oriental-Electric-20201023 GB-Teppanyaki Electric...

  • Page 17: Handling And Installing

    4. Handling and Installing Important! Before installing, place the appliance on solid, flat, stable and horizontal surface and connection availability. The following instructions are intended for authorized and qualified installer. Before doing installation, adjustment, and maintenance operations, the installer must follow local and legal regulations. Cut the gas/electric supply before doing any installation.

  • Page 18: Safety Devices And Accessories

    4.3 Safety Devices and Accessories The appliance is provided with safety devices. The additional devices must be added if necessary to comply with the relevant legal requirement during the installation. There are food pan and power cable as accessories for these appliances. Important! Make the daily check that the safety devices are properly install and in good working order.
  • Page 19 Incorrect voltage may damage the appliance.  TP-12/E (J) (3N AC 400V 50/60Hz 11.7kW)  TP-12/E Portable (J) (3N AC 400V 50/60Hz 11.7kW)  TP-15/E (J) (3N AC 400V 50/60Hz 14.3kW)  TP-15/E Portable (J) (3N AC 400V 50/60Hz 14.3kW)

  • Page 20: Use And Operation

    Before operating Teppanyaki Electric for the first time, carefully clean the appliance to remove industrial oil/ lubricant. After using the Teppanyaki Electric, turn the knob to OFF position. 5.2 Control Panel Description 5.2.1 For example: TP-12/E (J) Fig. 8 : Green Pilot Lamp to indicates the appliance is ON / OFF...

  • Page 21: Switch On/Off

    5.3 Switch ON/OFF 5.3.1 Turn the Appliance ON 1. Turn the Thermostat Control Knob to the right. The Green Pilot Lamp will light indicate that the appliance is ready to use. 2. Turn the Thermostat Control Knob to the right again to increase the temperature. The Yellow Pilot Lamp will light to indicate the heating process is working.

  • Page 22: Routine Cleaning And Maintenance

    6. Routine Cleaning and Maintenance Clean the appliance to keep the functionality and durability. In the case of any failures, do not attempt to solve the problem but call your dealer immediately to ask for help. Do not attempt to dismantle the appliance, specialized mechanics must do all job.

  • Page 23: Trouble Shooting

    7. Trouble Shooting Table 5 : PROBLEM CAUSE CORRECTIVE ACTION Check and replace. Check Thermostat when adjusting Thermostat does not function Thermostat damaged temperature, Pin 1 and 2 must connected. Check and replace. Check Thermostat when turned ON, Thermostat with ON / OFF switch ON / OFF switch damaged Pin 5 and P5 must be does not function...

  • Page 24: General Exclusions

    8. General Exclusions GENERAL EXCLUSIONS Steamers   Damage to control knobs and buttons. Corrosion caused by high water hardness.   Discoloration of components due to heat. Damage resulting from lack of water flow to  Drainage does not meet requirements. the unit.

  • Page 25: Addresses

    9. Addresses Head Office Branch Offices Jl. Raya Terboyo No. 19 Local Offices: International Offices: Kawasan Industri Terboyo Megah  JAKARTA Semarang 50112, Central Java  SINGAPORE Indonesia Jl. Batu Ceper 55 A Nayati (Singapore) Pte Ltd, T +62 24 6580 573 Jakarta Pusat 10120 627A Aljunied Road, #07-02 F +62 24 6580 572...
  • Page 26 T y p e T P 12 E ( J ) V o l t a g e 3 N - 4 0 0 V F r e q u e n c y 5 0 / 6 0 H z P o w e r C o n s u m p t i o n 11.7 k W G a s C o n s u m p t i o n...
  • Page 27 D r a w i n g N r . C r e a t e d D a t e P r o j e c t : P a g e T P 12 E ( J ) P T.N A Y A TI IND ONESI A 5 / 2 / 2 0 16 4 4 4...
  • Page 28 List of Products Pr oduc t T ype Description Document t ype Shee t Path D r a w i n g N r . C r e a t e d D a t e P r o j e c t : P a g e T P 12 E ( J ) P T.N A Y A TI IND ONESI A...
  • Page 29 List of Connections Fr om T ype Colour Size D r a w i n g N r . C r e a t e d D a t e P r o j e c t : P a g e T P 12 E ( J ) P T.N A Y A TI IND ONESI A 5 / 2 / 2 0 16...
  • Page 30 List of Connections Fr om T ype Colour Size D r a w i n g N r . C r e a t e d D a t e P r o j e c t : P a g e T P 12 E ( J ) P T.N A Y A TI IND ONESI A 5 / 2 / 2 0 16...
  • Page 31 T y p e T P 12 E P o r t a b l e J V o l t a g e 3 N - 4 0 0 V F r e q u e n c y 5 0 / 6 0 H z P o w e r C o n s u m p t i o n 11.7 k W...
  • Page 32 D r a w i n g N r . C r e a t e d D a t e P r o j e c t : P a g e T P 12 E P o r t a b l e J P T.N A Y A TI IND ONESI A 2 0 5 12 / 2 6 / 2 0 17 E l e c t r i c...
  • Page 33 List of Products Pr oduc t T ype Description Document t ype Shee t Path D r a w i n g N r . C r e a t e d D a t e P r o j e c t : P a g e T P 12 E P o r t a b l e J P T.N A Y A TI IND ONESI A...
  • Page 34 List of Connections Fr om T ype Colour Size D r a w i n g N r . C r e a t e d D a t e P r o j e c t : P a g e T P 12 E P o r t a b l e J P T.N A Y A TI IND ONESI A 12 / 2 6 / 2 017...
  • Page 35 List of Connections Fr om T ype Colour Size D r a w i n g N r . C r e a t e d D a t e P r o j e c t : P a g e T P 12 E P o r t a b l e J P T.N A Y A TI IND ONESI A 12 / 2 6 / 2 017...
  • Page 36 T y p e T P 15 E ( J ) V o l t a g e 3 N - 4 0 0 V F r e q u e n c y 5 0 / 6 0 H z P o w e r C o n s u m p t i o n 14 .
  • Page 37 D r a w i n g N r . C r e a t e d D a t e P r o j e c t : P a g e T P 15 E ( J ) P T.N A Y A TI IND ONESI A 10 / 10 / 2 0 16 4 9 0...
  • Page 38 List of Products Pr oduc t T ype Description Document t ype Shee t Path D r a w i n g N r . C r e a t e d D a t e P r o j e c t : P a g e T P 15 E ( J ) P T.N A Y A TI IND ONESI A...
  • Page 39 List of Connections Fr om T ype Colour Size D r a w i n g N r . C r e a t e d D a t e P r o j e c t : P a g e T P 15 E ( J ) P T.N A Y A TI IND ONESI A 10 / 10 / 2 0 16...
  • Page 40 List of Connections Fr om T ype Colour Size D r a w i n g N r . C r e a t e d D a t e P r o j e c t : P a g e T P 15 E ( J ) P T.N A Y A TI IND ONESI A 10 / 10 / 2 0 16...
  • Page 41 List of Connections Fr om T ype Colour Size D r a w i n g N r . C r e a t e d D a t e P r o j e c t : P a g e T P 15 E ( J ) P T.N A Y A TI IND ONESI A 10 / 10 / 2 0 16...
  • Page 42 T y p e T P 15 E P o r t a b l e J V o l t a g e 3 N - 4 0 0 V F r e q u e n c y 5 0 / 6 0 H z P o w e r C o n s u m p t i o n 14 .
  • Page 43 D r a w i n g N r . C r e a t e d D a t e P r o j e c t : P a g e T P 15 E P o r t a b l e J P T.N A Y A TI IND ONESI A 10 / 10 / 2 0 16 4 9 0...
  • Page 44 List of Products Pr oduc t T ype Description Document t ype Shee t Path D r a w i n g N r . C r e a t e d D a t e P r o j e c t : P a g e T P 15 E P o r t a b l e J P T.N A Y A TI IND ONESI A...
  • Page 45 List of Connections Fr om T ype Colour Size D r a w i n g N r . C r e a t e d D a t e P r o j e c t : P a g e T P 15 E P o r t a b l e J P T.N A Y A TI IND ONESI A 10 / 10 / 2 0 16...
  • Page 46 List of Connections Fr om T ype Colour Size D r a w i n g N r . C r e a t e d D a t e P r o j e c t : P a g e T P 15 E P o r t a b l e J P T.N A Y A TI IND ONESI A 10 / 10 / 2 0 16...
  • Page 47 List of Connections Fr om T ype Colour Size D r a w i n g N r . C r e a t e d D a t e P r o j e c t : P a g e T P 15 E P o r t a b l e J P T.N A Y A TI IND ONESI A 10 / 10 / 2 0 16...

This manual is also suitable for:

Tp-12/e portableTp-15/eTp-15/e portable
