1.3

GPS

For centuries, sailors have been searching for a reliable and precise method of
travelling the world's waterways. From celestial navigating to the modern naviga-
tion techniques as Loran, Decca Navigator, Omega or Transit Satnav, each system
has had its problems with weather, range and reliability. Without doubt, the "Glo-
bal Positioning System", or GPS for short, is the most significant advance in navi-
gation: it gives the navigator a position 24 hours a day, 365 days a year in any
weather condition.
GPS is a satellite based navigation system which provides suitably equipped users
with accurate position, velocity and time data.
Originally the GPS, developed by the U.S. Department of Defense, was conceived
for military purposes, but now it is used in a host of civilian applications. To
safeguard military operations, the U.S. Department of Defense introduced an
artificial error, "Selective Availability" (SA), which causes a random position error
up to 100m (GPS has a natural precision of 15 meters).
GPS navigation uses satellite signals to determine your position in relation to a set
of satellites orbiting the earth. The GPS constellation of satellites continuously
send radio signals, containing the precise position for each satellite back to earth.
By knowing the position of 3 or 4 satellites and calculating various time differ-
ences between transmitted signals, the GPS receiver can determine its present
position anywhere on earth, and thanks to continuous updates, calculate speed
and course information.

How GPS works

Currently, the GPS constellation consists of 26 orbiting satellites (including 3
spares), but this number will increase in the future.
The GPS receiver computes an accurate position by calculating the distance to the
GPS satellites that orbit the earth. Signals are required from 3 satellites for two
dimensional (2D) position calculation whilst 4 satellites are required for three
dimensional (3D) position calculation.
As mentioned earlier, GPS satellites are not geostationary, but they are orbiting
the earth as illustrated on the following figure:
Note that position is repeatedly fixed through the following three steps while any
3 satellites are in line of sight.
The position calculation procedure is indicated in the following three steps:
1. GPS satellites continuously transmit their own precise orbital data and
the GPS receiver computes their locations by receiving this data.
14
data and MAX data cover the same area, the chart plotter
5
15
21
20
3
17
8

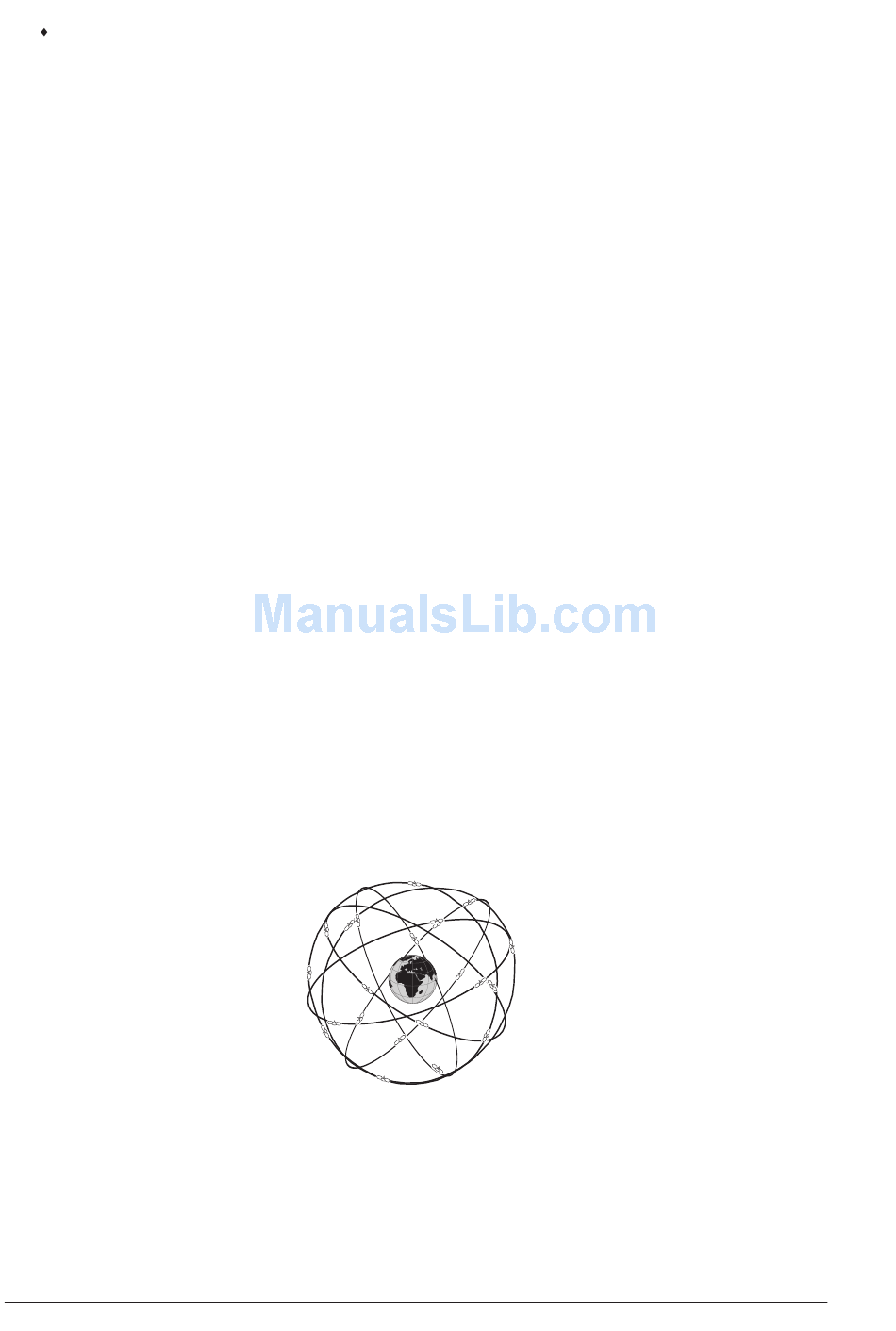

Fig. 1.3 - The GPS constellation
