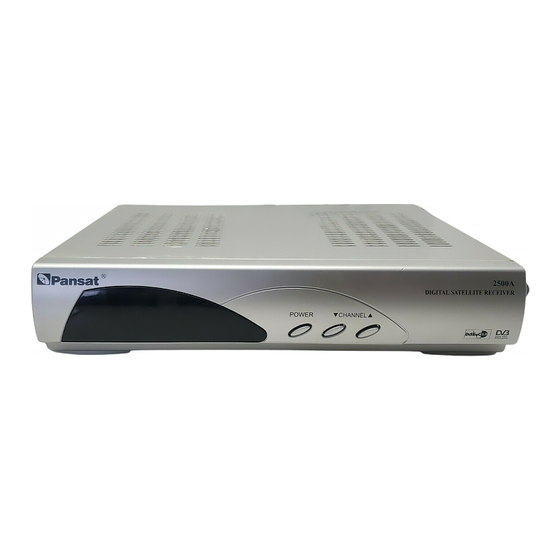

Your New Pansat 2500A
MPEG-2 Receiver
What is MPEG-2?
M
PEG-2 is the next satellite TV adventure that many longtime C-band enthusiasts are embrac-
ing. Like early C-band, MPEG-2 is an array of programming you can see nowhere else. And best
of all, MPEG-2 programming is totally free.
MPEG-2 signals are constantly changing. You might tune into a channel that was vacant yesterday
and find feeds of popular major drama or comedy television series, sports, international program-
ming and more. Channels that are here today may not be around tomorrow; or they might be on a
different frequency. To make the most of what MPEG-2 has to offer, be sure to watch for these
changes. To find the latest free-to-air offerings (including Transponder Frequencies, Symbol Rates
and Polarity), go to the Resource Page on Skyvision's web site, http://www.skyvision.com.
How do I connect my MPEG-2 receiver?
N
ot all satellite receivers are exactly the same. However, the hookup diagrams should give you
enough information to integrate your new MPEG-2 receiver into your existing system.
For a system with a C-band LNB only:
Connect the coax from your C-band LNB to the I F I N input on your MPEG-2 receiver. Connect
a coax cable from the IF O U T output on the MPEG-2 receiver to the C - B A N D L N B I N input
on your analog or 4DTV receiver. Run a coax from OUT TO TV to your analog or 4DTV
receiver, ANTENNA IN. If your TV has another coaxial or A/V input, you can use these
instead of the coaxial to the ANTENNA IN.

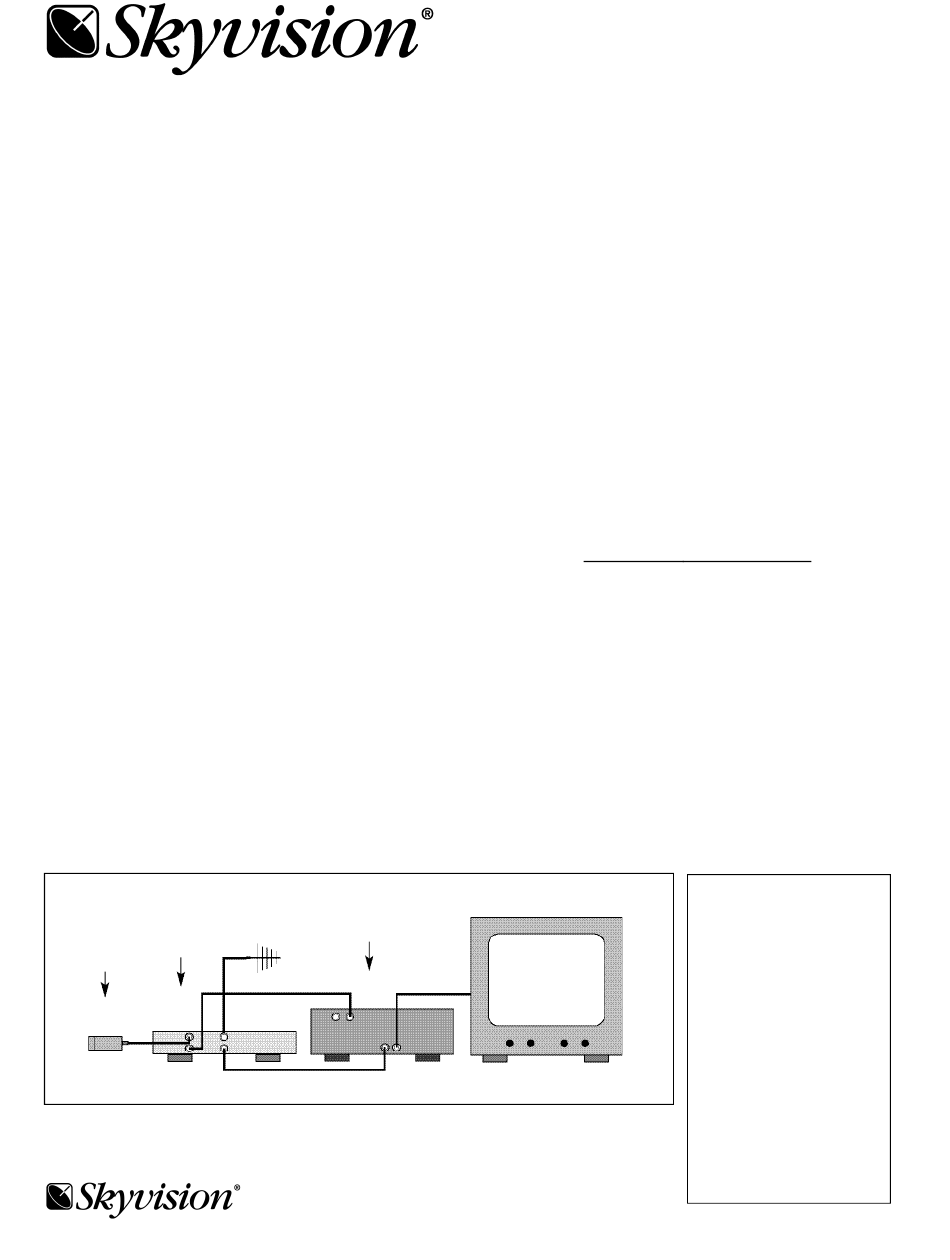

C-band Hookup Scheme for
MPEG-2 Digital Receiver
MPEG-2
receiver
C-band LNB
IF IN
IF OUT
1010 North Frontier Drive • Fergus Falls, MN 56537-1023
www.skyvision.com
Analog or 4DTV receiver
with dish positioner
C-band
LNB IN
Out to
A N T I N
Out to
A N T
T V
I N
T V
- over -
TECHNICAL SUPPORT
800-500-9279
NOTE: If you have a
4DTV Sidecar, see the
Skyvision insert,
Connecting Your 4DTV
Digital Sidecar, for
connection
instructions. Even in a
system that includes an
MPEG-2 receiver, the
C- and Ku-band LNBs
loop through the
Sidecar as described in
that insert.
Form 600-87M-0305
