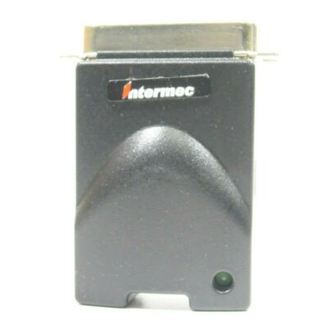

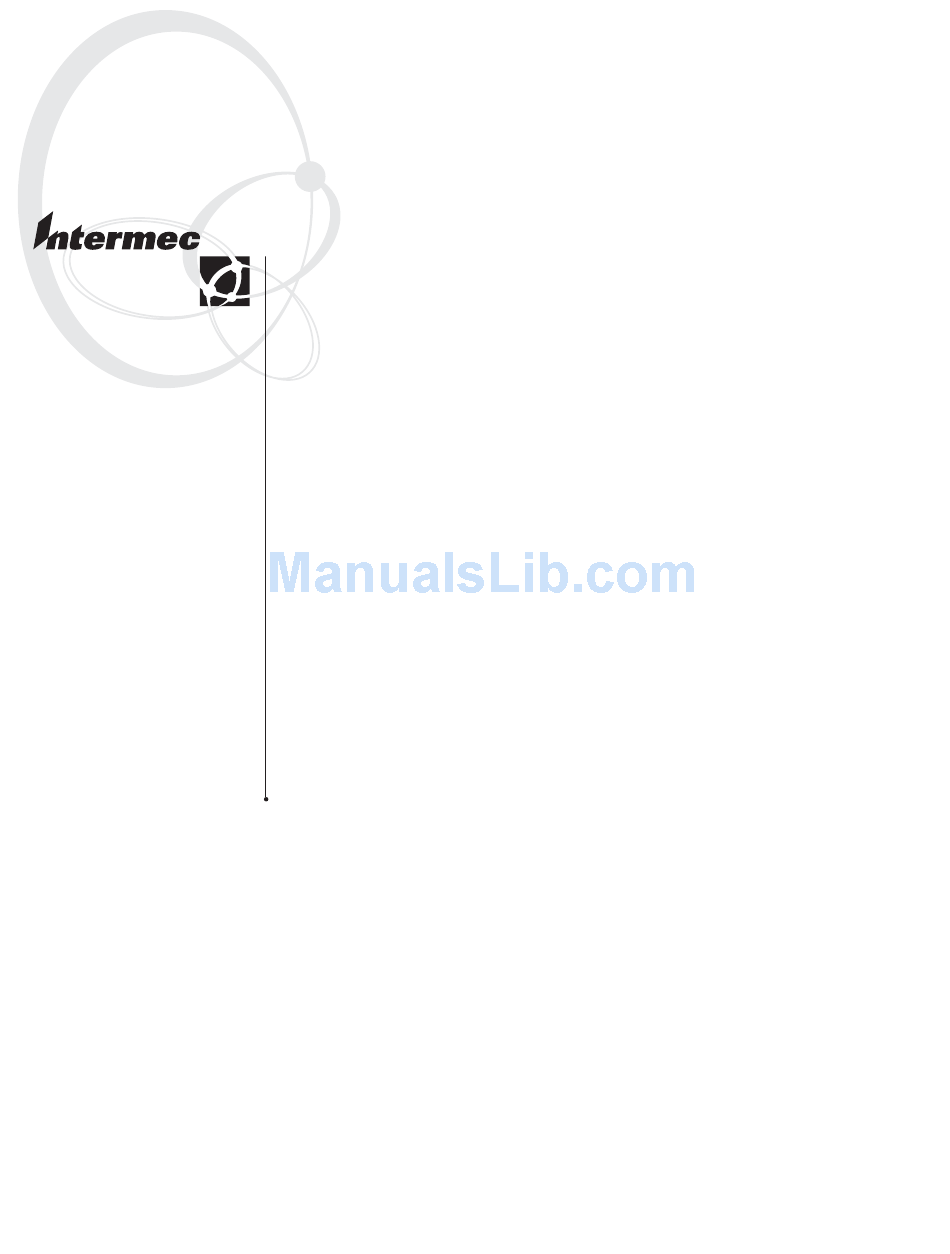

  • Page 1 Quick Start Guide EasyLAN 10i2 ™ Ethernet Adapter...
  • Page 2 Intermec. Information and specifications contained in this document are subject to change without prior notice and do not represent a commitment on the part of Intermec Technologies Corporation. © 2002-2004 Intermec Technologies Corporation. All rights reserved.

  • Page 3: Table Of Contents

    Out of the Box ...8 Installing the EasyLAN 10i2 Adapter...8 Connecting the EasyLAN 10i2 Adapter to Your Network...8 Printing a Test Label ...10 Downloading the IP Address ...10 Managing and Configuring the EasyLAN 10i2 Adapter...12 EasyLAN 10i2 Ethernet Adapter Quick Start Guide...
  • Page 4 EasyLAN 10i2 Ethernet Adapter Quick Start Guide...

  • Page 5: Introducing The Easylan 10I2 Adapter

    Ethernet network. Throughout the guide, “EasyLAN 10i2 adapter” is used to refer to both the internal and external adapter unless otherwise specified. You can only connect the external EasyLAN 10i2 adapter to these printers: • EasyCoder 91* • EasyCoder 601XP •...

  • Page 6: Physical Description

    Note: If you are using the internal EasyLAN 10i2 adapter, you cannot use the parallel port. The EasyLAN 10i2 adapter uses a 10BaseT connection, which has a network speed of 10 Mbps. Physical Description Test button 10BaseT connector EL10i011.eps Internal EasyLAN 10i2 Adapter...
  • Page 7 10 Mbps Ethernet network via a 10BaseT cable. External power supply Connects the external EasyLAN connector (external 10i2 adapter to a power source via adapter only) a power supply. Parallel port connector Provides the external EasyLAN (external adapter only)

  • Page 8: Out Of The Box

    • This guide and Important EasyLAN 10i2 Information! Installing the EasyLAN 10i2 Adapter Before you install the EasyLAN 10i2 adapter, make sure that you have the appropriate Ethernet cable and power cable. Also make sure that you have loaded media and ribbon into the printer.
  • Page 9 5 Connect the other end of the 10BaseT cable to an Ethernet port for your network. 6 If necessary, plug in the external power supply. 10BaseT cable External power supply connector EL10i008.eps EasyLAN 10i2 Ethernet Adapter Quick Start Guide Parallel port 10BaseT cable 10BaseT connector EL10i009.eps External power...

  • Page 10: Printing A Test Label

    7 Turn on the printer. The LED on the adapter flashes and then turns off. When you turn on the printer with the EasyLAN 10i2 adapter, the adapter runs through a set of power-up diagnostics for a few seconds. If the adapter is operating properly, the LED blinks momentarily and then turns off.
  • Page 11 The ARP command can vary between different UNIX systems. Berkeley System Distribution (BSD) type systems expect the host name and node address in reverse order. ® Furthermore, IBM AIX systems require the additional argument ether EasyLAN 10i2 Ethernet Adapter Quick Start Guide , where...

  • Page 12: Managing And Configuring The Easylan 10I2 Adapter

    Managing and Configuring the EasyLAN 10i2 Adapter If you want to manage or configure more advanced parameters on the EasyLAN 10i2 adapter, you can use the following tool: • Web browser interface. You can access the web browser interface by typing the IP address for the EasyLAN 10i2 in either Internet Explorer or Netscape.
