Installing the AC3
1
Place the battery charger on a fl at, stable, and clean surface that is within 1.5 m
(5 ft) of an AC power outlet.
2
Connect the AC power supply to the power
connector on the battery charger and to
an AC power outlet. The Status light in
each button turns on, showing that
the battery charger is ready to use.
Button
Power
(8 places)
connector
To prevent fi re or electric shock, do not expose the AC3 to rain or moisture.
You may need additional information when working with the AC3 in a data collection system.
Please visit our web site at www.intermec.com to download PDF fi les of our current manuals.
To order printed versions of the Intermec manuals, contact your local Intermec representative
or distributor.
Electrical rating:
Status light
(8 places)
Patent Information
Product is covered by one or more of the following
patents: 5,052,943; 5,195,183; 5,317,691; 5,331,580;
5,544,010; 5,644,471. There may be other U.S. and
foreign patents pending.

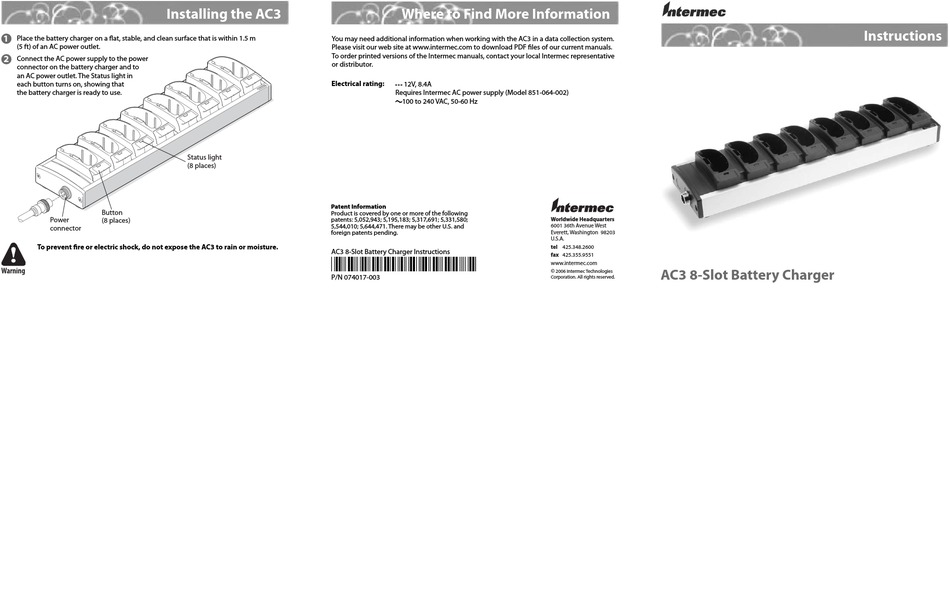

AC3 8-Slot Battery Charger Instructions
*074017-003*
cations
P/N 074017-003
Where to Find More Information
x 12V, 8.4A
Requires Intermec AC power supply (Model 851-064-002)
v100 to 240 VAC, 50-60 Hz
Worldwide Headquarters
6001 36th Avenue West
Everett, Washington 98203
U.S.A.
tel 425.348.2600
fax 425.355.9551
Specifi
www.intermec.com
©
2006 Intermec Technologies
Corporation. All rights reserved.
AC3 8-Slot Battery Charger
Instructions
