Intermec AC2 Quick Start Manual

Dock
Guide Start Quick

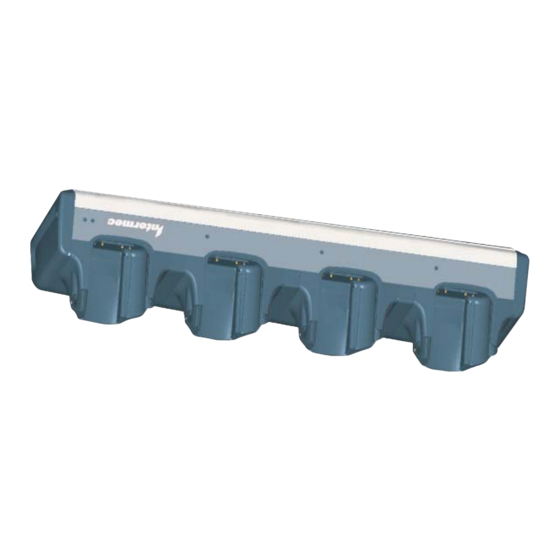

The AC2 4-Bay Charging Dock (P/N 852-905-XXX) is an accessory for the CK30 and
CK31 Handheld Computers. You can use the charging dock to:
•
power four CK30s or CK31s at one time.
•
charge the battery while it is in a CK30 or CK31.
This guide explains how to install and use the charging dock.
What You Need
To use the charging dock, you need:
•
an AC power supply (Model 073573).
•
an AC power cord.
You need to purchase the appropriate power cord for your location. For more
information, contact your Intermec sales representative.
You must use the appropriate Intermec power supply with this device or
equipment damage may occur.
Charging 4-Bay AC2
What Is the AC2?
patents foreign and U.S. other be may
5,195,183; 5,052,943; patents: following
Information Patent
Where to Find More Information
You may need additional information when working with the AC2 and CK30 or CK31
in a data collection system. Please visit our web site at www.intermec.com to
download PDF files of our current manuals. To order printed versions of the
Intermec manuals, contact your local Intermec representative or distributor.
x 12V 4A
Electrical ratings:
Requires Intermec AC power supply (Model 073573)
~100 to 240 VAC, 50-60 Hz
To prevent fire or electric shock, do not expose the AC2 to rain or
moisture.
073406-005
*073406-005*
Guide Start Quick Dock Charging
There 5,644,471. 5,544,010; 5,331,580;
the of more or one by covered
P/N
4-Bay AC2
pending.
5,317,691;
is Product
