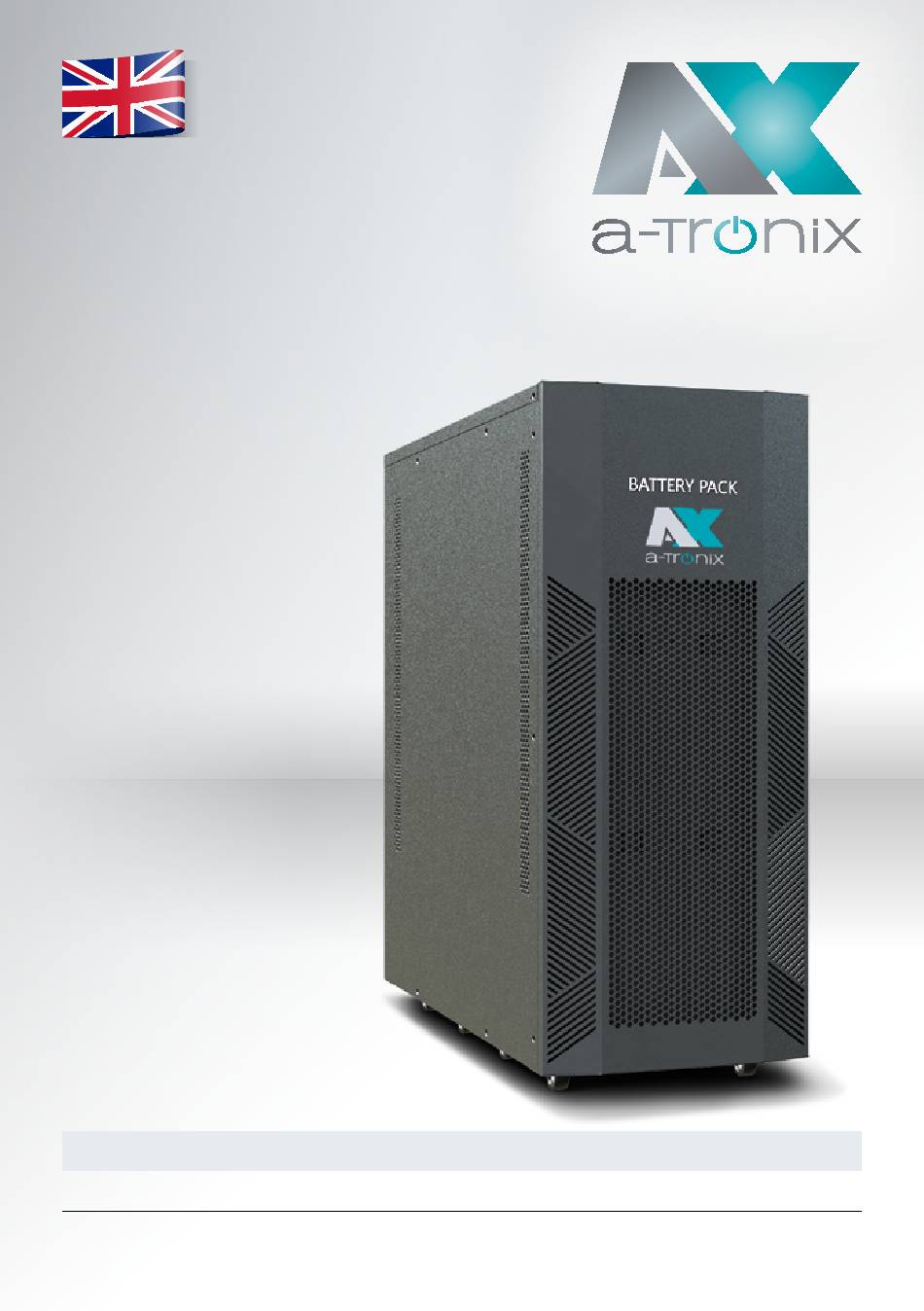

- Page 1 EXTENDED BATTERY PACK User Manual 6kVA, 10kVA Tower UPS Model Article number a-TroniX Extended Battery Pack Pro 9885163 09/2021 Page 1...
- Page 2 Thank you very much, for purchasing our a-TroniX series Extended Battery Pack (EBP). It can be added to the a-TroniX series UPS to extend it to extremely high autonomy times. Up to four battery cabinets can be installed. Read carefully before use! Read this manual carefully before installation.
-
Page 3: Table Of Contents
User Manual Extended Battery Pack 6kVA, 10kVA Table of contents Page 1. Important safety instructions 2. Symbols and abbreviations used in this guide 3. Installation 3.1. Inspecting the Equipment 3.2 Battery installation 3.3 Installing and connecting the batteries 3.4 Installing the optional battery cabinet 4. -
Page 4: Important Safety Instructions
User Manual Extended Battery Pack 6kVA, 10kVA 1. Important safety instructions This manual contains important notes and instructions that you must observe when installing and maintaining your battery cabinet. Be sure to observe all warnings and instructions in this manual before operating the unit and keep this manual for future reference. -
Page 5: Symbols And Abbreviations Used In This Guide
User Manual Extended Battery Pack 6kVA, 10kVA 2. Symbols and abbreviations used in this guide Accumulators are usually used as an energy storage for a UPS system (Uninterruptible Power Supply). These are also colloquially referred to as accumulators or batteries. Battery cabinets are abbreviated as EBPs. -
Page 6: Installation
Check the accessories against the packing list and contact the dealer if any ■ parts are missing. Accessories includes: a-TroniX battery cabinet, operating instructions, mains cable, battery cabinet connection cable and battery connector. 3.2. Battery installation NOTE: The unit and the batteries are heavy. - Page 7 User Manual Extended Battery Pack 6kVA, 10kVA Remove the cover of the battery cabinet to be able to install the batteries and connect the battery cables (see figure 2): figure 2 09/2021 Page 7...
-
Page 8: Installing And Connecting The Batteries
User Manual Extended Battery Pack 6kVA, 10kVA 3.3. Installing and connecting the batteries 40/36/32 pieces of batteries can be selected to divide them into two strings that are connected in parallel for operation. Each string has 20/18/16 batteries in series (BAT+ N BAT -). The installations of the three voltage types are described as follows: Instructions for installing and connecting 40 pieces of batteries: Insert the batteries one after the other from bottom to top and then connect the battery... - Page 9 User Manual Extended Battery Pack 6kVA, 10kVA Instructions for installing and connecting 36 pieces of batteries: Insert the batteries one after the other from bottom to top and then connect the battery cables according to the following wiring diagram. Wiring diagram for the installation of 36 batteries 09/2021 Page 9...
- Page 10 User Manual Extended Battery Pack 6kVA, 10kVA Instructions for installing and connecting 32 pieces of batteries: Insert the batteries one after the other from bottom to top and then connect the battery cables according to the following wiring diagram. Wiring diagram for the installation of 32 batteries When the installation and connection of the batteries is complete, use a multimeter or other approved tester to check that the voltages between BAT+ and N, N and BAT- are correct.
-
Page 11: Installing The Optional Battery Cabinet
User Manual Extended Battery Pack 6kVA, 10kVA 3.4. Installing the optional battery cabinet 1. Figure 3 shows the connection between the UPS and the battery cabinet. CAUTION: A small amount of arcing may occur when connecting an EBP to the UPS. This is normal and will not harm personnel. -
Page 12: Maintenance
User Manual Extended Battery Pack 6kVA, 10kVA 4. Maintenance 4.1. Replacing the batteries NOTE: DO NOT disconnect the battery while the UPS is in battery mode. THE EBP can be replaced when the UPS in ON, but be aware that if the utility fails at that time, the load of the UPS may NOT be protected. -
Page 13: Replacing Tower Extended Battery Packs
User Manual Extended Battery Pack 6kVA, 10kVA 4.2. Replacing Tower Extended Battery Packs CAUTION: The EBP is heavy. Lifting the cabinet requires a minimum of two people. Replace the EBPs: Unplug the EBP cable from the UPS. If additional EBPs are installed, ■... - Page 14 Other manufacturers and product ranges you will find in our AKKU SYS complete catalogue: Go to our catalogue: AKKU SYS Akkumulator- und Batterietechnik Nord GmbH Verbindungsweg 23 · 25469 Halstenbek / Hamburg · GERMANY Tel. +49 4101 | 3 76 76-0 / Fax +49 4101 | 3 76 76-66 / info@akkusys.de / www.akkusys.de Page 14 09/2021...
