- Page 1 ONLINE UPS Installation and Operating Instructions a-TroniX UPS Edition One 1kVA, 2kVA, 3kVA Model Capacity (VA) Article number a-TroniX UPS Edition One 1kVA 1000 9884900 a-TroniX UPS Edition One 2kVA 2000 9885105 a-TroniX UPS Edition One 3kVA 3000 9885106 09/2021...
- Page 2 With the a-Tronix Series Edition One, your installations are safely protected from power supply problems and the functionality of your equipment is maintained. Read carefully before use Read this manual carefully before installation.
-
Page 3: Table Of Contents
Installation and Operating Instructions UPS Edition One 1kVA, 2kVA, 3kVA Table of Contents Page 1. Important Safety Warning 1.1 Symbols used in this guide 1.2 Transportation 1.3 Preparation 1.4 Installation 1.5 Operation 1.6 Maintenance, service and faults 1.7 Handling of batteries 2. -
Page 4: Important Safety Warning
Installation and Operating Instructions UPS Edition One 1kVA, 2kVA, 3kVA 1. Important Safety Warning Be sure to observe all warnings and operating instructions in this manual. Keep this manual in a safe place and read the following instructions carefully before installing and operating the unit. -
Page 5: Symbols Used In This Guide
Installation and Operating Instructions UPS Edition One 1kVA, 2kVA, 3kVA 1.1 Symbols used in this guide In these operating instructions, the abbreviation UPS stands for: Uninterruptible Power Supply. Accumulators are usually used as energy storage for a UPS system. These are also colloquially referred to as accumulators or batteries. -
Page 6: Preparation
Installation and Operating Instructions UPS Edition One 1kVA, 2kVA, 3kVA 1.3 Preparation If the UPS system is brought directly from a cold to a warm environment, ■ condensation may occur. The UPS system must be absolutely dry before it is installed. Please allow at least 2 hours for the UPS to acclimatise to the environment. -
Page 7: Operation
Installation and Operating Instructions UPS Edition One 1kVA, 2kVA, 3kVA 1.5 Operation Do not disconnect the mains cable from the UPS system or the socket outlet ■ of the house installation (earthed socket outlet) during operation. This will cancel the protective earthing of the UPS system and all connected loads. -
Page 8: Handling Of Batteries
Installation and Operating Instructions UPS Edition One 1kVA, 2kVA, 3kVA 1.7 Handling of batteries When changing batteries, always insert the same number and type of ■ batteries. Batteries or their connections can cause electric shocks. ■ If short circuits occur on accumulators, touching the live parts can cause ■... -
Page 9: Installation And Setup

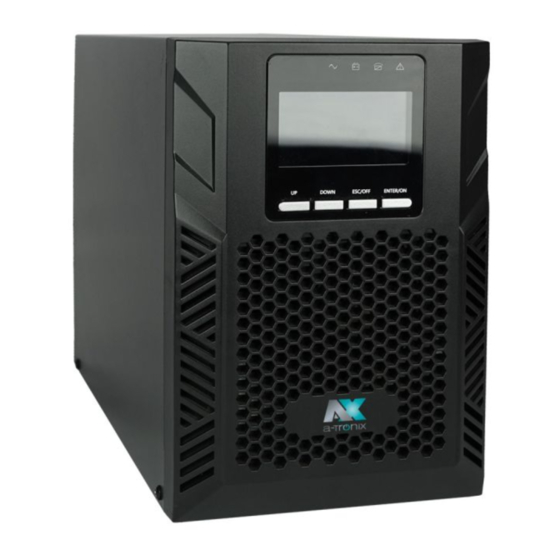

UPS user manual, software suite CD, USB cable, Mains cable (input and output), RS232 cable. 2.2 Device view Nameplate On the type plate of the UPS you will find the following information: Example: a-tronix UPS Editon One 1 kVA – Model: the serial number ■ the model ■... - Page 10 Installation and Operating Instructions UPS Edition One 1kVA, 2kVA, 3kVA Front view Example Edition One 1kVA Example Edition One 2kVA Page 10 09/2021...
- Page 11 Installation and Operating Instructions UPS Edition One 1kVA, 2kVA, 3kVA Rear view Example Edition One 1kVA Example Edition One 2kVA Edition One 1kVA, 2kVA, 3kVA (1) EPO-connection (EMERGENCY POWER OFF) (2) Expansion module slot (Intelligent Slot) (3) External battery bank connection...
-
Page 12: Setup The Uaps
Installation and Operating Instructions UPS Edition One 1kVA, 2kVA, 3kVA 2.3 Setup the UPS Step 1: Battery installation (internal) Example 1kVA Before you switch on the UPS, you must equip it with batteries according to the specification. To do this, please proceed as follows:... - Page 13 Installation and Operating Instructions UPS Edition One 1kVA, 2kVA, 3kVA Step 4: Communication link Communication port: To allow for unattended UPS shutdown/start-up and status monitoring, connect the communication cable one end to the USB/RS-232 port and the other to the communication port of your PC.
-
Page 14: Ups Start Up And Turn Off
Installation and Operating Instructions UPS Edition One 1kVA, 2kVA, 3kVA Step 7: External battery connection If your UPS is not including batteries: Please connect external batteries as below chart: to external battery For a detailed description, please refer to the operating instructions for our a-TroniX series extended battery pack. - Page 15 Installation and Operating Instructions UPS Edition One 1kVA, 2kVA, 3kVA (2) Turn on the UPS by DC without mains power. a) When mains power is disconnected, press and hold the ON key for more than half a second to start UPS.
- Page 16 Installation and Operating Instructions UPS Edition One 1kVA, 2kVA, 3kVA LCD control panel introduction (1) LED (from right to left: „alarm“, „bypass“, „battery“, „inverter“) (2) On-Line UPS LCD display (3) Function keys LED Indicator Indicator Description On – The UPS has an active alarm or fault.
- Page 17 Installation and Operating Instructions UPS Edition One 1kVA, 2kVA, 3kVA Function Keys Function Key Description ESC / OFF To turn off the ups or exit setting mode without save To turn off the ups or exit setting mode without save...
- Page 18 Installation and Operating Instructions UPS Edition One 1kVA, 2kVA, 3kVA Icon Function description Configuration Program and Fault Information Indicates the setting programs. Indicates the warning and fault codes. Warning: flashing with warning code Fault: lighting with fault code Output Information Indicate output voltage, output frequency, load percent, load in VA, load in Watt and discharging current.
-
Page 19: Operations
Installation and Operating Instructions UPS Edition One 1kVA, 2kVA, 3kVA 3. Operations 3.1 Button operation Button Function Turn on the UPS: ■ Press and hold ON button for at least 2 seconds to turn on the UPS. Confirm current settings: ■... -
Page 20: Lcd Display
Installation and Operating Instructions UPS Edition One 1kVA, 2kVA, 3kVA 3.2 LCD display There are 8 interfaces available in the LCD display: Item Interface Description Content Displayed Input voltage & Output voltage Input frequency & Output frequency Battery voltage &... - Page 21 Installation and Operating Instructions UPS Edition One 1kVA, 2kVA, 3kVA Item Interface Description Content Displayed Environment Temperature UPS model Firmware Version Alarm Code (Warming Message) All alarm codes are present when abnormal behavior(s) occur(s) 09/2021 Page 21...
-
Page 22: Ups Setting
Installation and Operating Instructions UPS Edition One 1kVA, 2kVA, 3kVA 3.3 UPS settings The UPS has setting functions. This user settings can be done under any kind of UPS working mode. The setting will take effect under certain condition. Below table describes how to set the UPS. - Page 23 Installation and Operating Instructions UPS Edition One 1kVA, 2kVA, 3kVA Item Interface Description Content Displayed Output voltage setting Press Enter button to change the setting (208, 220, 230, 240). Press UP▲button to select the previous setting. Press DOWN▼button to select the next setting.
- Page 24 Installation and Operating Instructions UPS Edition One 1kVA, 2kVA, 3kVA Item Interface Description Content Displayed Bypass voltage upper limit setting Press Enter button to change the setting (The bypass voltage upper limit range is 230–264 Vac). Press UP▲button to select the previous setting.
-
Page 25: Operational Status And Mode(S)
Installation and Operating Instructions UPS Edition One 1kVA, 2kVA, 3kVA 3.4 Operational Status and Mode(s) Item Content Displayed Item Content Displayed Inverter is starting up Standby Mode ECO Mode No Output EPO Mode Bypass Mode Maintenance Bypass Mode Utility Mode... -
Page 26: Troubleshooting
Installation and Operating Instructions UPS Edition One 1kVA, 2kVA, 3kVA 4. Troubleshooting If the UPS system does not operate correctly, please solve the problem by using the Troubleshooting Chart: Symptom Possible cause Remedy No indication and alarm The AC input power is not... -
Page 27: Storage And Maintenance
Installation and Operating Instructions UPS Edition One 1kVA, 2kVA, 3kVA 5. Storage and Maintenance Operation The UPS system does not contain any user-serviceable parts. When the battery life is exceeded, the batteries must be replaced. In this case, please contact your dealer. -
Page 28: Options
Installation and Operating Instructions UPS Edition One 1kVA, 2kVA, 3kVA 6. Options SNMP-Card: The SNMP card integrates the UPS into a network. After assigning its own IP address, the UPS can be accessed from any location, which is particularly interesting for remote administration/maintenance of the system. - Page 29 Installation and Operating Instructions UPS Edition One 1kVA, 2kVA, 3kVA Emergency Power Off (EPO) EPO is used to shut down the UPS remotely. This function can be used to shut down the load and the UPS through a thermal relay, e.g. in case of room overtemperature.
- Page 30 Installation and Operating Instructions UPS Edition One 1kVA, 2kVA, 3kVA Extended Battery Pack Every UPS system requires an energy storage device to supply the loads with stored energy during a power failure. Extended Battery Packs are used either as the sole energy storage device or as a supplement to the internal battery bank in order to achieve an extension of the autonomy time and/or to adapt to the required load conditions.
-
Page 31: Specification
Installation and Operating Instructions UPS Edition One 1kVA, 2kVA, 3kVA 7. Specification UPS Edition One Model 1 kVA 2 kVA 3 kVA Capacity Phases Capacity (KVA) Capacity (W) 1000 2000 3000 Power factor output (cos phi) Transfer time (ms) Mains mode to battery mode: 0 ms... - Page 32 Other manufacturers and product ranges you will find in our AKKU SYS complete catalogue: Go to our catalogue: AKKU SYS Akkumulator- und Batterietechnik Nord GmbH Verbindungsweg 23 · 25469 Halstenbek / Hamburg · GERMANY Tel. +49 4101 | 3 76 76-0 / Fax +49 4101 | 3 76 76-66 / info@akkusys.de / www.akkusys.de 09/2021...
