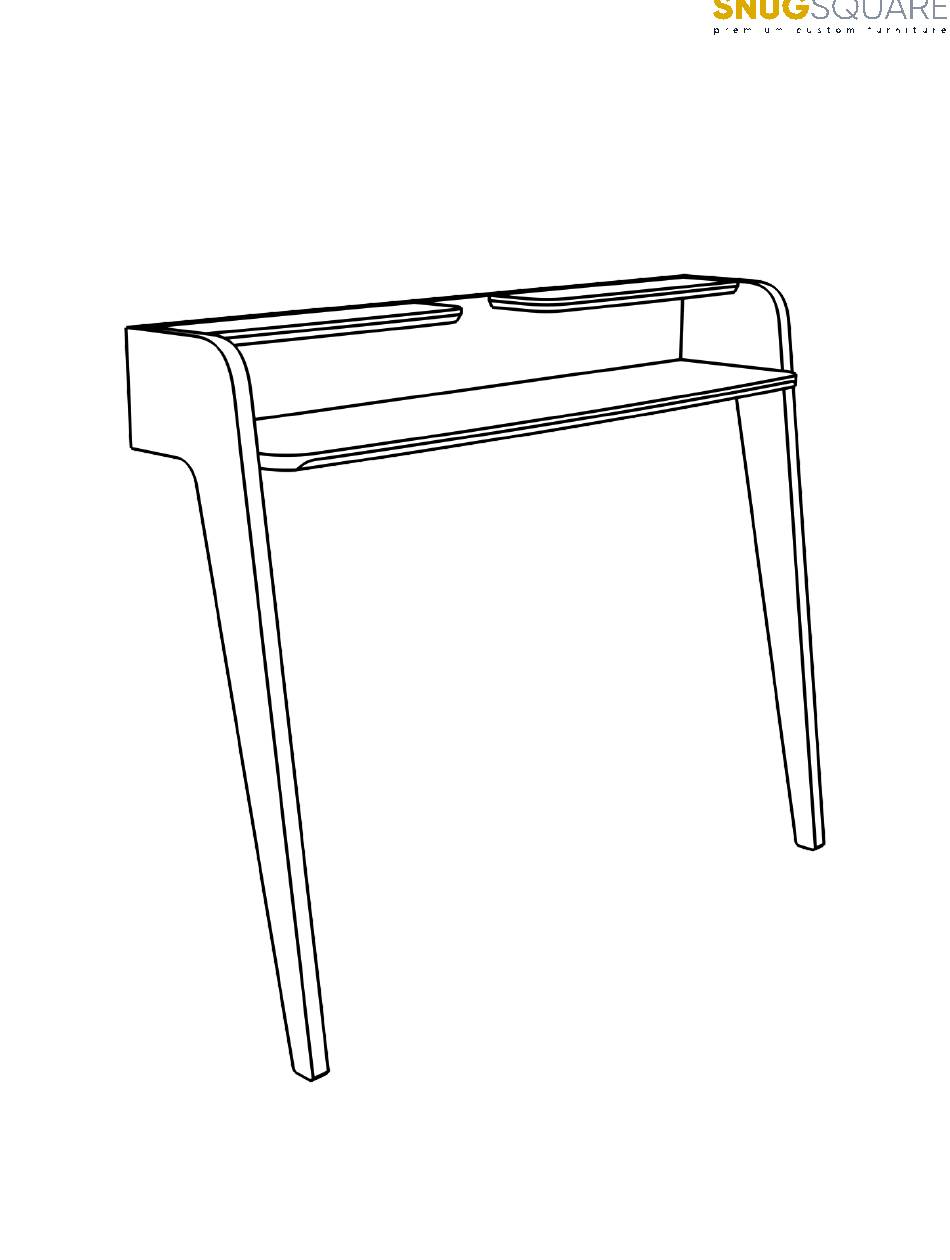

- Page 1 JORN CONSOLE...
- Page 2 Gather Your Eggs... Shelves (Large or Small) Back Left Leg Right Leg 2x Mounting Screws 13x Bolts Drill + Extension 2x Drywall Anchors Hex Bit with Ball End Mounting Template Note: Please retain all boxes until you are certain that your product isn’t damaged and that you do not wish to return it.
- Page 3 Step 1: Attach Bottom Shelf to Back Panel Place Bottom Shelf pocket side down. Take back panel with mounting hole facing out. Align bottom holes and screw in bottom 3 bolts. Step 2: Attach Top Shelves to Back Panel Grab your shelves (Large or small depending on your custom order).
- Page 4 Step 3: Attach First Leg Rotate unit onto back. Grab the Right Leg and align the holes on the interior of the leg with the pocket holes on the shelf and top. Insert bolts into each hole and tighten. Upper Shelf Table Top Step 4: Attach Second Leg Repeat Step 3...
- Page 5 Step 5A: Wall Mount Prep: Measure N ex t you want to sec u re yo ur co nso le to wa ll. It is not a dvised to use th is product wi th o u t sa fe ly a n ch o r in g to the wall. First decide where would like to place your Console and locate your center.
- Page 6 Step 5B: Wall Mount Prep: Drill Using a 1/4” Drill bit, drill a hole on the 2 crosshairs and gently remove our template Step 5C: Wall Mount Prep: Hammer Using a hammer, gently insert the drywall anchor into your drilled hole, making sure the shoulder of the anchor is flush with the wall surface.
- Page 7 Step 6: Mount to the Wall Wall Rear of Unit Keyhole Opening Side view With the back of your console facing the wall, Lift the unit slightly and place the head of the drywall screws into the bottom opening of the keyholes on the back. Press the console against the wall and slide it down onto the screw until the feet touch the floor.
