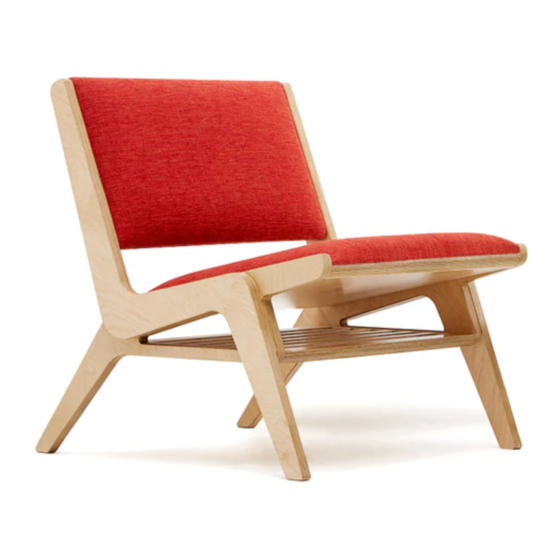

EDGAR LOUNGE CHAIR

Need help?

Do you have a question about the EDGAR LOUNGE CHAIR and is the answer not in the manual?

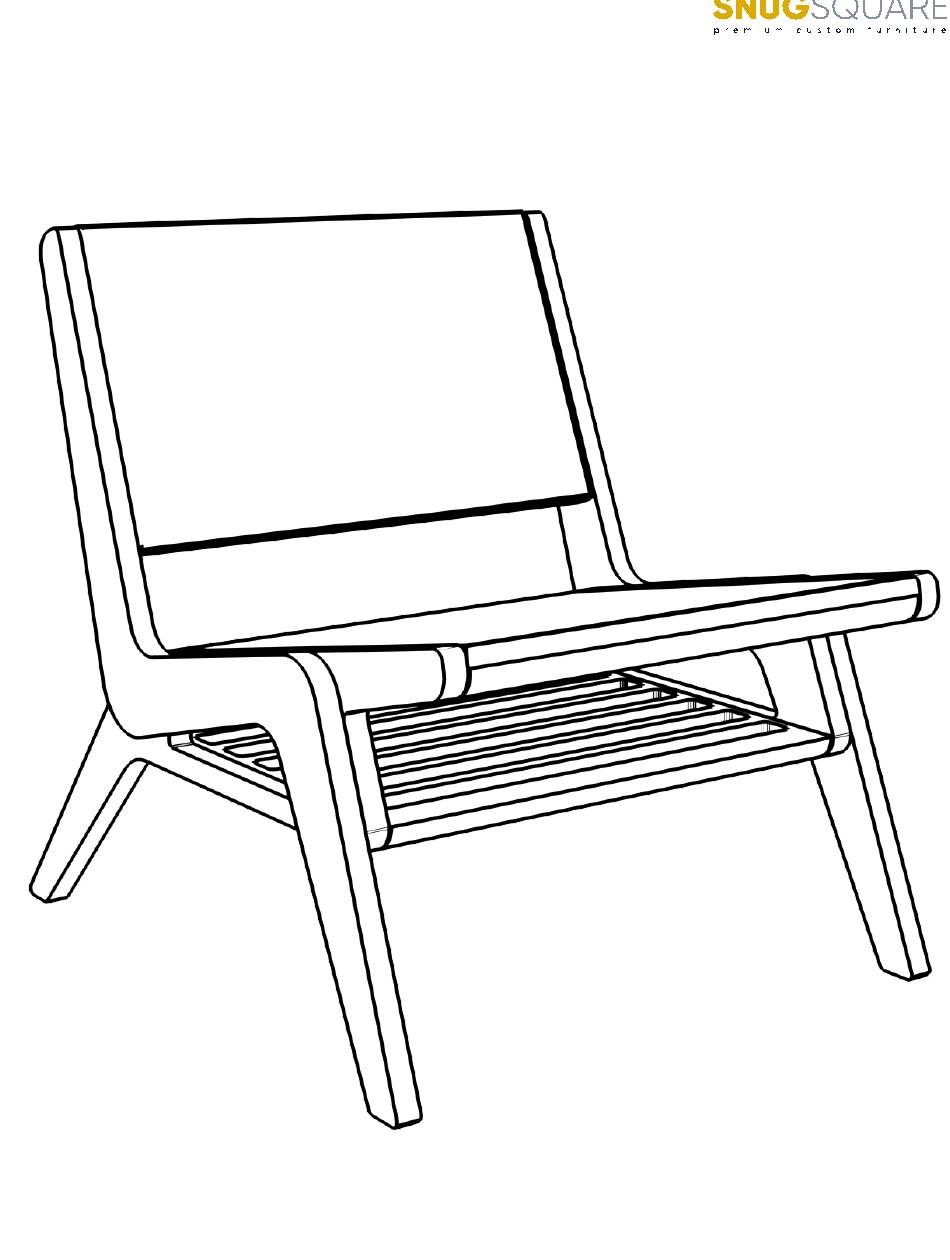

Page 1 EDGAR LOUNGE CHAIR...
Page 2 Gather Your Eggs... Back Panel Back Cushion 2x Legs Support Shelf Seat Panel Seat Cushion More Eggs... 8x Long Bolts 6x Short Bolts Drill + Extension Hex Bit with Ball End Note: Please retain all boxes until you are certain that your product isn’t damaged and that you do not wish to return it.
Page 3 Step 1: Attach the Seat Panel Place your ﬁrst leg down with the holes facing up. Align the corresponding holes in the seat panel with those on the leg. Use a short bolt in the front hole, and long bolts for the other 2 holes.
Page 4 Step 3: Attach the Support Shelf Align the support shelf with the corresponding holes on the leg. Ensure that the shallow pockets are facing towards the bottom of the leg. Use 2 long bolts. Tighten each by hand.
Page 5 Step 4: Attach Other Leg Attach the second leg by aligning the holes on the seat and back panels with the corresponding holes on the leg. Insert bolts as in previous steps. Step 5: Add bolts to Support Shelf Repeat step 3 for the other side of the support slat.
Page 6 Step 6: Attach the Cushions Move your chair onto its feet. Attach the back and seat cushions to their panels. Velcro pads will hold the cushions in place. DONE...
